  • Ciare CMI320ND 12" Neodymium Midbass 4 Ohm

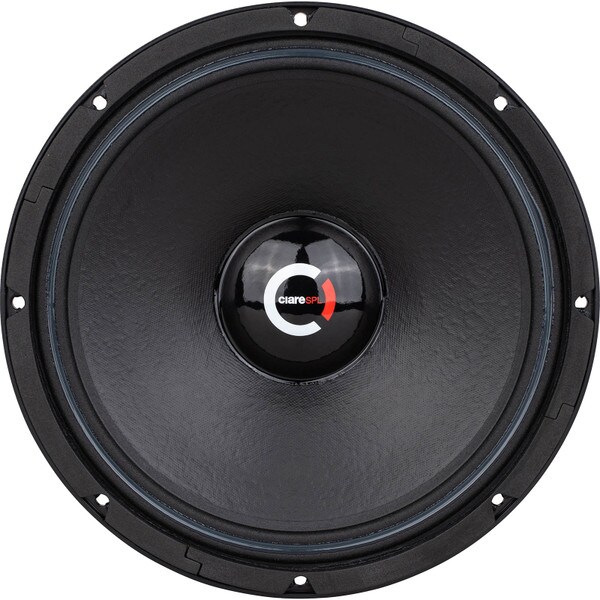

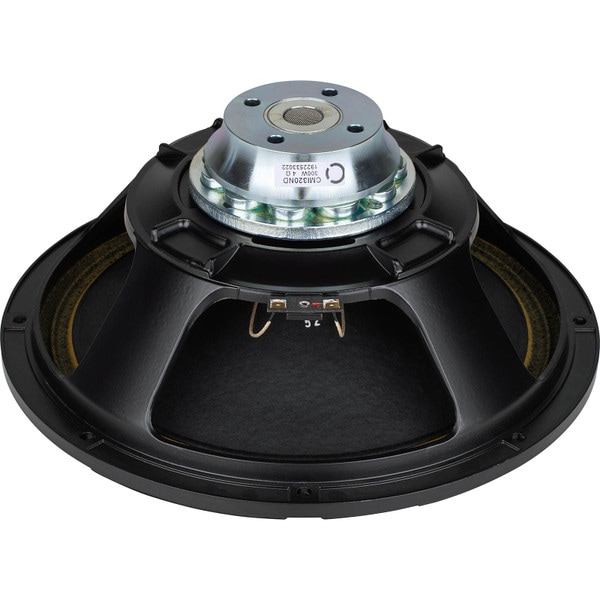

Ciare CMI320ND 12" Neodymium Midbass 4 Ohm

CiarePart # 293-134
Model: CMI320ND
3 Questions, 13 Answers or

The Ciare CMI320ND features a powerful neodymium magnet and a high-temperature voice coil that delivers exceptional performance, making it perfect for high-power applications. Its unique cone design, made from a lightweight yet rigid material, ensures accurate and detailed sound reproduction.

Key Features

  • Multi-array neodymium motor for higher Bl and above average sensitivity
  • Premium upgrade for car, boat, motorcycle, ATV and more
  • 2" voice coil for up to 220 watt power handling
Your Price: $255.27
+ FREE SHIPPING
MSRP: $340.36
Save $85.09 (25%)
Bulk Pricing
1 In Stock
Get Notified When Available

We'll send you an email when Ciare CMI320ND 12" Neodymium Midbass 4 Ohm is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Ciare CMI320ND 12" Neodymium Midbass 4 Ohm

Introducing the Ciare CMI320ND, the 12-inch neodymium midbass driver that's designed to take your audio experience to the next level. With its lightweight construction and high-quality materials, this speaker is engineered to deliver outstanding sound clarity and precision.

With its excellent sensitivity and frequency response, the CMI320ND produces rich, clear mid-bass frequencies that are ideal for a variety of applications, from home theaters to professional sound systems. Plus, its compact and lightweight design makes it easy to transport and install.

Installation is a breeze thanks to the CMI320ND's standard mounting options, and the speaker is compatible with a wide range of enclosures. Its sleek and modern design also ensures it looks great in any setting, whether it's a professional sound system or a custom home theater setup.

Overall, the Ciare CMI320ND is a top-of-the-line midbass driver that offers exceptional performance, durability, and versatility. Upgrade your sound system today with the CMI320ND and experience audio like never before.

Product Details

BrandCiare
ModelCMI320ND
Part Number293-134
UPC848864073156
Unit of MeasureEach
Weight7.45

Product Specifications

Nominal Diameter12"
Bolt Circle Diameter11.61
Power Handling (RMS)220 Watts
Power Handling (MAX)450 Watts
Impedance4Ω
Frequency Response50 to 4,000Hz
Sensitivity100.5dB 2.83V/1m
Voice Coil Diameter2"

Thiele-Small Parameters

Resonant Frequency (Fs)53Hz
DC Resistance (Re)2.8Ω
Voice Coil Inductance (Le)0.6mH
Mechanical Q (Qms)13.5
Electromagnetic Q (Qes)0.44
Total Q (Qts)0.43
Compliance Equivalent Volume (Vas)2.47ft³
BL Product (BL)10.6T·m
Diaphragm Mass Inc. Airload (Mms)54g
Maximum Linear Excursion (Xmax)5mm
Surface Area of Cone (Sd)547cm²

Materials of Construction

Cone MaterialTreated Paper
Surround MaterialCloth
Voice Coil Wire MaterialCopper
Voice Coil FormerFiberglass
Basket / Frame MaterialCast Aluminum
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter12.4"
Baffle Cutout Diameter11.1"
Depth5.31"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume1ft³
Sealed F398.1Hz
Vented Volume2.375ft³
Vented F352.2Hz
