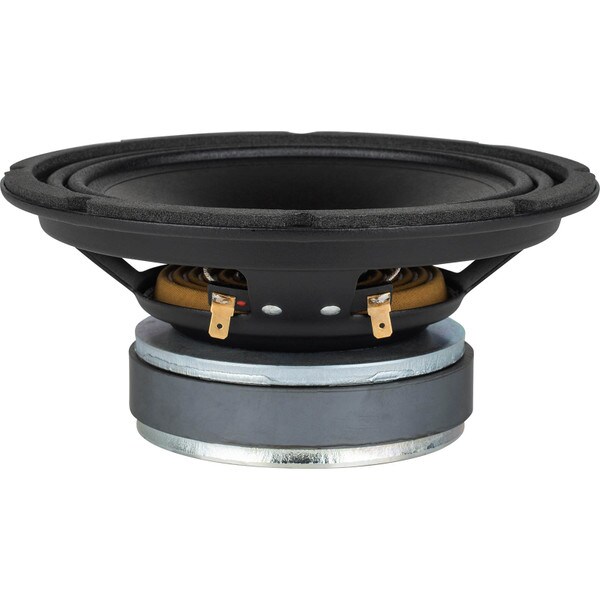

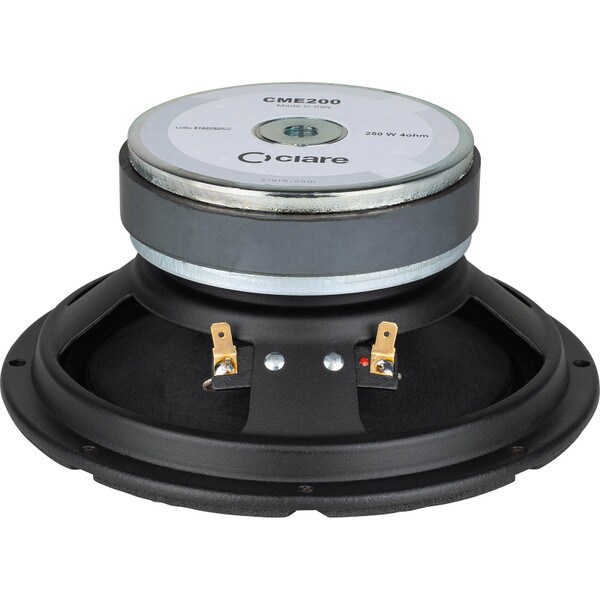

Ciare CME200 8" Woofer 4 Ohm

Ciare
Part #293-114

Ciare CME200 8" Woofer 4 Ohm

Ciare
Part #293-114
Model: CME200

The Ciare CME200 solid build quality and advanced construction ensure that this woofer can handle high volumes without distortion, making it perfect for use in a wide range of applications. Its compact and efficient design makes it perfect for use in small to medium-sized speakers, as well as in automotive and marine audio systems.

Key Features
  • Oversized ferrite motor for higher Bl and above average sensitivity
  • 1.5" voice coil for up to 200 watt power handling
  • Premium upgrade for car, boat, motorcycle, ATV and more
Your Price: $87.45
MSRP: $116.61
Save $29.16 (25%)
Bulk Pricing
Ships next business day. Details

2In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Ciare CME200 8" Woofer 4 Ohm

The Ciare CME200 8" Woofer is a high-quality driver designed to deliver exceptional sound quality and power handling capabilities. Featuring an 8" cone and a 4 Ohm impedance, this woofer provides an impressive frequency response range of 50Hz-4kHz, ensuring clear and accurate sound reproduction across the entire audio spectrum.

The CME200's sleek and modern design makes it a perfect complement to any home or professional sound system. Its lightweight and compact size make it easy to install and incorporate into any audio setup.

Whether you're a DIY audio enthusiast or a professional sound engineer, the Ciare CME200 8" Woofer 4 Ohm is the perfect choice for any audio project that demands exceptional sound quality and power handling capabilities.

Product Details

BrandCiare
ModelCME200
Part Number293-114
UPC848864073057
Unit of MeasureEach
Weight6.25

Product Specifications

Nominal Diameter8"
Bolt Circle Diameter7.64
Power Handling (RMS)130 Watts
Power Handling (MAX)260 Watts
Impedance4Ω
Frequency Response70 to 8,000Hz
Sensitivity99.5dB 2.83V/1m
Voice Coil Diameter1.5"

Thiele-Small Parameters

Resonant Frequency (Fs)76Hz
DC Resistance (Re)3Ω
Voice Coil Inductance (Le)0.45mH
Mechanical Q (Qms)7
Electromagnetic Q (Qes)0.39
Total Q (Qts)0.37
Compliance Equivalent Volume (Vas)0.64ft³
BL Product (BL)7.3T·m
Diaphragm Mass Inc. Airload (Mms)14.2g
Maximum Linear Excursion (Xmax)3.5mm
Surface Area of Cone (Sd)206cm²

Materials of Construction

Cone MaterialTreated Paper
Surround MaterialCloth
Voice Coil Wire MaterialAluminum
Voice Coil FormerKapton® / Polyimide
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter8.11"
Baffle Cutout Diameter7.28"
Depth3.6"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.2ft³
Sealed F3162.8Hz
Vented Volume0.55ft³
Vented F380.4Hz
