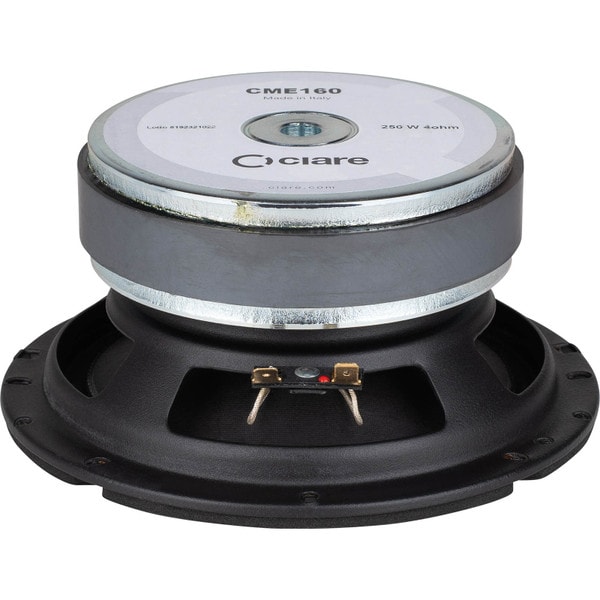

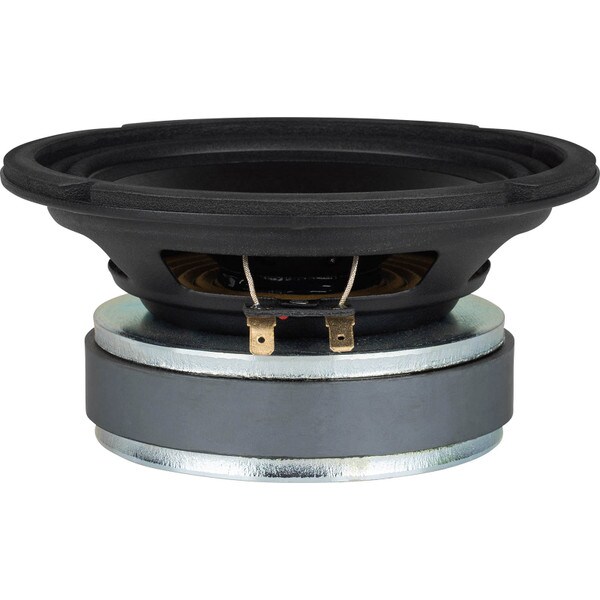

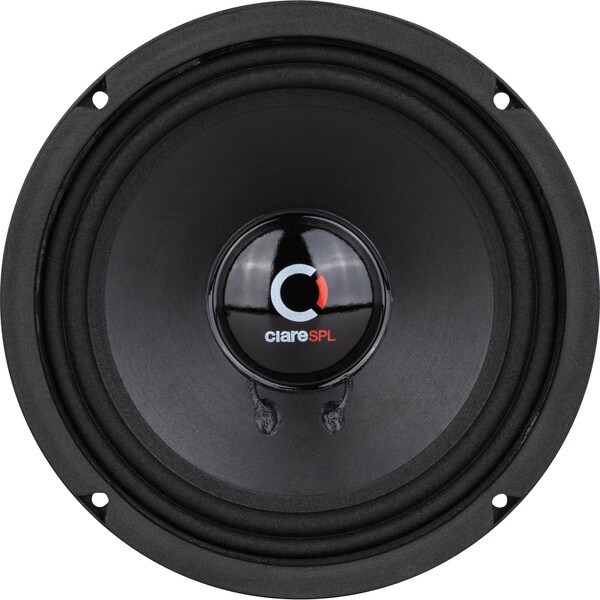

Ciare CME160 6.5" Woofer 4 Ohm

CiarePart # 293-112
Model: CME160
3 Questions, 13 Answers or

The CME160's sleek and modern design makes it a perfect complement to any home, car or professional sound system. Its lightweight and compact size make it easy to install and incorporate into any audio setup.

Key Features

  • Premium upgrade for car, boat, motorcycle, ATV and more
  • 1.5" voice coil for up to 200 watt power handling
  • Oversized ferrite motor for higher Bl and above average sensitivity
Your Price: $80.36
MSRP: $107.15
Save $26.79 (25%)
Bulk Pricing
2 In Stock
Get Notified When Available

We'll send you an email when Ciare CME160 6.5" Woofer 4 Ohm is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Ciare CME160 6.5" Woofer 4 Ohm

The Ciare CME160 6.5" Woofer 4 Ohm is a high-quality driver designed to deliver exceptional sound quality and power handling capabilities. Featuring a 6.5-inch cone diaphragm and a 4 Ohm impedance, this woofer provides an impressive frequency response of 60Hz-5kHz, ensuring clear and accurate sound reproduction across the entire audio spectrum.

The CME160's solid build quality and advanced construction ensure that this woofer can handle high volumes without distortion, making it perfect for use in a wide range of applications. Its compact and efficient design makes it perfect for use in small to medium-sized speakers, as well as in automotive and marine audio systems.

Whether you're a DIY audio enthusiast or a professional sound engineer, the Ciare CME160 6.5" Woofer 4 Ohm is the perfect choice for any audio project that demands exceptional sound quality and power handling capabilities.

Product Details

BrandCiare
ModelCME160
Part Number293-112
UPC848864073040
Unit of MeasureEach
Weight5.8

Product Specifications

Nominal Diameter6-1/2"
Bolt Circle Diameter6.14
Power Handling (RMS)130 Watts
Power Handling (MAX)260 Watts
Impedance4Ω
Frequency Response100 to 6,000Hz
Sensitivity97.5dB 2.83V/1m
Voice Coil Diameter1.5"

Thiele-Small Parameters

Resonant Frequency (Fs)110Hz
DC Resistance (Re)3.2Ω
Voice Coil Inductance (Le)0.3mH
Mechanical Q (Qms)3.2
Electromagnetic Q (Qes)0.45
Total Q (Qts)0.4
Compliance Equivalent Volume (Vas)0.16ft³
BL Product (BL)7.6T·m
Diaphragm Mass Inc. Airload (Mms)11.5g
Maximum Linear Excursion (Xmax)3.5mm
Surface Area of Cone (Sd)137cm²

Materials of Construction

Cone MaterialTreated Paper
Surround MaterialCloth
Voice Coil Wire MaterialAluminum
Voice Coil FormerKapton® / Polyimide
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter6.52"
Baffle Cutout Diameter5.59"
Depth3.15"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.1ft³
Sealed F3220.6Hz
Vented Volume0.15ft³
Vented F3113.3Hz
