  • Ciare 12.00SW-8 12" High Power Subwoofer 8 Ohm

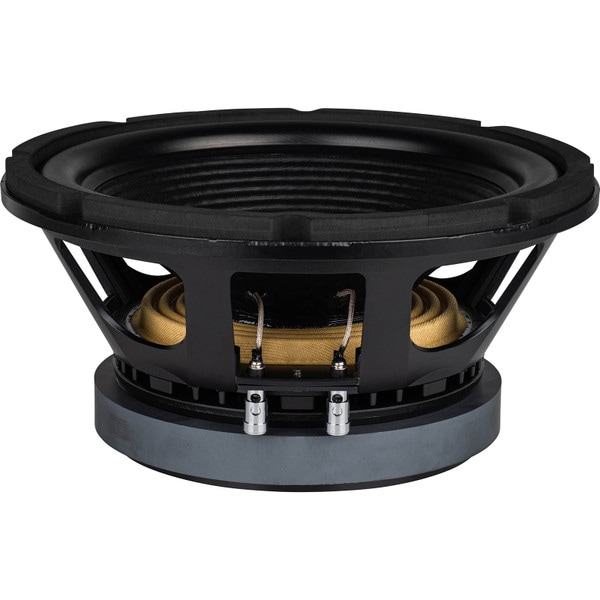

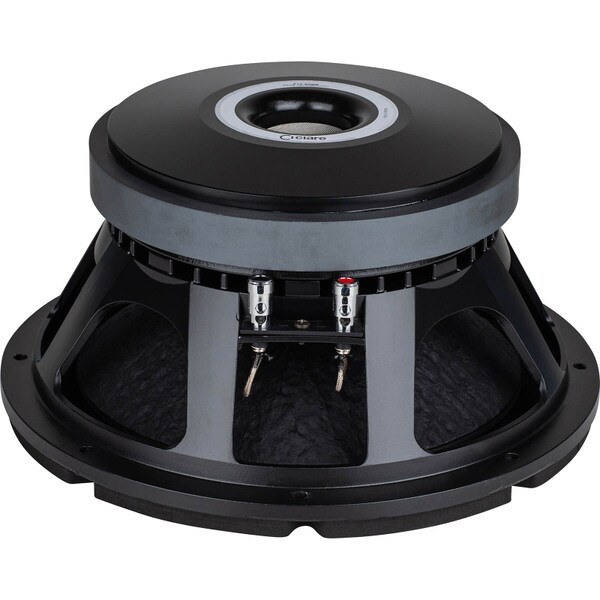

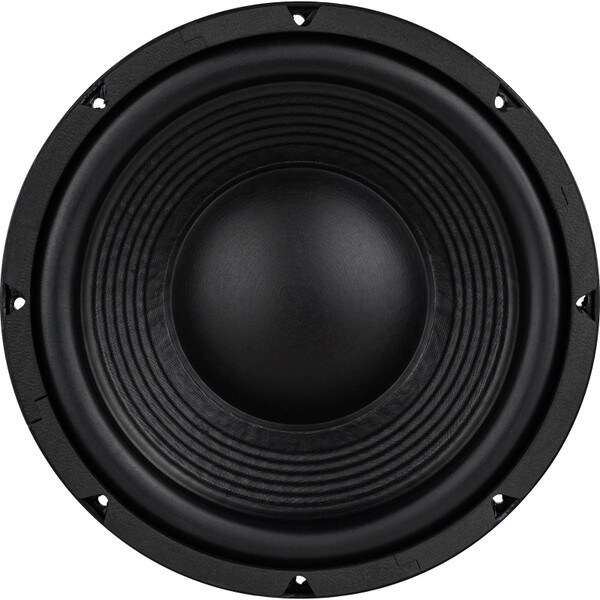

Ciare 12.00SW-8 12" High Power Subwoofer 8 Ohm

CiarePart # 293-164
Model: 12.00SW-8
2 Questions, 2 Answers or

Featuring a high-power 4 ohm voice coil, the Ciare 12.00SW-8 can handle up to 1000 watts of continuous power, making it ideal for use in high-output, professional-grade sound systems. The subwoofer also features a high-excursion design, allowing it to move large amounts of air and produce deep, impactful bass tones.

Key Features

  • Designed for ultimate output and durability
  • Large 4" diameter voice coil for 1,000 watt power handling
  • High 14mm Xmax for added bass extension
Your Price: $399.45
+ FREE SHIPPING
MSRP: $532.61
Save $133.16 (25%)
Bulk Pricing
In Stock
Get Notified When Available

We'll send you an email when Ciare 12.00SW-8 12" High Power Subwoofer 8 Ohm is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Ciare 12.00SW-8 12" High Power Subwoofer 8 Ohm

Introducing the Ciare 12.00SW-8, a 12" high power subwoofer designed for the most demanding applications. With its robust construction and advanced features, this subwoofer delivers powerful, low-frequency output with exceptional clarity and accuracy.

To ensure long-lasting durability and reliability, the 12.00SW-8 is constructed using only the highest-quality materials, including a reinforced paper cone, large rubber surround, and heavy-duty steel frame. The subwoofer is also equipped with a vented pole piece and aluminum voice coil former, which help to dissipate heat and reduce power compression, ensuring maximum performance and efficiency.

Whether you're a professional sound engineer or a serious audio enthusiast, the Ciare 12.00SW-8 is the perfect choice for achieving powerful, high-quality bass in any sound system.

Product Details

BrandCiare
Model12.00SW-8
Part Number293-164
UPC848864075433
Unit of MeasureEach
Weight26

Product Specifications

Nominal Diameter12"
Bolt Circle Diameter11.61
Power Handling (RMS)1000 Watts
Power Handling (MAX)2000 Watts
Impedance8Ω
Frequency Response30 to 2,000Hz
Sensitivity89.5dB 2.83V/1m
Voice Coil Diameter4"

Thiele-Small Parameters

Resonant Frequency (Fs)30Hz
DC Resistance (Re)6.7Ω
Voice Coil Inductance (Le)2.35mH
Mechanical Q (Qms)6.1
Electromagnetic Q (Qes)0.36
Total Q (Qts)0.34
Compliance Equivalent Volume (Vas)2.08ft³
BL Product (BL)25.3T·m
Diaphragm Mass Inc. Airload (Mms)183g
Maximum Linear Excursion (Xmax)14mm
Surface Area of Cone (Sd)523cm²

Materials of Construction

Cone MaterialPaper-Treated Paper
Surround MaterialRubber
Voice Coil Wire MaterialCopper
Voice Coil FormerKapton® / Polyimide
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite

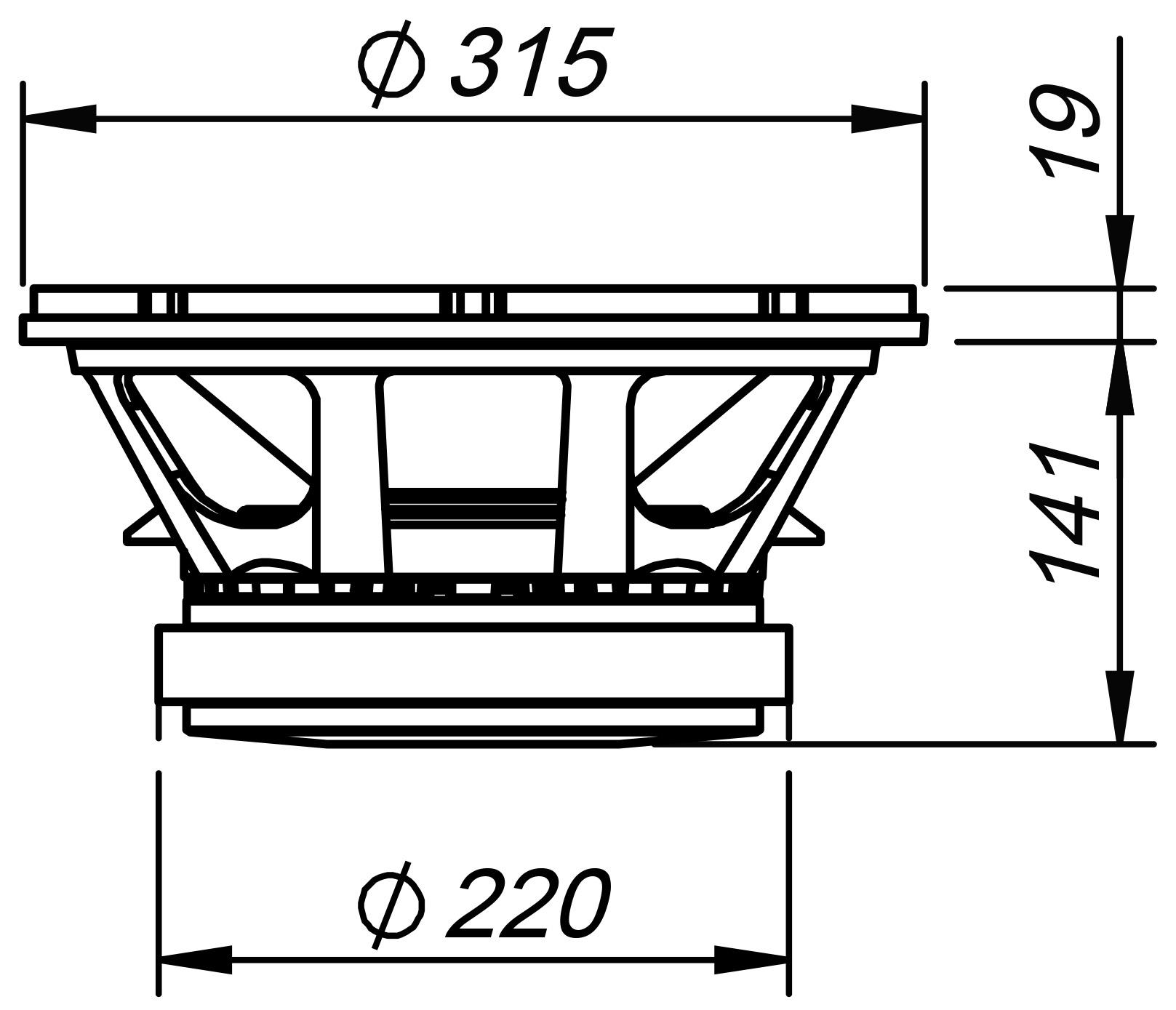

Mounting Information

Overall Outside Diameter12.4"
Baffle Cutout Diameter11.1"
Depth5.87"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.363ft³
Sealed F375.08Hz
Vented Volume0.92ft³
Vented F343.37Hz
