  • Celestion Truvox 0615 6.5" Midbass Woofer 8 Ohm

NEW Celestion Truvox 0615 6.5" Midbass Woofer 8 Ohm

CelestionPart # 294-2511
Model: Truvox 0615
Read 1 Review or

Celestion's Truvox is a line of a press-steel mid‑bass built for high‑quality performance at an affordable price. With versatile drop‑in compatibility and pro-grade durability, it rejuvenates the sound and restores the punch in your system. Compact yet powerful, Truvox woofers are suitable for 2-way, 3-way, bass guitar, and even car audio systems.

Key Features

  • Pressed steel chassis makes it the lightest in its class at just 3.5 lbs
  • 300 W continuous power handling for dependable performance
  • 93 dB sensitivity ensures loud, efficient sound with modest amp power
  • Kevlar‑loaded cone improves fidelity and reduces distortion
  • M‑shaped dual‑roll cloth surround enhances excursion control
  • Single vent aids cooling and sustains power delivery
  • Industry‑standard mounting fits PA cabinets, car doors, and more
NEW $49.95
MSRP: $74.90
Save $24.95 (33%)
Bulk Pricing
In Stock
Get Notified When Available

We'll send you an email when Celestion Truvox 0615 6.5" Midbass Woofer 8 Ohm is back in stock or available for preorder.

Order in the next 12 hr 38 min to ship today. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Celestion Truvox 0615 6.5" Midbass Woofer 8 Ohm

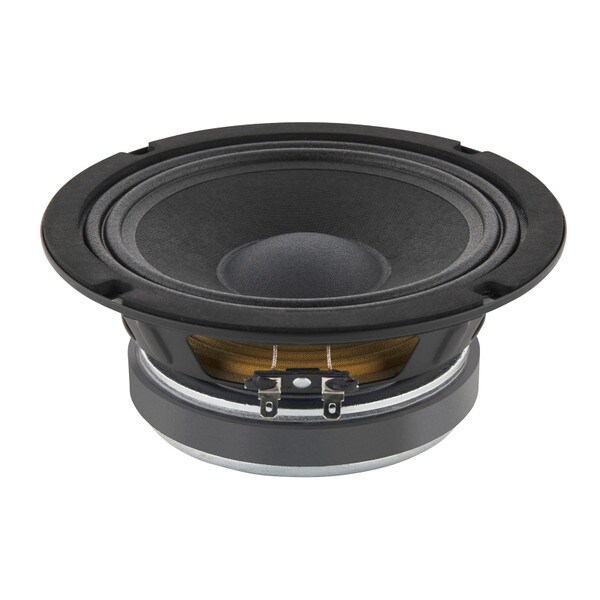

Celestion Truvox 0615 6.5" Midbass Woofer

The Truvox 0615 combines affordability with Celestion’s professional pedigree, offering 300 W continuous power and 93 dB sensitivity—all in a rugged 6.5″ package. Its pressed steel chassis keeps weight to a minimum (approx. 3.5lbs), makes installation easier, and places it among the lightest in its class.

The Kevlar‑loaded cone and dual‑roll cloth surround work together to provide clear, high‑fidelity mid‑bass, even at extreme excursion levels—with minimal distortion. A single vent behind the magnet ensures consistent air flow, aiding in cooling and stable performance during extended use.

Designed for easy integration, the 0615 follows industry‑standard mounting dimensions, making it a drop‑in replacement or upgrade for PA cabinets, bass amps, vehicle doors, and recessed wall mounts. With a 1.5″ copper voice coil and a robust build, the Truvox 0615 delivers clarity, punch, and longevity wherever you install it.

Frequency Response and Impedance Curves

Product Details

BrandCelestion
ModelTruvox 0615
Part Number294-2511
UPC739894665957
Unit of MeasureEach
Weight4

Product Specifications

Nominal Diameter6-1/2"
Power Handling (RMS)150 Watts
Power Handling (MAX)300 Watts
Impedance8Ω
Frequency Response80 to 50,000Hz
Sensitivity93dB 2.83V/1m
Voice Coil Diameter1.5"

Thiele-Small Parameters

Resonant Frequency (Fs)89.6Hz
DC Resistance (Re)5.59Ω
Voice Coil Inductance (Le)0.369mH
Mechanical Q (Qms)5.535
Electromagnetic Q (Qes)0.516
Total Q (Qts)0.472
Compliance Equivalent Volume (Vas)0.26ft³
Mechanical Compliance of Suspension (Cms)0.298mm/N
BL Product (BL)0.298T·m
Diaphragm Mass Inc. Airload (Mms)10.584g
Maximum Linear Excursion (Xmax)3.5mm
Surface Area of Cone (Sd)154.54cm²

Materials of Construction

Cone MaterialPaper / Kevlar
Surround MaterialCloth
Voice Coil Wire MaterialCopper
Voice Coil FormerKapton® / Polyimide
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter6.59"
Baffle Cutout Diameter5.65"
Depth2.6"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.106ft³
Sealed F3161.6Hz
Vented Volume0.347ft³
Vented F378.32Hz
