Bluetooth 5.0, FM, Media Player Faceplate 2 x 3W 5 VDC Amp Board

Parts ExpressPart # 320-6042
Read 2 Reviews or

Key Features

  • Bluetooth, FM radio, media player and 2 x 3W amplifier all built into one space saving board
  • Pre-assembled and pre-tested with back cover for easy project integration.
  • Power and charge with any micro-USB to USB-A cable (sold separately) into a USB powered port
  • Perfect for small desktop, portable audio projects using a Lithium Polymer battery with JST PH2.0 plug with the correct polarity
  • Support music in MP3 / WMA / WAV format; MP3 songs 32-320kbps, WAV / WMA is 1411kbps or below
  • Built-in microphone enables you to take calls when paired with Bluetooth smartphones
Your Price: $8.98
MSRP: $15.99
Save $7.01 (44%)
Bulk Pricing
In Stock
Get Notified When Available

We'll send you an email when Bluetooth 5.0, FM, Media Player Faceplate 2 x 3W 5 VDC Amp Board is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

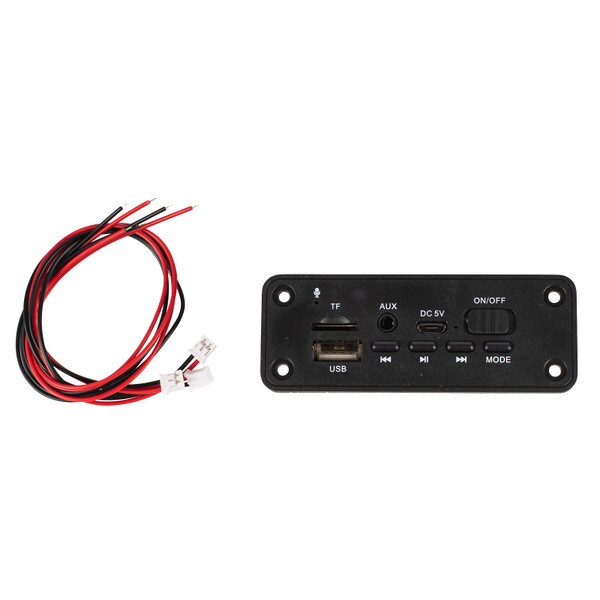

Bluetooth 5.0, FM, Media Player Faceplate 2 x 3W 5 VDC Amp Board

Multiple Music Sources for an Amplified Desktop Audio DIY Project

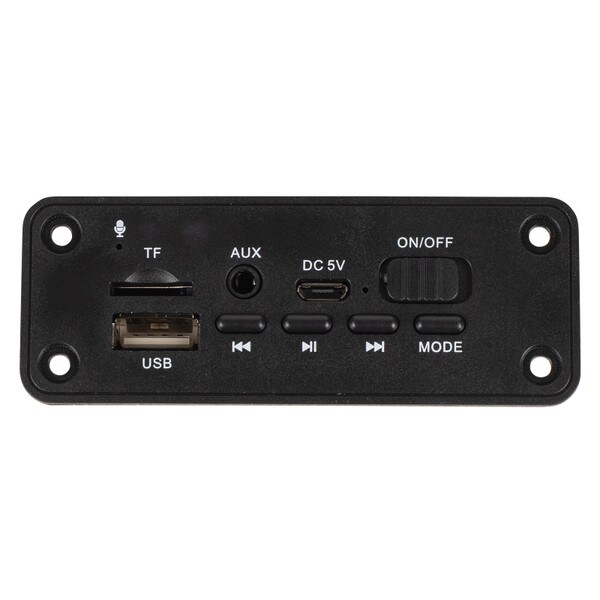

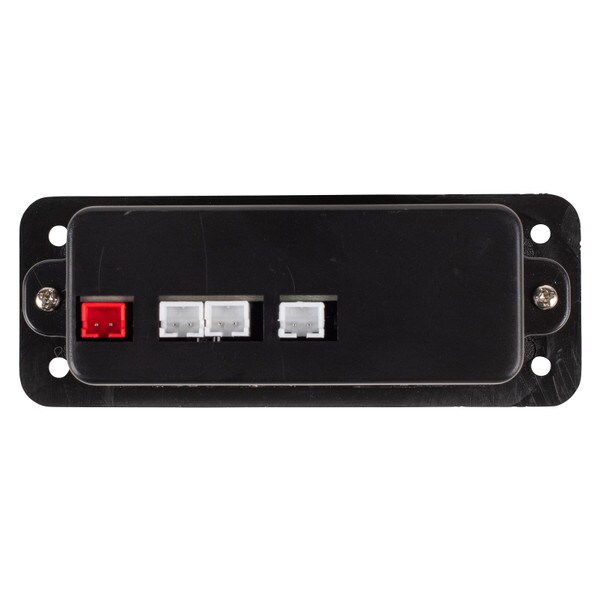

Featuring a 2 x 3W amplifier, this board ensures clear sound reproduction for all your audio needs. Make your own multimedia wireless Bluetooth amplifier or portable speaker with this pre-tested and pre-assembled 2 x 3W amplifier board. The all-in-one design enables you to make smaller projects if space is an issue. The face plate includes a back cover that makes it great for sealed Bluetooth speaker projects. Just add little sealer around the JST jacks after you plug the cables in to isolate it from your speaker cabinet. Add a Lithium Polymer battery with JST PH 2.0 plug to your DIY project for long lasting portable play time. Charge the battery through the built-in micro-USB port in the faceplate.




Stereo Bluetooth 5.0  Connectivity

One feature of the all-in-one board design is a built-in stereo Bluetooth 5.0 module, allowing you to connect your devices wirelessly and stream your favorite music. The built-in microphone enables you to take calls through the amplifier with a paired Bluetooth smartphone. Say goodbye to tangled wires and hello to convenience!

Multimedia Stereo Flash Drive Player

With the built-in media player feature, you can easily playback audio files from various sources such as USB drives or micro-SD cards. This versatility lets you play your music library continuously without any hassle.

3.5 mm Stereo Audio Input

Even if your source device doesn't have Bluetooth, and you haven't downloaded music, this face plate amp board has a built-in stereo 3.5 mm jack just for you. Plug in a 3.5 mm, 3-conductor cable from the headphone jack or line output from your device into the faceplate amp and enjoy your music.

FM Radio for Live Updates

Additionally, the FM radio function lets you tune in to your favorite radio stations, keeping you updated with the latest news, music, and entertainment. It's perfect for those who enjoy the traditional broadcasting experience.

So why settle for anything less when you can have it all in one amp board? What will your next audio DIY project look like with the included faceplate?

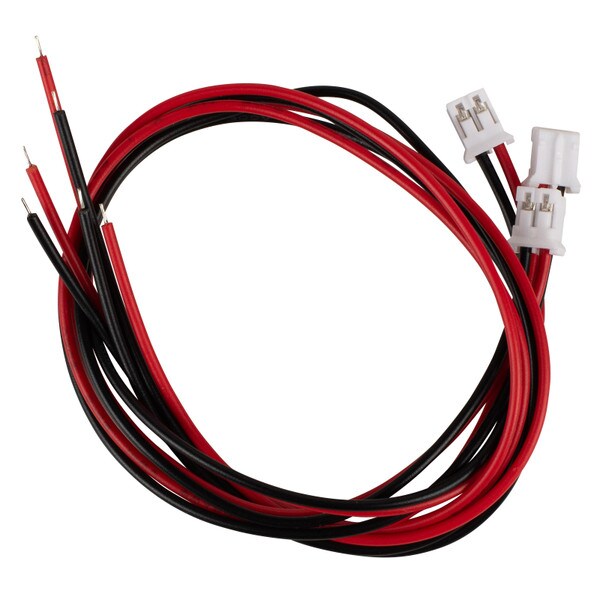

Note: FM reception requires a short piece of antenna/hook up wire with a JST 2.0 type plug (sold separately). 2.5 ft. long is recommended for the best FM reception.

Specifications: • Max power output: 2 x 3W @ 4 ohms with 5 VDC 3A • Impedance: 4 to 8 ohm • Frequency response: 50-15,000 Hz • Signal input: 3-conductor 3.5 mm jack • Input sensitivity: 500 mV Max • Speaker output sockets: 2 x JST PH 2.0 mm • Power input socket: JST PH 2.0 mm • Power requirements: 4-6 VDC • Maximum current draw 1A • Antenna jack: JST PH 2.0 mm • Cut out dimensions: 2-9/16" x 1-1/32" + 1/4" notches x 2 (65 x 26 mm + 7 mm notches x 2) • Total dimensions: 3-11/32" W x 1-1/4" H x 1-7/16" D (85 x 32 x 36 mm) • Screw hole spacing: 2-7/8" and 25/32" (73 x 20 mm) with 3/32" (3 mm) holes • Bluetooth: V5.0 • Bluetooth name: JQ-BT • Flash drives: 32 Gb Max.

Product Details

BrandParts Express
Part Number320-6042
UPC848864075815
Unit of MeasureEach
Weight0.1

Product Specifications

Board Type2 Channel Stereo Amp
Power (RMS/Channel 8 ohms)0 - 25 Watts
Special FeaturesBluetooth
