Bluetooth 5.0/FM/Media Player 2 x 25W Max Amplifier Board

Parts Express
Part #320-642

Bluetooth 5.0/FM/Media Player 2 x 25W Max Amplifier Board

Parts Express
Part #320-642

Bluetooth, FM radio, media player and 2 x 25W amplifier all in one board. Adjust your audio project to the perfect sound reproduction with 6 IR wireless remotely controlled EQ options.

Key Features
  • Bluetooth, FM radio, media player and 2 x 25W Max amplifier all built into one space saving board

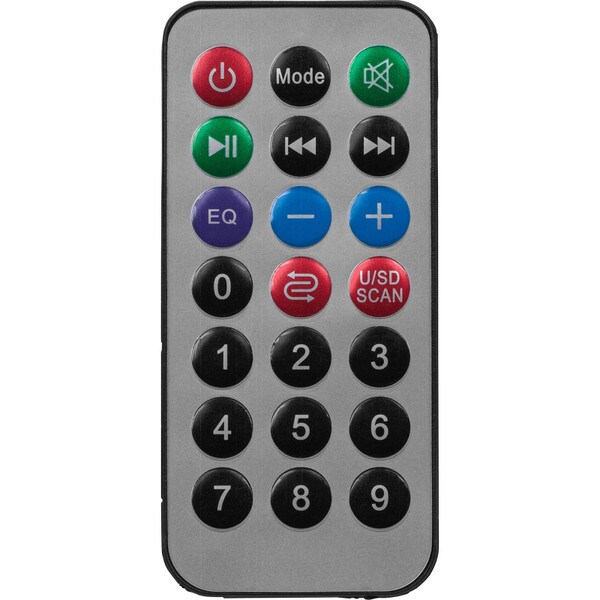

  • Includes six equalization settings using the included IR wireless remote for sound customization
  • Pre-assembled and pre-tested for easy project integration
  • Power with standard switching/regulated 5 to 18 VDC 3A AC adapter
  • Perfect portable audio project using 3-cell lithium battery holder
  • Support music in MP3 / WMA / WAV format; MP3 songs 32-320kbps, WAV / WMA is 1411kbps or below

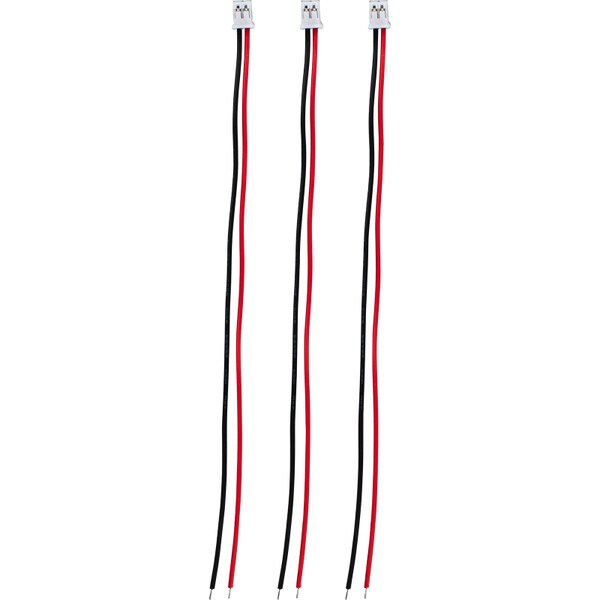

  • Includes speaker and power wiring harnesses 5" long for quick installation
Similar items that may interest you:
See all items in Audio Amplifier Boards & Modules
Your Price: $12.98
MSRP: $24.99
Save $12.01 (48%)
Bulk Pricing
Quantity:Qty: 1-9 $12.98/ea
Quantity:Qty: 10+$11.68/ea
Ships next business day. Details

In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Bluetooth 5.0/FM/Media Player 2 x 25W Max Amplifier Board

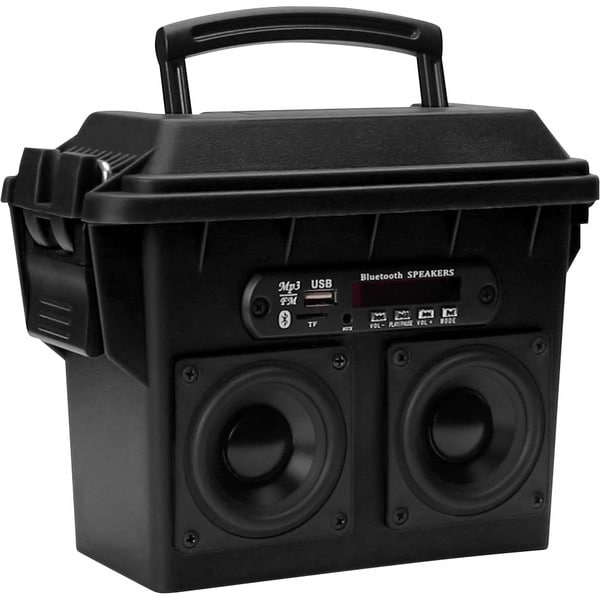

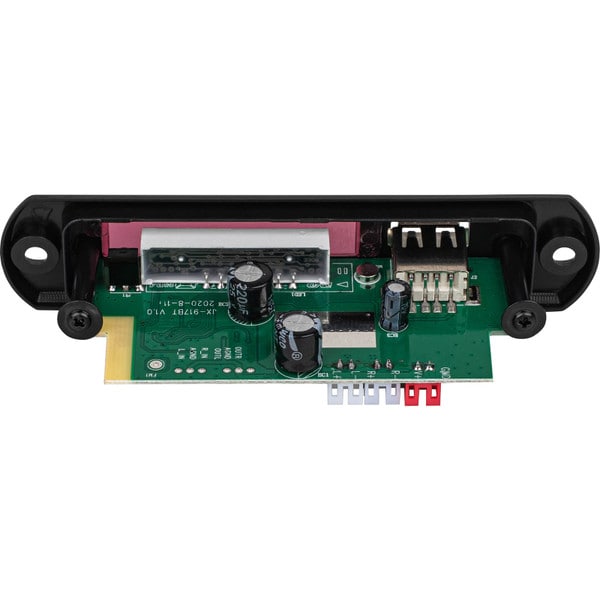

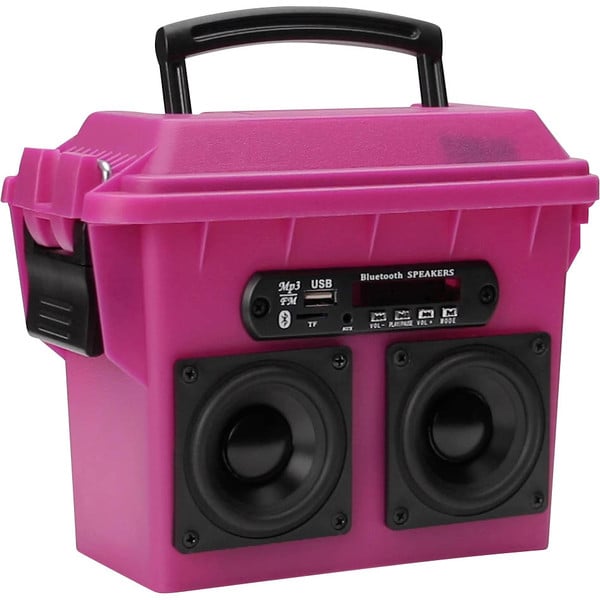

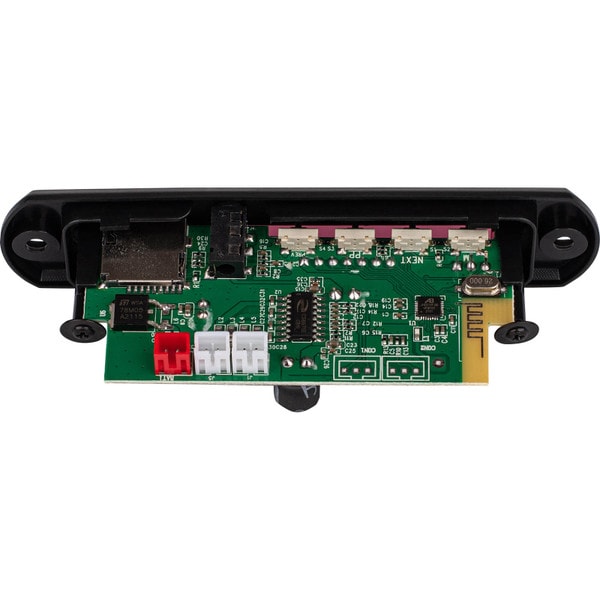

Make your own multimedia wireless Bluetooth amplifier or portable speaker with this pre-tested and pre-assembled 2 x 25W amplifier board. The all-in-one design enables you to make smaller projects if space is an issue. FM radio and multimedia player makes this the perfect amp board to make a complete portable DIY boom box when you add a Dayton Audio LBB-3v2 battery board. Just add a power supply to charge the 3-cell battery board, batteries, speakers, and the proper enclosure to finish the project. The included IR remote makes it easy to adjust the volume and EQ settings from a distance. The built-in microphone enables you to take phone calls through the amplifier, plus it enables you to record your voice as long as a flash drive is installed. Play prerecorded music through the built-in flash drive ports or playback your voice recordings.

Note: FM reception requires a short piece of antenna/hook up wire (sold separately) soldered to the board. Use CR2025 battery for the remote (sold separately). Misprint on the back of some remotes state CR1220.

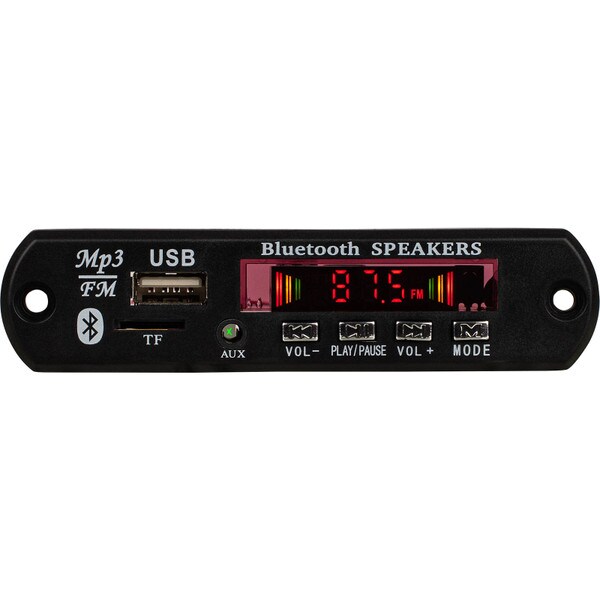

Specifications: • Max power output: 2 x 25W @ 4 ohms with 18 VDC 3A • Impedance: 4 ohm • Amplifier chip: CS8676E • SNR: 125 dB • Frequency response: 130-18,000 Hz • RMS output: 2 x 15W @ 1% THD • Channel crosstalk: -65 dB • Signal input: 3-conductor 3.5 mm jack or board solder holes • Speaker output sockets: 2 x JST PH 2.0 • Power input socket: JST PH 2.0 • Power requirements: 5-18 VDC • Maximum current draw 3A • Standby current draw: 17mA • Line output and FM antenna options: On board solder holes • Board dimensions without face plate: 2.95" W x 0.5" H x 1.3" D • Face plate dimensions: 4.2" W x 1." H x 1.42" D with board • Cutout required for faceplate: 0.79" H x 3.29" W • Bluetooth: V5.0 • Bluetooth name: FX-BT Remote battery: CR2025 (sold separately).

Product Details

BrandParts Express
Part Number320-642
UPC848864068404
Unit of MeasureEach
Weight0.1

Product Specifications

Audio Input/OutputHDMI
Board Type2 Channel Stereo Amp
Power (RMS/Channel 8 ohms)0 - 25 Watts
Video Input/OutputHDMI
Special FeaturesBluetooth
