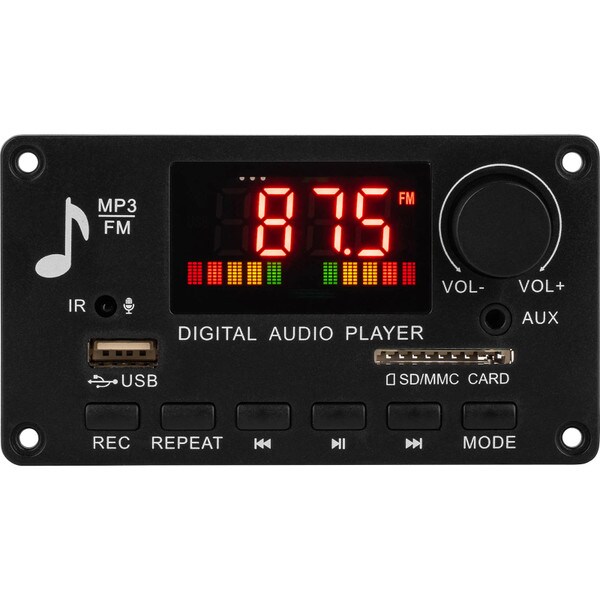

  • 2 x 40W Amplifier Decoder Board with Bluetooth 5.0, FM Radio, MP3 Player and IR Remote

Overview

Fulfill Your Portable Audio Input DIY Project Desires Without Sacrificing Power Output!

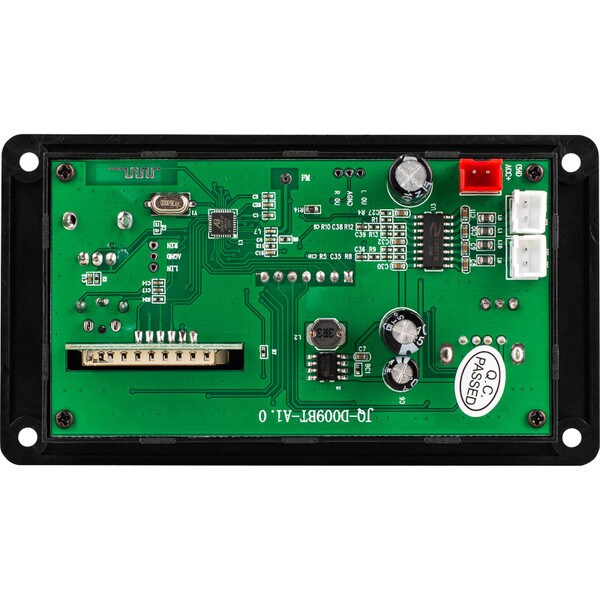

Featuring a powerful 2 x 40W amplifier, this board ensures clear and immersive sound reproduction for all your audio needs. Make your own multimedia wireless Bluetooth amplifier or portable speaker with this pre-tested and pre-assembled 2 x 40W amplifier board. The all-in-one design enables you to make smaller projects if space is an issue. Add a Dayton Audio LBB battery board to your DIY project for long lasting portable play time.

One feature of the all-in-one board design is a built-in Bluetooth 5.0 module, allowing you to connect your devices wirelessly and stream your favorite music. The built-in microphone enables you to take phone calls through the amplifier, plus it enables you to record your voice if a flash drive is installed. Say goodbye to tangled wires and hello to convenience!

Additionally, the FM radio function lets you tune in to your favorite radio stations, keeping you updated with the latest news, music, and entertainment. It's perfect for those who enjoy the traditional broadcasting experience.

With the built-in media player feature, you can easily playback audio files from various sources such as USB drives or SD cards. This versatility ensures that you can enjoy your music library without any hassle.

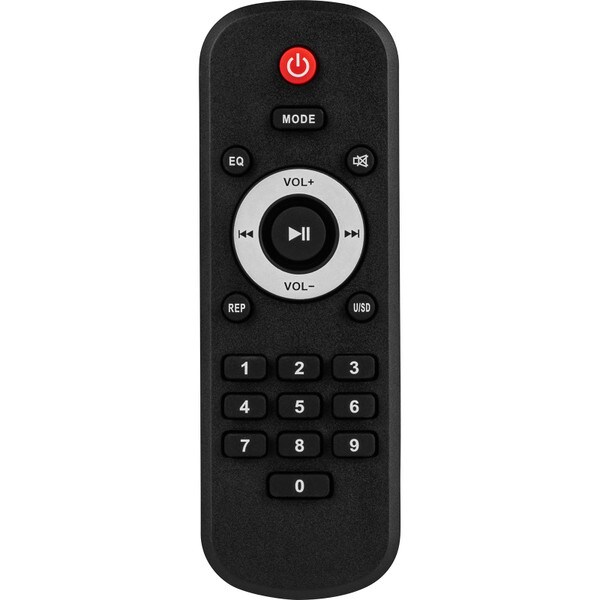

What sets this all-in-one board apart is its 6 IR wireless remotely controlled EQ options. You have the power to fine-tune your audio output according to your preferences. Whether you're a bass enthusiast or a lover of crisp highs, this device allows you to tailor the sound to your liking. Adjust to the perfect volume level remotely or use the volume knob for quick response.

So why settle for anything less when you can have it all in one board? Experience the joy of seamless connectivity, versatile audio playback, and the ability to optimize your sound with our Bluetooth, FM radio, media player, and amplifier board. Upgrade your audio projects today and enjoy the perfect sound reproduction you deserve!

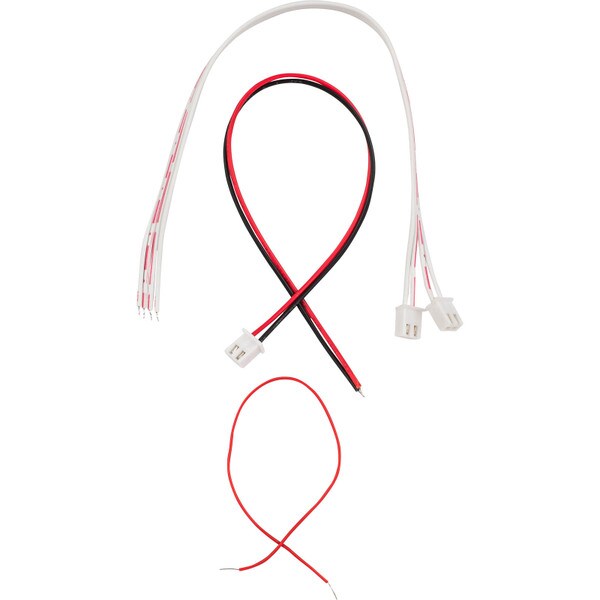

Note: FM reception requires a short piece of antenna/hook up wire soldered to the board. Extend the included antenna wire for best reception. Remote requires 2 x AAA batteries sold separately.

Remote's power button puts the amp board in standby mode. 8 ohm speakers draw very little current when in standby mode so they work best in battery operated projects. Install a power switch to prevent any current draw.

Specifications: • Max power output: 2 x 40W @ 4 ohms with 24 VDC 5A • Impedance: 4 to 8 ohm • Amplifier chip: CS8673E • SNR: 71 dB • Frequency response: 20-20,000 Hz • RMS output: 2 x 23W @ 0.1% THD • Channel crosstalk: 51 dB • Signal input: 3-conductor 3.5 mm jack • Input sensitivity: 500 mV Max • Speaker output sockets: 2 x JST HX 2.54 mm • Power input socket: JST HX 2.54 mm • Power requirements: 9-24 VDC • Maximum current draw 4A • Standby current draw with 8 ohm speakers: 17mA • FM antenna option: On board solder hole • Cut out dimensions: 2-1/8" x 3-3/4" • Total dimensions: 4-13/32" W x 2-7/16" H x 1-1/8" D without the knob • Screw hole spacing: 4" and 2" with 1/8" holes• Bluetooth: V5.0 • Bluetooth name: JQ-BT • Flash drive storage: 32 Gb Max • Included mounting screws: Four M3x15mm • IR Remote battery: 2 x AAA (sold separately).
