  • Beyma T25S NMF Series 1" Fabric Dome Tweeter

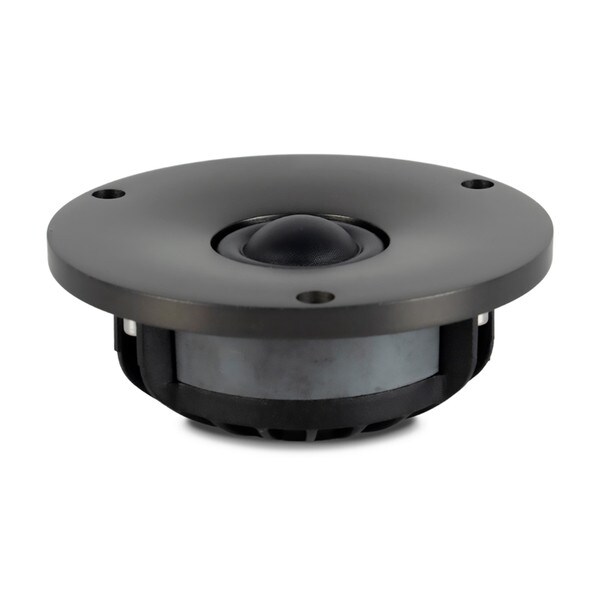

NEW Beyma T25S NMF Series 1" Fabric Dome Tweeter

Beyma
Part #253-089

NEW Beyma T25S NMF Series 1" Fabric Dome Tweeter

Beyma
Part #253-089
Model: T25S

The Beyma T25S is a 1" dome tweeter designed for high-fidelity audio applications that require precise and extended high-frequency reproduction. Its advanced design and quality materials make it suitable for high-end near and mid-field monitors.

Key Features
  • 1" (25.4 mm) aluminum voice coil enhances thermal performance​
  • FEA-optimized ceramic magnetic circuit and suspension improve efficiency​
  • Large polymer-based surround ensures wide dispersion​
  • Polymer-impregnated silk dome offers durability and clarity​
  • Flared aluminum front plate provides controlled directivity​
  • Non-resonant aluminum rear chamber minimizes unwanted vibrations​
  • Extensive frequency range from 1.5 kHz to 20 kHz​
NEW $129.75
+ FREE SHIPPING
MSRP: $173.00
Save $43.25 (25%)
Bulk Pricing
Order in the next 1 hr 2 min to ship today. Details

In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Beyma T25S NMF Series 1" Fabric Dome Tweeter

The NMF Series by Beyma

Live Sound at Home

Beyma's relentless pursuit of audio excellence has culminated in the development of a new family of exceptional drivers. Utilizing world-class simulation tools and a meticulous material selection process, our R&D department has crafted an unparalleled set of electro-dynamic transducers.

This series offers remarkable linearity and minimal distortion, excelling in near and mid-field listening environments where precision is crucial. The NMF series sets a new standard for pristine, uncolored sound, surpassing many competitors.

Over two years, our top engineers engaged in extensive multi-physics simulations, advanced prototyping, and precise measurements to achieve these harmonious devices. Combining decades of experience with cutting-edge technologies, we've created a new generation of drivers designed for outstanding performance in studio monitors and high-end loudspeaker enclosures.

High Consistency

LEX design frames made from exclusive die-cast aluminum are optimized with advanced Finite Element Method software to deliver a unique appearance and reinforced mechanical performance. Their specialized airflow system enhances cooling by directing air exchange between the air gap and the exterior.

Solid

The innovative design allows the tweeter to be mechanically attached to the cabinet. A rigid die-cast aluminum back chamber is directly reinforced by the cast aluminum front plate, securing the entire structure into a unified assembly.

Low Distortion

The magnet system is precisely optimized using the latest FEA software to maximize performance from the ceramic magnet. A T-shaped pole piece with a copper cap delivers highly symmetrical force factor values, minimizing harmonic distortion and reducing inductance. The vented pole piece, flared at the top, enhances magnetic saturation in the steel while avoiding resonances through the use of damping material. Back radiation is absorbed using three carefully chosen damping materials placed behind the dome.

Controlled Directivity

The waveguide is optimized for excellent off-axis response, delivering outstanding performance that supports system designers in achieving strong spinorama measurements.

Accuracy

The T25M uses a precisely engineered aluminum-magnesium alloy reinforced dome to improve frequency response linearity. The membrane operates pistonically well beyond the audible range, pushing break-up to around 38kHz, which reduces listening fatigue and delivers clear, accurate sound throughout its standard operating range.

Overengineered Surround

The wide surround permits greater excursion and is crafted from a specially formulated polymer film. Its shape is optimized using finite element analysis software to maintain symmetric compliance beyond the typical operating range of a standard tweeter, while also delivering exceptional on- and off-axis performance.

Lightweight

The T25S features a lightweight pre-coated silk membrane, producing a high-sensitivity tweeter with excellent frequency response linearity. Combined with a copper-clad aluminum wire voice coil, the design maintains a low moving mass, achieving nearly 92dB sensitivity across its operating frequency range.

T25S NMF Series 1" Fabric Dome Tweeter

The T25S's 15 W AES power handling and 92 dB sensitivity enable it to deliver clear and detailed high-frequency output, making it ideal for demanding audio applications. Its 1" aluminum voice coil enhances thermal stability, contributing to consistent performance over time. The extensive frequency range from 1.5 kHz to 20 kHz ensures accurate reproduction of high-frequency content. The FEA-optimized ceramic magnetic circuit and suspension improve overall efficiency and sound quality. The large polymer-based surround ensures wide dispersion, while the polymer-impregnated silk dome offers durability and clarity. The flared aluminum front plate provides controlled directivity, and the non-resonant aluminum rear chamber minimizes unwanted vibrations. Optimized for high-end near and mid-field monitors, this tweeter offers exceptional performance for professional and home audio systems.

Solid Line: On Axis
Solid Line: 30° Off Axis
Dotted Line: 60° Off Axis

Product Details

BrandBeyma
ModelT25S
Part Number253-089
UPC8435469051317
Unit of MeasureEach
Weight1.8

Product Specifications

Tweeter TypePaper Cone
Power Handling (RMS)15 Watts
Impedance4Ω
Frequency Response1,500 to 20,000Hz
Sensitivity92dB 2.83V/1m

Thiele-Small Parameters

Resonant Frequency (Fs)760Hz
DC Resistance (Re)3.1Ω

Mounting Information

Overall Outside Diameter4.33"
Depth1.76"
