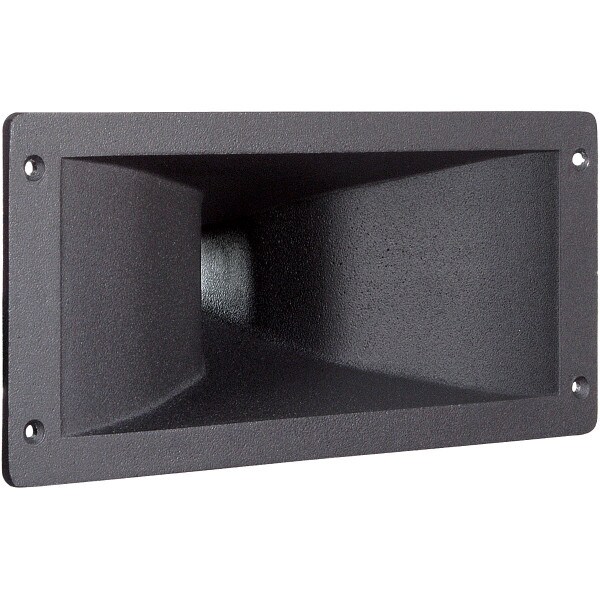

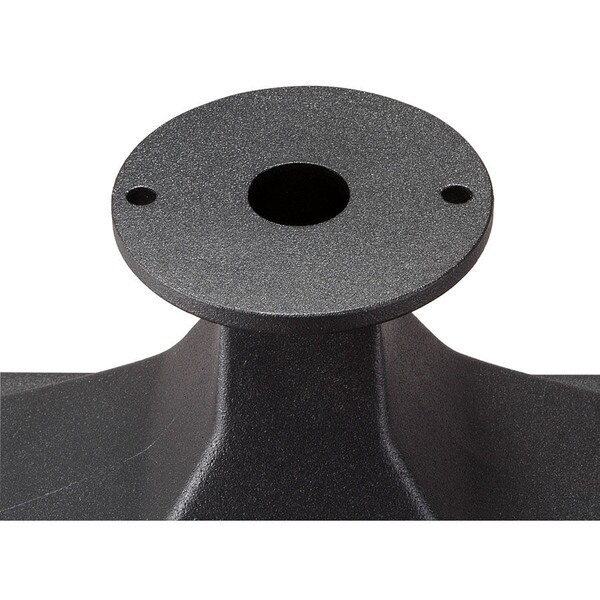

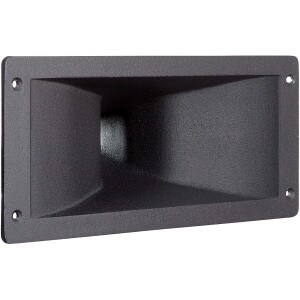

B&C ME45 1" Exponential Horn 90x40 2-Bolt

B&C Speakers
Part #294-622

B&C ME45 1" Exponential Horn 90x40 2-Bolt

B&C Speakers
Part #294-622
Model: ME45
The B&C Speakers ME45 1" exponential cast aluminum horn features very good loading down to 1 kHz and smooth frequency response.
Key Features
  • 90&#176H x 40&#176V nominal dispersion
  • Exponential pattern
  • Durable cast aluminum construction
  • Smooth, low coloration sonic character
Your Price: $66.54
MSRP: $110.90
Save $44.36 (40%)
Bulk Pricing

Back-Ordered

Estimated back in stock 7/8/2025
Alert Me When Available
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

B&C ME45 1" Exponential Horn 90x40 2-Bolt

B&C's ME45 1" horn is constructed of durable cast aluminum, and follows carefully determined design geometries to achieve optimum driver loading and smooth on-axis response. Its classic 90 x 40 dispersion pattern makes it perfect for a variety of demanding pro audio and recording studio applications.

Specifications: • Nominal dispersion: 90°H x 40°V • Minimum frequency: 1,000 Hz • Throat diameter: 1" • Dimensions: 5.6"H x 12.2"W x 4.9"D • Cutout dimensions: 4.3"H x 10.2"W • Mounting type: Standard 2 bolt.

B&C Speakers produces a series of horns for compression drivers ranging from constant directivity models, known for their great consistency in angular coverage, to exponential models, which optimize acoustical loading and sound energy transfer. Standardized driver mounting flanges give the designer the freedom to choose the best horn/driver combination for each project.

All horns are made of cast aluminum, resulting in a robust structure that is free from resonances. The only exception to this method is the ME10; a new design that is made from precision molded plastic and incorporates stiffeners that add to its structural integrity. B&C combines advanced design techniques with critical listening tests to manufacture horns that exhibit precise pattern control, excellent driver loading, and low distortion and coloration.

Product Details

BrandB&C Speakers
ModelME45
Part Number294-622
UPC844632001888
Unit of MeasureEach
Weight2.6

Product Specifications

ConstructionAluminum
Entry / Throat Diameter1"
Mounting Type2-Bolt
