  • B&C DE400TN 1" Neodymium Titanium Horn Driver 2-Bolt

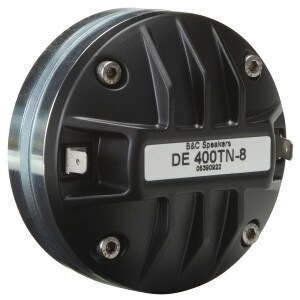

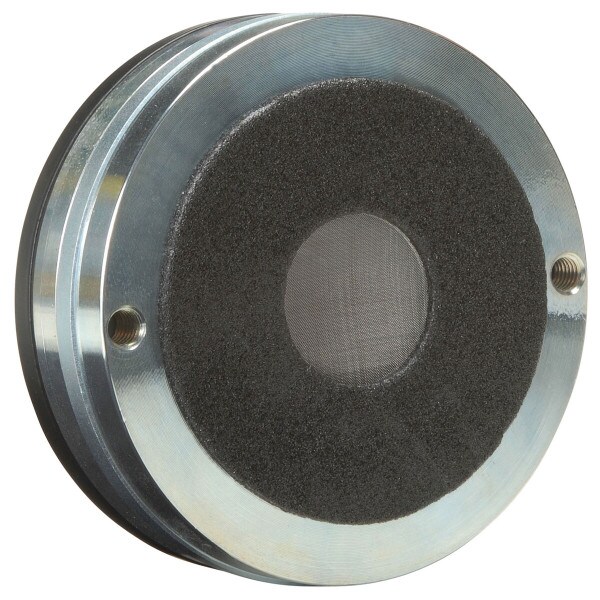

B&C DE400TN 1" Neodymium Titanium Horn Driver 2-Bolt

B&C SpeakersPart # 294-607
Model: DE400TN
3 Questions, 3 Answers or
The B&C Speakers DE400TN 1" high frequency compression driver features a durable titanium diaphragm, aluminum voice coil, copper shorting cap, and optimized neodymium magnet assembly.

Key Features

  • Titanium diaphragm delivers accurate and detailed response
  • High sensitivity and power handling for impressive output
  • Compact neodymium magnet assembly
  • Copper shorting cap minimizes distortion and extends HF response
  • Compact size is perfect for line arrays
  • 1.7" aluminum voice coil
  • 100 watts continuous program power capacity
Your Price: $159.30
+ FREE SHIPPING
MSRP: $265.50
Save $106.20 (40%)
Bulk Pricing
Only 2 In Stock
Get Notified When Available

We'll send you an email when B&C DE400TN 1" Neodymium Titanium Horn Driver 2-Bolt is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

B&C DE400TN 1" Neodymium Titanium Horn Driver 2-Bolt

The B&C Speakers DE400TN 1" high frequency compression driver features a durable titanium diaphragm, aluminum voice coil, copper shorting cap, and optimized neodymium magnet assembly. Compact yet powerful, the neo motor's small size facilitates use in miniature speaker system designs, as well as providing a solution to the critical component spacing issues presented by line arrays. 1" horn throat diameter, 2-bolt mounting.

Specifications: • Power handling: 50 watts RMS/100 watts program above recommended crossover of 1.5 kHz/12 dB slope • VCdia: 1.7" • Impedance: 8 ohms • Frequency response: 1,200-18,000 Hz • SPL: 106 dB 1W/1m • Dimensions: 3.3" diameter x 1.7" depth • Net weight: 1.8 lb. • Replacement diaphragm available.

B&C Speakers' line of compression drivers is the result of a continuous research effort, dedicated to refine every component in the structure, and their overall balance. Diaphragms are made of titanium, mylar, or polyimide, in order to get the required results in efficiency and bandwidth. Their shape and structure is mathematically evaluated well before building the first prototype. Afterwards, their performance is tested with methods that range from modal analysis to laser vibrotomy.

All voice coils are of the edgewound ribbon type, and made of aluminum to reduce mass and achieve the best electro-acoustic performance. The magnet assembly is designed and optimized with up-to-date software for Finite Element Analysis (FEA) and complemented, where needed, by a copper cap to improve frequency extension and linearity.

Equal care is taken in the design of phase plugs, whose role in enhancing performance and reducing distortion artifacts is critical for compression drivers. The precision and transparency of B&C compression drivers is constantly improved by the progress in acoustical modeling and simulation.

Product Details

BrandB&C Speakers
ModelDE400TN
Part Number294-607
UPC844632085987
Unit of MeasureEach
Weight2

Product Specifications

Diaphragm MaterialTitanium
Exit Diameter1"
Mounting Type2-Bolt
Power Handling (RMS)100 Watts
Impedance8Ω
