  • B&C DE254TN 1.4" Titanium Compression Driver 8 Ohm 4-Bolt

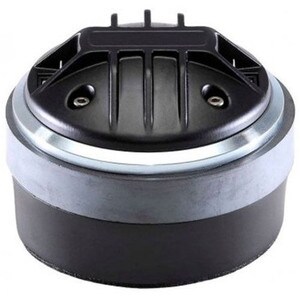

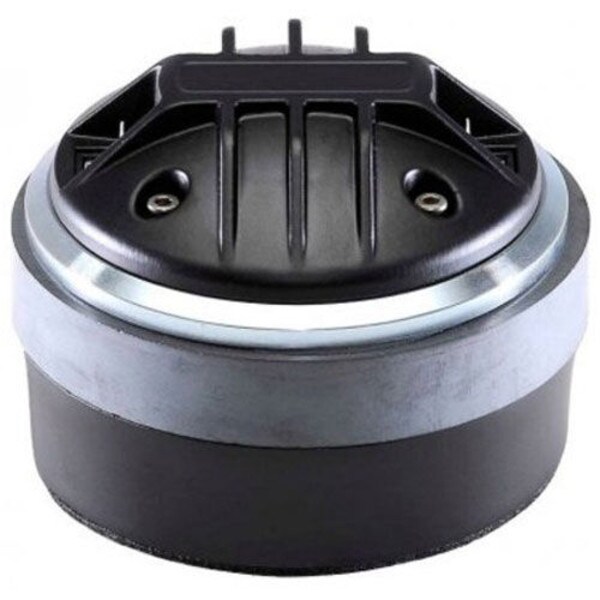

B&C DE254TN 1.4" Titanium Compression Driver 8 Ohm 4-Bolt

B&C SpeakersPart # 294-5815
Model: DE254TN
The B&C Speakers DE254TN 1.4" high frequency compression driver offers high efficiency and exceptionally extended response in medium-format 4-bolt horn applications.

Key Features

  • 1.4" horn throat diameter and 4-bolt mounting
  • Low mass titanium diaphragm
  • 1.7" aluminum voice coil
  • High sensitivity and low distortion
  • Crossover as low as 1,500 Hz
  • 120 watts continuous program power capacity
Similar items that may interest you:
Beyma CD-1114Fe 1.4" Compression Driver 8 Ohm 4-Bolt
Price: $105.00Part # 253-136
See all items in Horn Drivers
Get Notified When Available

We'll send you an email when B&C DE254TN 1.4" Titanium Compression Driver 8 Ohm 4-Bolt is back in stock or available for preorder.

60 Day No Hassle Return Policy

Overview

B&C DE254TN 1.4" Titanium Compression Driver 8 Ohm 4-Bolt

B&C's DE254TN 1.4" high frequency compression driver employs a low mass titanium diaphragm, aluminum voice coil, and an optimized ceramic magnet assembly. It features high sensitivity and low distortion up to 19 kHz.

Specifications: • Power handling: 60 watts RMS/120 watts program above recommended crossover of 1.5 kHz/12dB slope • VCdia: 1.7" • Impedance: 8 ohms • Frequency response: 1,000-19,000 Hz • SPL: 106.5 dB 1W/1m • Dimensions: 4.7" diameter x 3.3" depth • Net weight: 5.3 lb. • Replacement diaphragm available.

Product Details

BrandB&C Speakers
ModelDE254TN
Part Number294-5815
UPC848864009018
Unit of MeasureEach
Weight5.4

Product Specifications

Diaphragm MaterialTitanium
Exit Diameter1.4"
Mounting Type4-Bolt
Power Handling (RMS)120 Watts
Impedance8Ω
