  • B&C DE200-8 1" Titanium Horn Driver 8 Ohm 2/3-Bolt

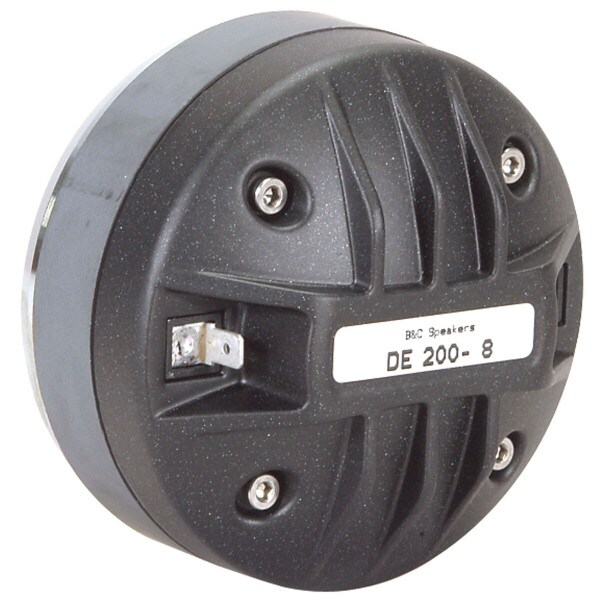

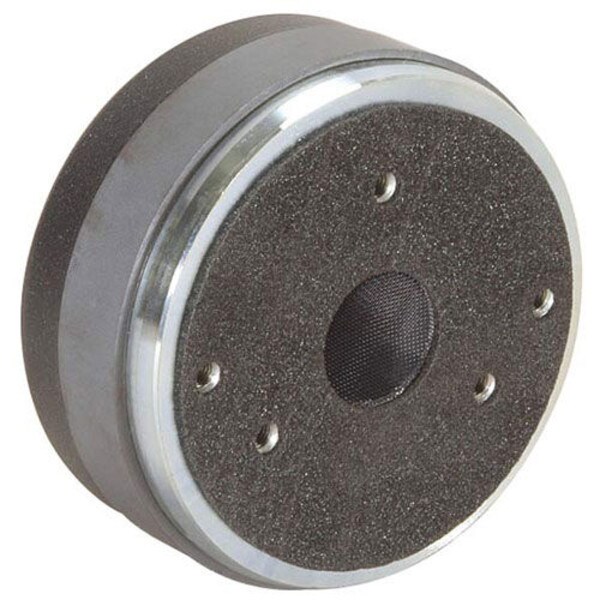

B&C DE200-8 1" Titanium Horn Driver 8 Ohm 2/3-Bolt

B&C SpeakersPart # 294-602
Model: DE200-8
2 Questions, 2 Answers or
The B&C Speakers DE200-8 is an advanced 1" high frequency compression driver consisting of a newly designed low mass titanium diaphragm and an optimized ceramic magnet assembly.

Key Features

  • Low mass titanium diaphragm
  • High sensitivity and low distortion
  • Very smooth response
  • Crossover as low as 1,600 Hz
Your Price: $124.80
+ FREE SHIPPING
MSRP: $208.00
Save $83.20 (40%)
Bulk Pricing
In Stock
Get Notified When Available

We'll send you an email when B&C DE200-8 1" Titanium Horn Driver 8 Ohm 2/3-Bolt is back in stock or available for preorder.

Order in the next 0 hr 41 min to ship today. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

B&C DE200-8 1" Titanium Horn Driver 8 Ohm 2/3-Bolt

The B&C Speakers DE200-8 is an advanced 1" high frequency compression driver consisting of a newly designed low mass titanium diaphragm and an optimized ceramic magnet assembly. The DE200-8 features high sensitivity and low distortion up to 18 kHz.

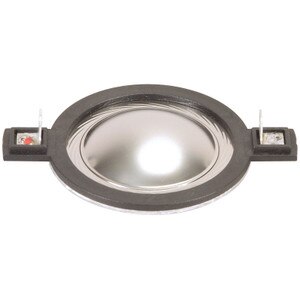

Specifications: • Power handling: 50 watts RMS/100 watts program above recommended crossover of 1.6 kHz/12 dB slope • VCdia: 1.7" • Impedance: 8 ohms • Frequency response: 1000-18,000 Hz • SPL: 106 dB 1W/1m • Dimensions: 4" diameter x 2.3" depth • Net weight: 3.7 lb. • Replacement diaphragm available.

B&C Speakers' line of compression drivers is the result of a continuous research effort, dedicated to refine every component in the structure, and their overall balance. Diaphragms are made of titanium, or mylar, or both, in order to get the required results in efficiency and bandwidth. Their shape and structure is mathematically evaluated well before building the first prototype. Afterwards, their performance is tested with methods that range from modal analysis to laser vibrotomy.

All voice coils are of the edgewound ribbon type, and made of aluminum to reduce mass and achieve the best electro-acoustic performance. The magnet assembly is designed and optimized with up-to-date software for Finite Element Analysis (FEA) and complemented, where needed, by a copper cap to improve frequency extension and linearity. Equal care is taken in the design of phase plugs, whose role in enhancing performance and reducing distortion artifacts is critical for compression drivers. The precision and transparency of B&C compression drivers is constantly improved by the progress in acoustical modeling and simulation.

Product Details

BrandB&C Speakers
ModelDE200-8
Part Number294-602
UPC844632001741
Unit of MeasureEach
Weight3.93

Product Specifications

Diaphragm MaterialTitanium
Exit Diameter1"
Mounting Type2-Bolt/3-Bolt
Power Handling (RMS)100 Watts
Impedance8Ω
