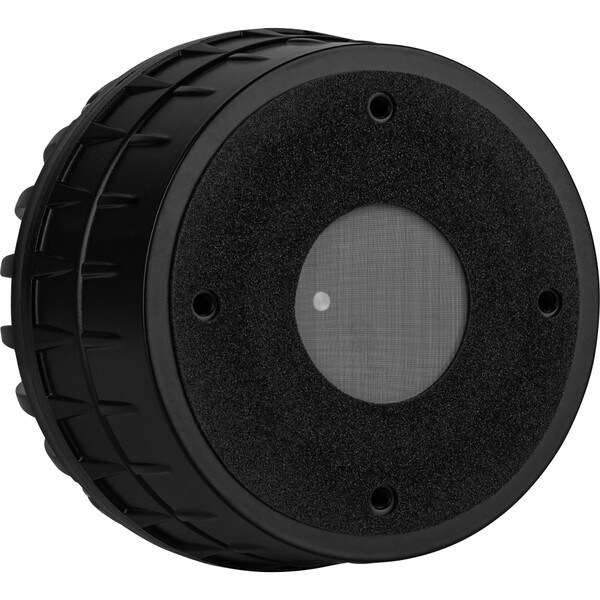

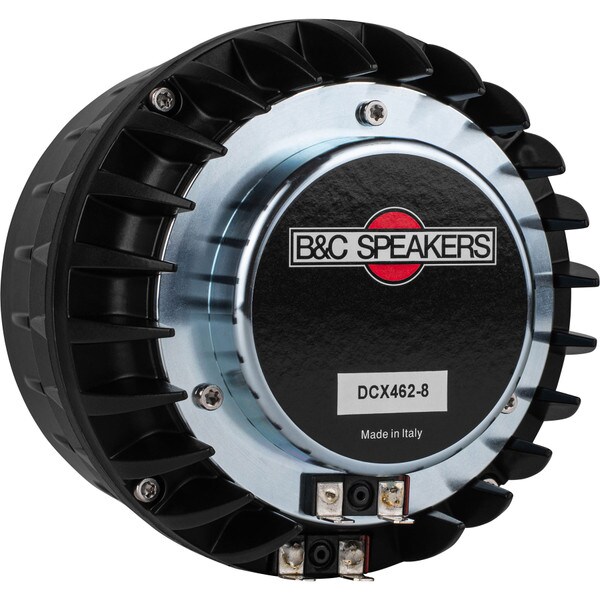

B&C DCX462-8 2" Neodymium Coaxial Compression Driver 8 Ohm 4-Bolt

B&C Speakers
Part #294-6082

B&C DCX462-8 2" Neodymium Coaxial Compression Driver 8 Ohm 4-Bolt

B&C Speakers
Part #294-6082
The DCX-462-8 coaxial compression driver from B&C Speakers uses separate midrange and high frequency polymer ring shaped diaphragms to deliver an extremely wide 300 to 18,000 Hz frequency response. This state-of-the-art driver sets new standards for professional high output PA systems thanks to its high efficiency, low distortion, smooth response, wide bandwidth, and overall output capability.
Key Features
  • Time coherent midrange and high frequency coaxial ring radiators
  • Wide 300 to 18,000 Hz bandwidth for true time alignment and no phase cancellation
  • Extremely powerful neodymium motor assembly for high efficiency and low distortion
  • Patent pending midrange integrator allows both diaphragms to work in harmony
  • Extensive testing to ensure consistency and reliability
Your Price: $715.22
+ FREE SHIPPING
MSRP: $1,192.03
Save $476.81 (40%)
Bulk Pricing
Ships next business day. Details

Only 2 In Stock
Free Shipping available on orders over $49.00 in the US. Details
60 Day No Hassle Return Policy

Overview

B&C DCX462-8 2" Neodymium Coaxial Compression Driver 8 Ohm 4-Bolt

After years of work, B&C engineers have developed a family of next generation high frequency devices. The DCX462-8 coaxial compression driver combines a midrange and high frequency driver into a single package that gives you extremely wide bandwidth and perfect time alignment. Compression drivers are the linchpin of a PA system: operating at wavelengths too small to readily couple with other drivers, they alone have to fight distance and atmospheric losses to deliver concert even and consistent sound pressure levels to ever larger audiences. The DCX462-8 avoids most of the issues with short wavelengths while still delivering the high output and low distortion that B&C drivers are known for.

The DCX462-8 has been designed from the ground up to advance the state of the art. The DCX462’s 4" polymer midrange diaphragm covers 300Hz - 5,500 Hz with 111.1 dB sensitivity, and its 100mm voice coil handles 110 watts RMS. The 65mm coil high frequency diaphragm covers 3,500 - 18,000 Hz with 111.4 dB sensitivity and handles 80 watts RMS. With that extreme efficiency and power handling you can be sure that the DCX462 has the output capability to keep up with any woofer design. A patent pending midrange integrator allows both diaphragms to work in harmony over a wide bandwidth for greater combined output and crossover flexibility. All this energy arrives at a 2” throat, from the most compact package that can be designed today.

Brand new materials and thousands of hours of modelling and testing result in lower distortion at higher SPL than has ever been possible before. Consider the new DCX462 for your next design, and enjoy a new standard in fidelity, with the reliability and consistency you expect from B&C.

Midrange Specifications: • Power handling: 110 watts RMS with minimum crossover of 300 Hz at 12 dB per octave • VCdia: 4" • Impedance: 8 ohms • Frequency response: 300-5,500 Hz • SPL: 111.1 dB 1W/1m.

High Frequency Specifications: • Power handling: 80 watts RMS with minimum crossover of 4,000 Hz at 12 dB per octave • VCdia: 2.5" • Impedance: 8 ohms • Frequency response: 3,500-18,000 Hz • SPL: 111.4 dB 1W/1m.

Dimensions: 5.98" diameter x 4.33" depth • Net weight: 8.82 lbs.

Product Details

BrandB&C Speakers
ModelDCX462-8
Part Number294-6082
UPC848864066516
Unit of MeasureEach
Weight9.1

Product Specifications

Diaphragm MaterialPoly / Mylar
Exit Diameter2"
Mounting Type4-Bolt
Impedance8Ω
