B&C 15FW76 15" Professional Woofer 8 Ohm

B&C SpeakersPart # 294-5981
Model: 15FW76
2 Questions, 4 Answers or

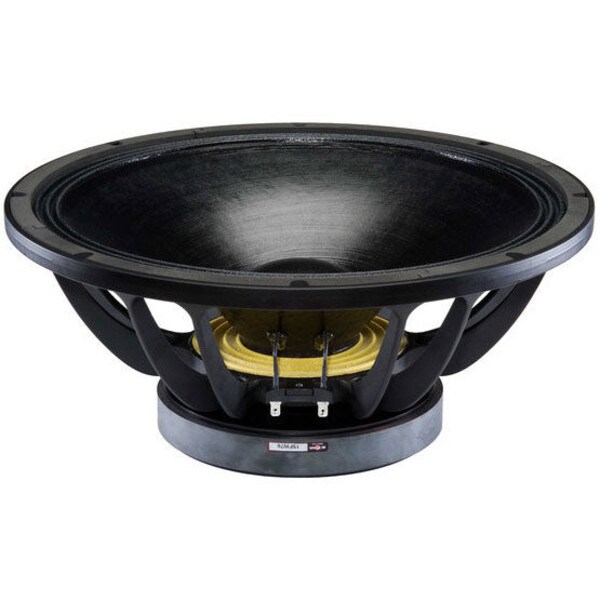

The B&C Speakers 15FW76 15" pro audio speaker features a die cast frame, powerful ceramic ferrite magnet, and 3.0" copper voice coil.

Key Features

  • Waterproof cone treatment and double half-roll cone surround
  • Aluminum demodulating ring reduces distortion
  • Under-spider venting for maximum power handling
  • 3.0" copper voice coil wound on fiberglass former for hi-temp performance
  • 100.0 dB 1w/1m sensitivity
  • 1,000 watts continuous program power rating makes high acoustical output
  • Excellent performance in 2-way or 3-way systems
Similar items that may interest you:
Beyma 15MC500 MC Series 15" Subwoofer 8 Ohm
Price: $217.50Part # 253-016
See all items in Pro Woofers, Subwoofers & Midrange Speakers
Your Price: $254.58
+ FREE SHIPPING
MSRP: $424.30
Save $169.72 (40%)
Bulk Pricing
Back-Ordered
Get Notified When Available

We'll send you an email when B&C 15FW76 15" Professional Woofer 8 Ohm is back in stock or available for preorder.

Expected back in stock any day
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

B&C 15FW76 15" Professional Woofer 8 Ohm

Great power handling and very smooth response to 2 kHz make the B&C 15FW76 15" speaker ideal for 2-way PA stage systems, or in combination with a sub for a high performance 3-way rig. The 15FW76 provides great performance when installed in sealed, vented, or horn-loaded speaker enclosures.

Product Details

BrandB&C Speakers
Model15FW76
Part Number294-5981
UPC848864009636
Unit of MeasureEach
Weight23.45

Product Specifications

Nominal Diameter15"
Bolt Circle Diameter14.7
Power Handling (RMS)1000 Watts
Impedance
Frequency Response40 to 2,000Hz
Sensitivity100dB 2.83V/1m
Voice Coil Diameter3"

Thiele-Small Parameters

Resonant Frequency (Fs)40Hz
DC Resistance (Re)
Voice Coil Inductance (Le)1.4mH
Mechanical Q (Qms)5.1
Electromagnetic Q (Qes)0.22
Total Q (Qts)0.21
Compliance Equivalent Volume (Vas)4.9ft³
BL Product (BL)26.2T·m
Diaphragm Mass Inc. Airload (Mms)117g
Maximum Linear Excursion (Xmax)7mm
Surface Area of Cone (Sd)855cm²

Materials of Construction

Cone MaterialCoated Paper
Surround MaterialCloth
Voice Coil Wire MaterialCopper
Voice Coil FormerFiberglass
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter15.5"
Baffle Cutout Diameter13.9"
Depth6.9"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Vented Volume3ft³
Vented F344.6Hz
