Audio-Technica AT-VM95ML Dual Moving Magnet Cartridge 2.2 x 0.12 mil

Audio-Technica
Part #240-5637

Audio-Technica AT-VM95ML Dual Moving Magnet Cartridge 2.2 x 0.12 mil

Audio-Technica
Part #240-5637
Model: AT-VM95ML

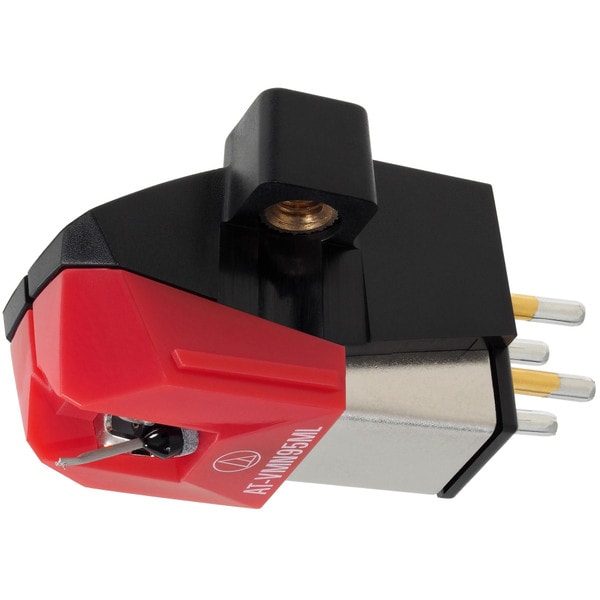

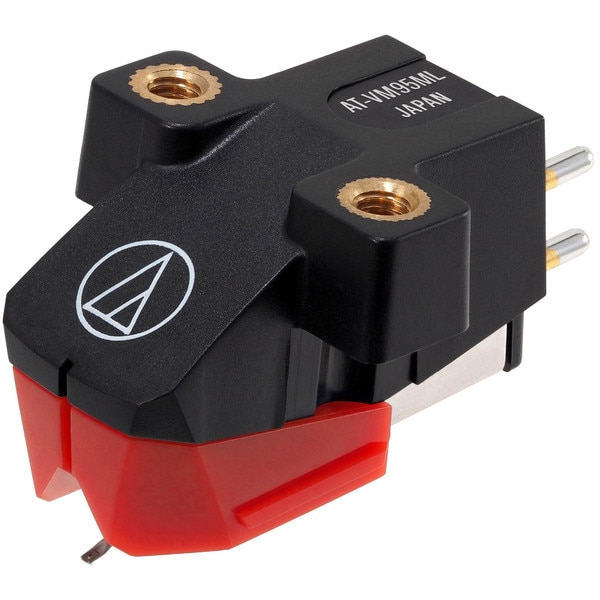

The Audio-Technica VM95ML dual moving magnet cartridge produces excellent channel separation with low distortion for great sonic performance. The durable, low-resonance housing includes threaded inserts that enable the cartridge to be mounted to the headshell with just two screws with no nuts required.
Key Features
  • VM Series dual magnet cartridge with 2.2 x 0.12 mil Microlinear stylus
  • Aluminum cantilever
  • Durable low-resonance polymer housing
  • Threaded inserts in cartridge body enable cartridge to be mounted to headshell with just two screws, no nuts required
  • Compatible with any AT-VMN95 replacement stylus
Your Price: $179.00
+ FREE SHIPPING
Bulk Pricing
Order in the next 0 hr 32 min to ship today. Details

In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Audio-Technica AT-VM95ML Dual Moving Magnet Cartridge 2.2 x 0.12 mil

This VM95 Series cartridge with 2.2 x 0.12 mil Microlinear stylus fits half-inch mount turntables. The cartridge offers excellent channel separation and low distortion for outstanding tonal quality. The durable, low-resonance housing includes threaded inserts that enable the cartridge to be mounted to the headshell with just two screws – no nuts required. And since all VM95 Series share the same body, the stylus can be replaced with any of the six interchangeable AT-VMN95 replacement styli.

Specifications:


•Frequency response: 20-25,000 Hz
•Channel separation: 23 (dB at 1 kHz)
•Vertical tracking angle: 23°
•Vertical tracking force: 1.8-2.2 g (2.0 g standard)
•Stylus construction: Nude round shank
•Recommended load impedance: 47 kohms
•Coil impedance: 3.3 kohms (1 kHz)
•DC resistance: 485 ohms
•Coil inductance: 550 mH (1 kHz)
•Load capacitance: 100 to 200 pF
•Output: 3.5 mV (1 kHz, 5 cm/sec.)
•Channel balance: 1.5 dB (1 kHz)

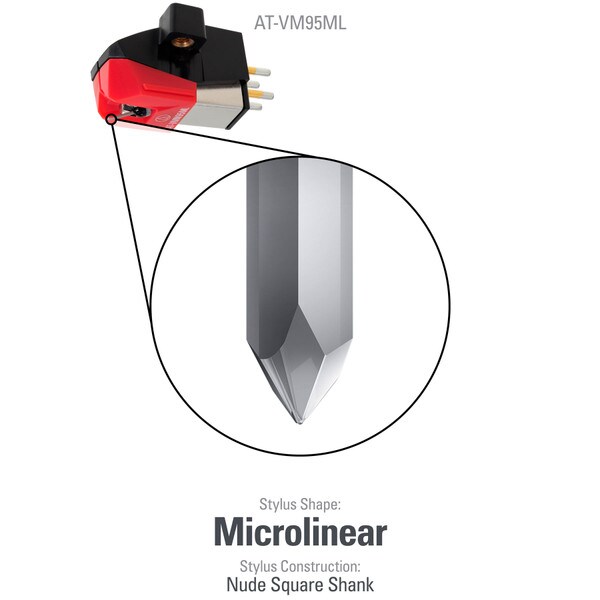

•Stylus shape: 2.2 x 0.12 mil Microlinear
•Cantilever: Aluminum pipe
•Mount: Half-inch
•Replacement stylus: AT-VMN95ML

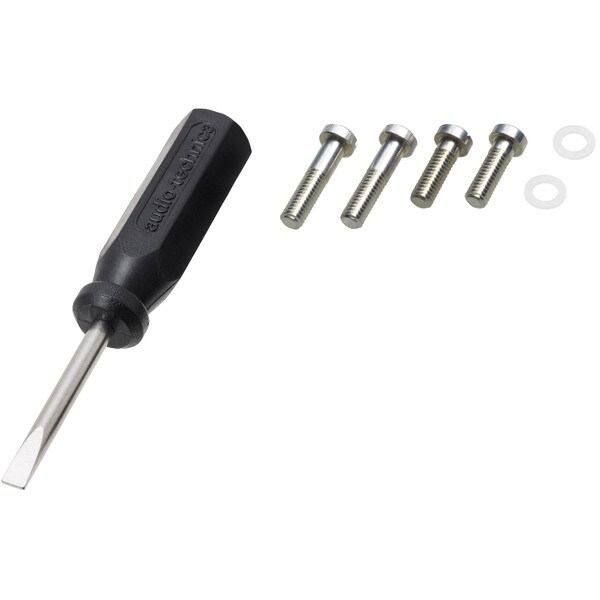

•Accessories Included: Two 11 mm installation screws, two 8 mm installation screws, two washers, nonmagnetic screwdriver
•Dimensions: 17.2 mm (0.68") H × 18.9 mm (0.74") W × 28.3 mm (1.20") D
•Weight: 6.1 g (0.22 oz)

Product Details

BrandAudio-Technica
ModelAT-VM95ML
Part Number240-5637
Unit of MeasureEach
Weight0.1
