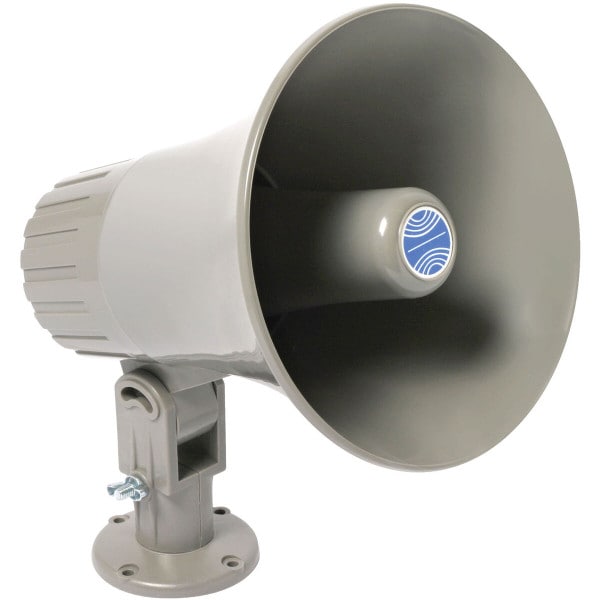

AtlasIED GA-15T 15W Utility Paging Horn Speaker

AtlasIEDPart # 242-846
Model: GA-15T
The GA Series utility horns are perfectly suited for voice paging and music transmission. • 70.7V Taps: 1, 2, 4, 8, 15 watts • Nominal frequency response: 400-6,000 Hz • Sensitivity: 103 dB 1W/1m

Key Features

  • Dual voltage, knob-adjustable impedance selection for 25/70.7V line connection
  • Multi-function, re-entrant horn loudspeakers offer efficient sound penetration
  • Sturdy construction for long-term indoor and outdoor paging, music, and intercom use
Your Price: $103.99
+ FREE SHIPPING
MSRP: $126.99
Save $23.00 (18%)
Bulk Pricing
In Stock
Get Notified When Available

We'll send you an email when AtlasIED GA-15T 15W Utility Paging Horn Speaker is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

AtlasIED GA-15T 15W Utility Paging Horn Speaker

The GA Series utility horns are perfectly suited for voice paging and music transmission. Double re-entrant horn construction optimizes loudspeaker output to penetrate ambient sound levels. Includes a combination 25/70.7 volt line transformer with multi-position knob switch for selecting power taps and wiring for an 8 ohm connection. GA Series models are constructed of weather resistant, high-impact plastic for indoor/outdoor installations in high-humidity environments and feature an adjustable surface mount bracket. Gray finish with silver colored hardware.

Specifications: • Power rating: 15 watts • 70.7V Taps: 1, 2, 4, 8, 15 watts • Nominal frequency response: 400-6,000 Hz • Sensitivity: 103 dB 1W/1m • Dimensions: 7-1/2" dia. x 9-3/8" L x 10" H • Mfg. #GA-15T

Constant Voltage (70-Volt) Audio Systems

Audio distribution systems, especially those commonly used in department stores, warehouses, restaurants, etc., require that many loudspeakers be driven from a single audio amplifier over long runs of speaker wire. The "constant voltage" or "high impedance distribution" audio systems can be complex to understand at first, however, provides many advantages. Learn how to design your own 70-volt or 25-volt loudspeaker system.

Product Details

BrandAtlasIED
ModelGA-15T
Part Number242-846
UPC612079132775
Unit of MeasureEach
Weight4

Product Specifications

Speaker TypePA Horn Speaker
