  • AtlasIED DT22 24" x 24" Drop-In Ceiling Tile Speaker Pair

CLEARANCE AtlasIED DT22 24" x 24" Drop-In Ceiling Tile Speaker Pair

AtlasIEDPart # 242-877
Model: DT22

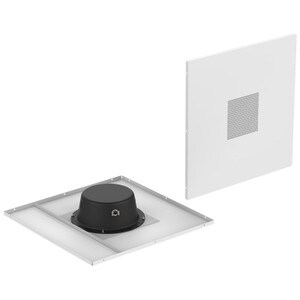

The AtlasIED 24" x 24" Drop Tile ceiling speaker pair is ideal for quick and clean installations in new or existing drop ceilings while not sacrificing sound quality.

Key Features

  • Standard 8" full-range speaker with rear enclosure for protection and enhanced sound quality
  • All in one assembled unit drops into standard 24" x 24" ceiling grids for quick and easy installation
  • Solid white panel with integrated mesh grill blends in with most ceiling tile designs
  • Built-in 4-watt 70-volt transformer for simple integration
  • UL certified, safety listed to UL1480/2403
Similar items that may interest you:
Quam SYSTEM 12 24" x 24" Lay-In Ceiling Tile Speaker 5W-25/70V
Price: $121.90Part # 244-3136
See all items in Commercial Ceiling Speakers
CLEARANCE $209.98
+ FREE SHIPPING
MSRP: $261.99
Save $52.01 (20%)
Bulk Pricing
4 In Stock
Get Notified When Available

We'll send you an email when AtlasIED DT22 24" x 24" Drop-In Ceiling Tile Speaker Pair is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

AtlasIED DT22 24" x 24" Drop-In Ceiling Tile Speaker Pair

The AtlasIED DT22 is designed for clear intelligibility in a time saving package. Ideal for use in department stores, office spaces, doctors offices or anywhere large quantities of speakers are to be utilized in a drop ceiling. The high-efficiency 8" speaker effortlessly cuts through background noises for music and paging.

The 24" x 24" size allows for lightning quick installation and the simple, white design means it will blend in with the overall aesthetic of almost any drop tile ceiling. The included 25/70V 4-watt transformer allows for straight forward installation and volume balancing. The rear enclosure protects the speaker and helps increase bass response. Sold in pairs.

Specifications: • Length: 23.9• (60.7 cm) • Width: 23.9• (60.7 cm) • Depth: 4.53• (11.5 cm) • Shipping weight: 11.3 lbs (5.125 kgs) • Frequency response: 100 Hz - 5,000 Hz • Power taps: 0.25W, 0.5W, 1W, 2W and 4W • Speaker type: Standard 8" • Dispersion: 105° • Sensitivity: 96 dB 1W/1m • UL listed/standard: 1480, 2043.

Constant Voltage (70-Volt) Audio Systems

Audio distribution systems, especially those commonly used in department stores, warehouses, restaurants, etc., require that many loudspeakers be driven from a single audio amplifier over long runs of speaker wire. The "constant voltage" or "high impedance distribution" audio systems can be complex to understand at first, however, provides many advantages. Learn how to design your own 70-volt or 25-volt loudspeaker system.

Learn More

Product Details

BrandAtlasIED
ModelDT22
Part Number242-877
UPC612079190744
Unit of MeasurePairs
Weight18.25

Product Specifications

Input Rating25V/70.7V
Mounting StyleDrop-in Tile
Woofer Diameter8"
Special FeaturesUL1480-UL2043
