Quam SYSTEM 12 24" x 24" Lay-In Ceiling Tile Speaker 5W-25/70V

QuamPart # 244-3136
Model: SYSTEM 12
Quam's SYSTEM 12 is a 24" x 24" lay-in ceiling speaker tile 8" O.D with a 5 watt-25/70.7V pigtail transformer.

Key Features

  • 24" x 24" lay-in speaker tile
  • 5W-25/70.7V pigtail transformer
  • For indoor environments
  • Program material: Signal tones, voice, and music
  • Made in Chicago, USA
Your Price: $121.90
+ FREE SHIPPING
MSRP: $131.42
Save $9.52 (7%)
Bulk Pricing
Quantity:Qty: 1-7 $121.90/ea
Quantity:Qty: 8+ $118.85/ea
In Stock
Get Notified When Available

We'll send you an email when Quam SYSTEM 12 24" x 24" Lay-In Ceiling Tile Speaker 5W-25/70V is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Quam SYSTEM 12 24" x 24" Lay-In Ceiling Tile Speaker 5W-25/70V

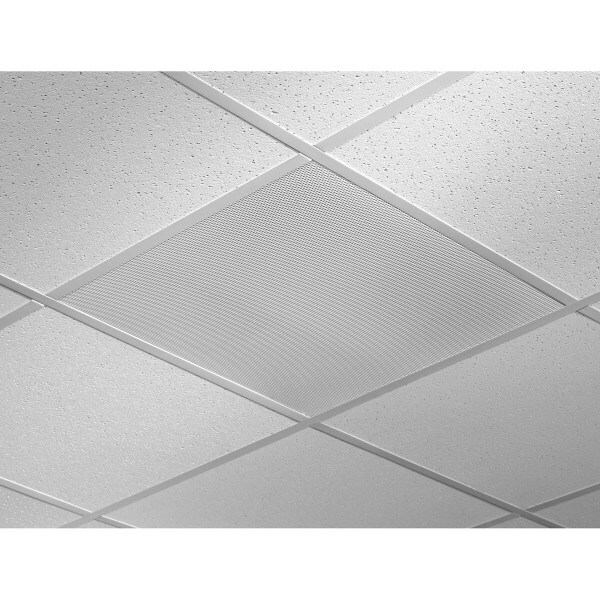

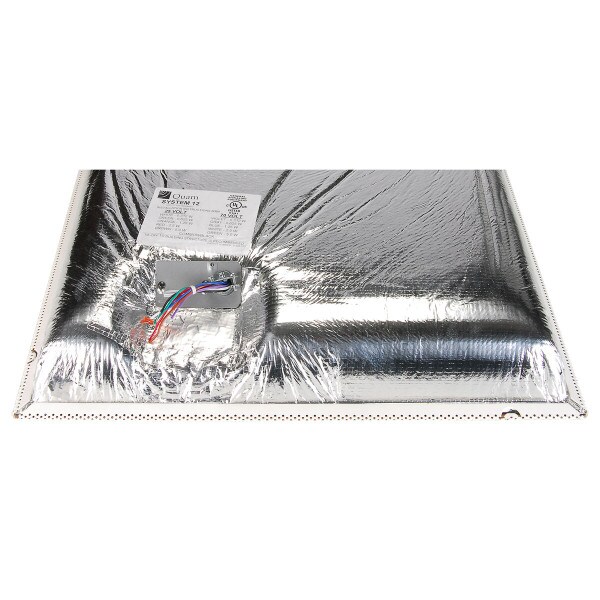

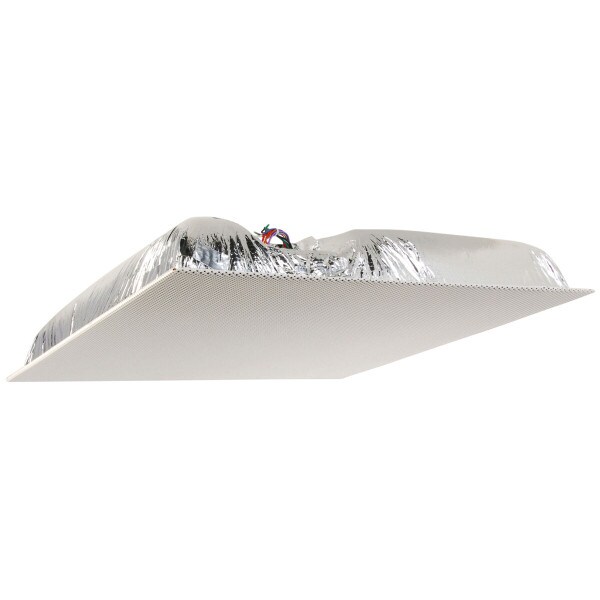

The SYSTEM 12 by Quam is a complete loudspeaker assembly with a full range loudspeaker, perforated steel baffle, and integral molded fiber enclosure. Finish is a white baked epoxy hybrid. Intended use in an indoor environment, mounted parallel to floor plane in a 24" wide suspended ceiling tile grid for signal tones, voice, and music. The Quam SYSTEM 12 is UL Listed 1480- (UEAY, UAEY7-Canada) when installed in accordance with supplied installation instructions, requirements of NEC and AHJ. Made in Chicago, USA.

Specifications: • 25/70.7V transformer: 5, 2.5, 1.25, 0.63, 0.31 watt • Average sensitivity: 92 dB 1W/1m • Power rating: 12 watts RMS • Max. system output: 99 dB, 5W/1m • Magnet type: weight: BeFe ceramic, 4.8 oz. nominal • Frequency response: 65 Hz - 17 kHz • Nominal coverage angle: 100° included angle, -6 dB/ 2 kHz, half space • Audio connection: 7" long labeled, tinned wires, pre-cut.

Constant Voltage (70-Volt) Audio Systems

Audio distribution systems, especially those commonly used in department stores, warehouses, restaurants, etc., require that many loudspeakers be driven from a single audio amplifier over long runs of speaker wire.  The "constant voltage" or "high impedance distribution" audio systems can be complex to understand at first, however, provides many advantages. Learn how to design your own 70-volt or 25-volt loudspeaker system.

Learn More

Product Details

BrandQuam
ModelSYSTEM 12
Part Number244-3136
UPC844632096785
Unit of MeasureEach
Weight7.8

Product Specifications

Input Rating70V|25V
Mounting StyleDrop-in Tile
Woofer Diameter8"
Special FeaturesEnclosed Back-UL1480
