2 x 30W High-Power Amplifier Board with On/Off Volume Switch

Parts ExpressPart # 320-5030

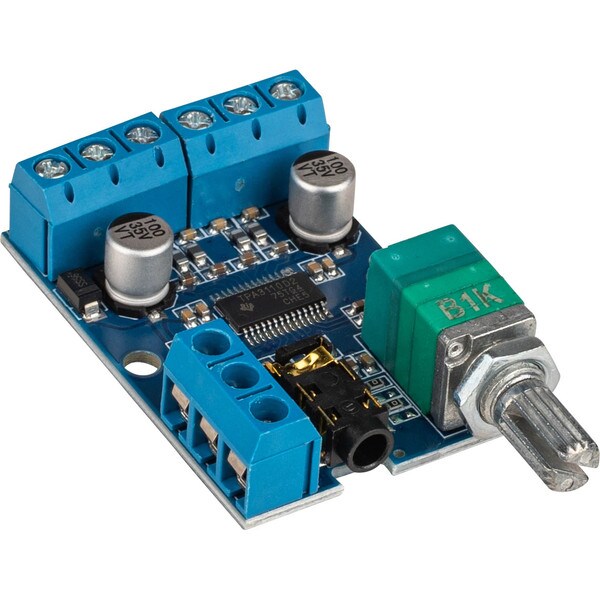

This board is the perfect addition to your audio DIY projects! It is specifically designed around the TPA3100D2 integrated circuit, which is a powerful 30W per channel Class D digital audio power amplifier.

Key Features

  • Pre-assembled and pre-tested for easy project integration
  • Class D efficiency and compact size
  • 2 x 30W continuous power, adequate for most speakers
  • Built-in volume control with on/off switch, audio input for easy audio project integration
Your Price: $6.98
MSRP: $15.99
Save $9.01 (56%)
Bulk Pricing
Quantity:Qty: 1-9 $6.98/ea
Quantity:Qty: 10+ $6.38/ea
In Stock
Get Notified When Available

We'll send you an email when 2 x 30W High-Power Amplifier Board with On/Off Volume Switch is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

2 x 30W High-Power Amplifier Board with On/Off Volume Switch

What makes this amplifier particularly impressive is its Class D amplification technology, which allows for high power output while maintaining a miniature size. This means that you can enjoy a high-quality sound reproduction without sacrificing space or portability.

Additionally, this board comes with a built-in volume control with an on/off switch and 3.5mm input jack, making it incredibly convenient to use. Just plug in your audio source and adjust the volume to your preference and enjoy high quality, Hi-Fi stereo music. Turn it off without having to add any external switches. Power the board by wiring it to a battery pack with the two built-in screw terminals or add an external DC jack for a AC power supply.

So, if you're looking to enhance the audio capabilities of your Small DIY project, this board with the TPA3100D2 integrated circuit is the way to go. It offers high power output, excellent sound reproduction, and easy integration into any audio setup. Don't miss out on the opportunity to take your audio experience to the next level!

Specifications: • Power output: 2 x 30 watts @ 4 ohms, 2 x 15 watts @ 8 ohms • Efficiency: 90% • Signal-to-noise ratio: 90 dB • Frequency response: 20 to 20,000 Hz • Signal input: 3.5 mm stereo jack and screw terminals • Signal output: 4 screw terminals • Power requirements: 8-24 VDC • Quiescent current: 20 mA • Power input: 2 screw terminals • Board dimensions: 1-1/4" x 1-3/4" x 9/16" (32 x 45 x 15 mm)

Product Details

BrandParts Express
Part Number320-5030
UPC848864074917
Unit of MeasureEach
Weight0.05

Product Specifications

Board Type2 Channel Stereo Amp
Power (RMS/Channel 8 ohms)0 - 25 Watts
