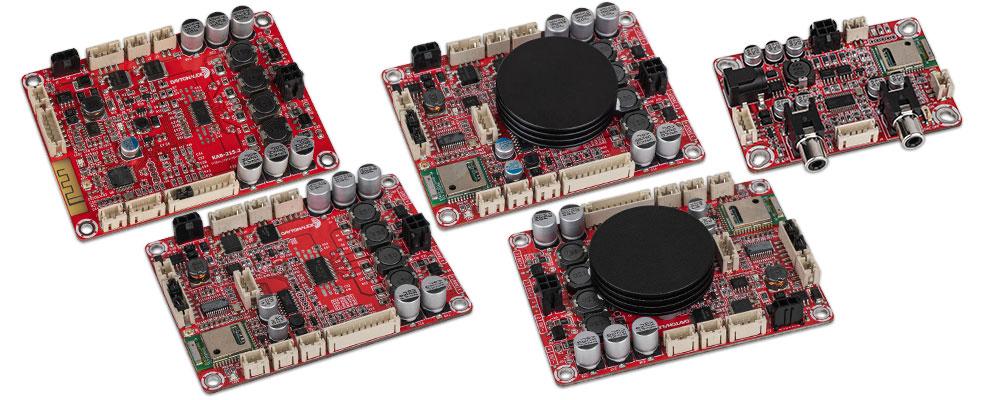

New KAB Bluetooth 5.0 Amp Boards
Extended Wireless Bluetooth Range

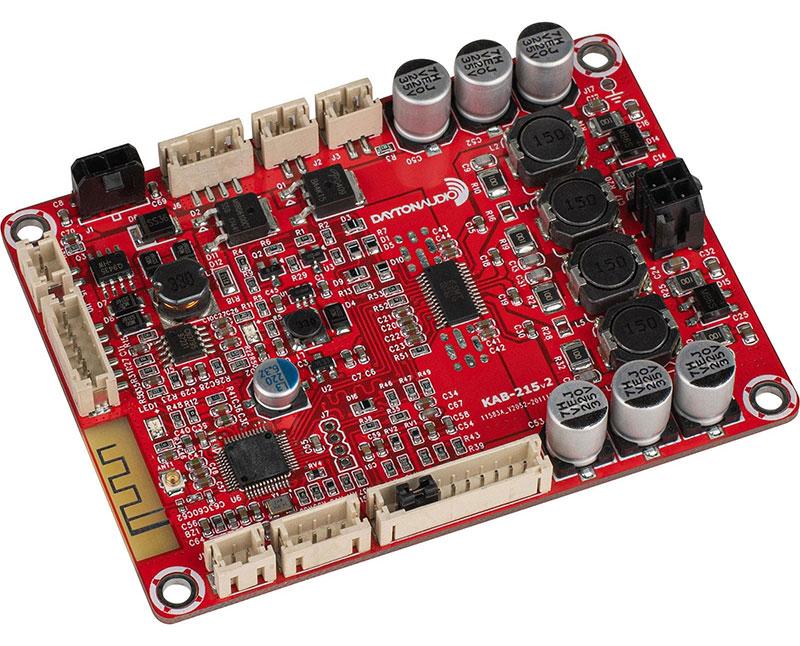

The extremely versatile Dayton Audio KAB-215v2 Bluetooth 5.0 Amplifier Board allows for quick and easy addition of audio to any project, speaker build, point of purchase display, kiosk, or any location where audio enhances the experience. With an output of 2 x 15 watts, there is more than enough power to drive stereo speakers, yet the board is small enough to integrate into nearly any project.
SHOP NOWFeaturing New Qualcomm Bluetooth 5.0 Amplifier Boards
- aptX HD - The best Bluetooth sound quality available
- New line level output - easily send audio signal to second amplifier
KAB-230v4
2 x 30 watts of power from the TPA3118 Qualcomm amp chip and line output for expanding your DIY audio projects capabilities.
SHOP NOW
KAB-250v4
More power with 2 x 50 watts and heatsink to keep everything cool, especially with speakers using 4 ohm impedance.
SHOP NOW
KAB-100Mv2
1 x 100 watts of power, perfect for making a mono powered Bluetooth speaker project.
Introducing Bluetooth 5.0 aptX HS Receiver using Qualcomm Technology
- Use as a high-quality Bluetooth receiver - built-in 2 x 3 watt amplifier for small projects
- Wide 5 to 21 DC voltage range perfect for DIY audio projects

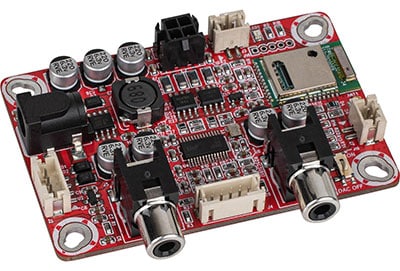

Dayton Audio's KAB-23 is a Bluetooth 5.0 aptX HD receiver board with an option to use the built-in 2 x 3W amplifier board for small projects.
SHOP NOWKAB Series Comparison Chart
Key Features for All Boards
- External Bluetooth antenna socket for mounting in a metal enclosure with an external rubber antenna (sold separately)
- Built-in Bluetooth antenna for easy additions to your audio to your projects
| Model | KAB-215v2 | KAB-230v4 | KAB-250v4 | KAB-100Mv2 | KAB-23 |
| Max Power Output | 2 x 15W | 2 x 30W | 2 x 50W | 1 x 100W | 2 x 3W |
| Qualcomm Bluetooth 5.0 aptX HD Chip | No | Yes | Yes | Yes | Yes |
| Accepts KAB-INT | No | Yes | Yes | Yes | No |
| Audio Output Socket | No | Yes | Yes | Yes | Yes |
| Audio Input Socket | Yes | Yes | Yes | Yes | No |
| Future Programmer Socket | No | Yes | Yes | Yes | No |
