miniDSP DDRC-24 2x4 Dirac Live Stereo Processor

miniDSPPart # 230-3430
Model: DDRC-24

Dirac Live®, the world’s premier room correction solution, is now available in an unbelievably compact package. Meet the miniDSP DDRC-24, the worlds smallest Dirac Live® hardware processor.

Key Features

  • Dedicated Dirac Live® hardware processor for room correction
  • Two analog line-level inputs
  • Four analog line-level outputs for multi-speaker or subwoofer integration
  • USB connection used for Dirac Live calibration and device configuration
  • Supports full Dirac Live measurement and filter generation workflow
  • Built-in DSP for routing, level control, and system configuration
Your Price: $724.98
+ FREE SHIPPING
MSRP: $999.99
Save $275.01 (28%)
Bulk Pricing
Only 14 In Stock
Get Notified When Available

We'll send you an email when miniDSP DDRC-24 2x4 Dirac Live Stereo Processor is back in stock or available for preorder.

Order in the next 13 hr 1 min to ship today. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

miniDSP DDRC-24 2x4 Dirac Live Stereo Processor

miniDSP DDRC-24 2x4 Dirac Live Stereo Processor

DDRC-24, a USB DAC+DSP Digital Room Correction processor powered by Dirac Live in a tiny form factor

miniDSP introduces the DDRC-24, the world’s smallest Dirac Live® hardware processor. Dirac Live®, the world’s premier room correction solution, is now available in an unbelievably compact hardware unit. Powered by a 400 MHz Analog Devices SHARC processor, the DDRC-24 retains the 4-channel output of its sister unit, the miniDSP 2x4 Hd, in order to allow applications like subwoofer integration or even 2-way loudspeakers together with Dirac Live® room correction in a single tiny hardware platform. The matrix mixer and crossover functionality is accessed and programmed with miniDSP’s easy-to-use interface software. An all in one unit with USB DAC + Dirac Live Room Correction + Speaker processing.

I/O capabilities get an upgrade too, with the addition of USB audio streaming up to 192 kHz and a TOSLINK digital input. The miniDSP DDRC-24 will find application in full-sized hifi and home theater systems, on desktops, in cars, in recording studios anywhere a compact, powerful room correction processor is needed.

    Features

  • ADSP21489 400MHz Sharc DSP floating point engineXMOS
  • Xcore200 for USB control and bidirectional audio streaming
  • 24 bit ADC/DAC resolution
  • Dirac Live 3.x  for miniDSP with 4 presets, fully configurable target curve
  • Unbalanced inputs switchable with a jumper between 4Vrms and 2Vrms
  • Toslink digital input
  • Unbalanced outputs: Max 2Vrms
  • USB Audio Class 2 Audio streaming with ASIO drivers, driverless under MAC OSx
  • 4 preset configuration, recallable via IR, Software
  • Wifi/Alexa voice control via WI-DG accessory

    What's in the box?

  • 1 x DDRC-24 including Dirac Live license for miniDSP and DDRC-24 plugin
  • 1 x 12V power supply with UK/EU/US/AU plugs
  • 1 x shielded USB cable
  • 1 x IR remote
  • 1 x Dirac live license 3.x  for miniDSP,  full range correction
  • 1 x UMIK-1, USB microphone with unique calibration file for accurate acoustic measurements

Powered by Device Console

Specifications

  • Digital Signal Processor Engine: Analog Devices Floating point DSP SHARC ADSP21489
  • Internal Processing resolution& Sample rate: 32 bit / 48kHz
  • Input/Output Configuration: 2 in / 4 out

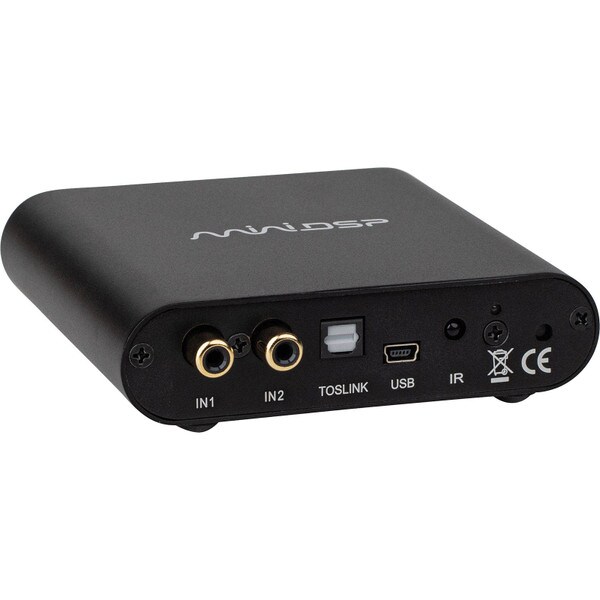

  • Audio Input Connectivity
    -Unbalanced analog input, RCA terminated
    -Stereo Digital Inputs: TOSLINK (optical)
    -Stereo USB audio input: USB Audio
    -Supported ASCR: 20~216kHz

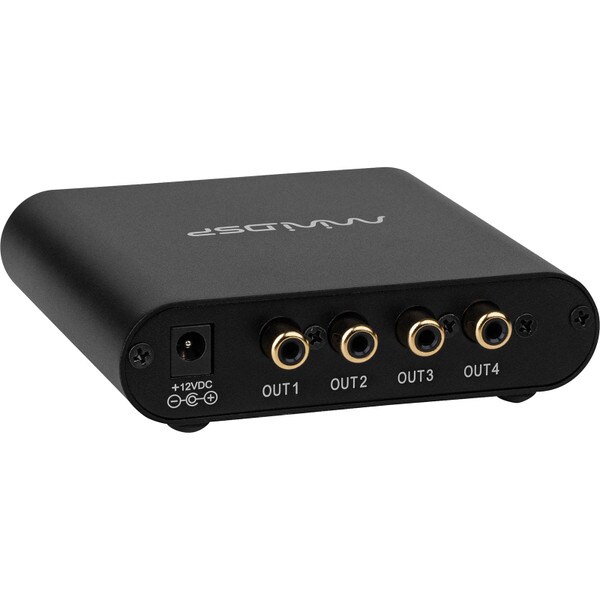

  • Audio Output Connectivity:     Unbalanced output, RCA terminated

  • Input / Output Max Levels
    -IN: 2Vrms / 4Vrms (jumper-selectable)
    -OUT: 2Vrms
  •  Input Impendence:  10 kΩ
  • Output Impedance: 560 Ω
  • Calibration Software: DDRC-24 plugin
  • Filtering Technology: Dirac Live 3.x
  • DSP Presets: Up to 4 presets
  • Dimensions: 27 x 119 x 107 mm
  • Power: 12 VDC single supply 2.1 mm round plug / 2.5W

Product Details

BrandminiDSP
ModelDDRC-24
Part Number230-3430
UPC848864071374
Unit of MeasureEach
Weight1.1
