Overview
The miniDSP C-DSP 6x8 is a Digital Signal Processor (DSP) targeting mobile/car audio installations. Leveraging years of experience building reliable platforms, miniDSP engineered the C-DSP 6x8 to pack plenty of processing power and I/O into a small and sturdy enclosure—a perfect fit for installations with limited space.
On the hardware side, the audio configuration of 6 x inputs (analog and digital) by 8 x outputs is perfect for multi-way setups. Don't be fooled by its size or its price, this small enclosure packs high quality converters and enough DSP power to make your audio tweaking dreams come true. On the software side, the software application allows real time control of the unit via its driverless USB interface. The onboard microSD card slot supports offline configuration and firmware updates if you ever miss your laptop. Finally, the C-DSP 6x8 will follow in the footsteps of our product line with constant upgrades via new plug-ins and new features. Stay tuned for an exciting new ride!
Specifications:
• DSP converter: Analog Devices fixed point DSP
• Sample rate: 28/56-bit / 48 kHz
• IO: 6 in / 8 out

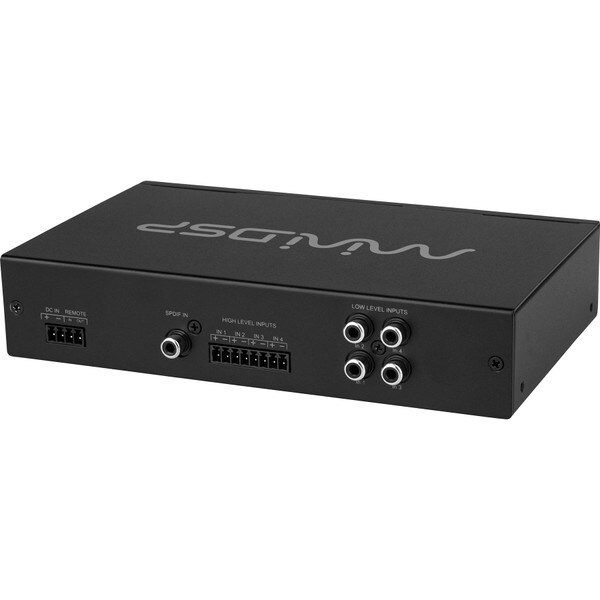

• Input connectors: 4 x high level terminal blocks, 4 x low level RCA, SPDIF

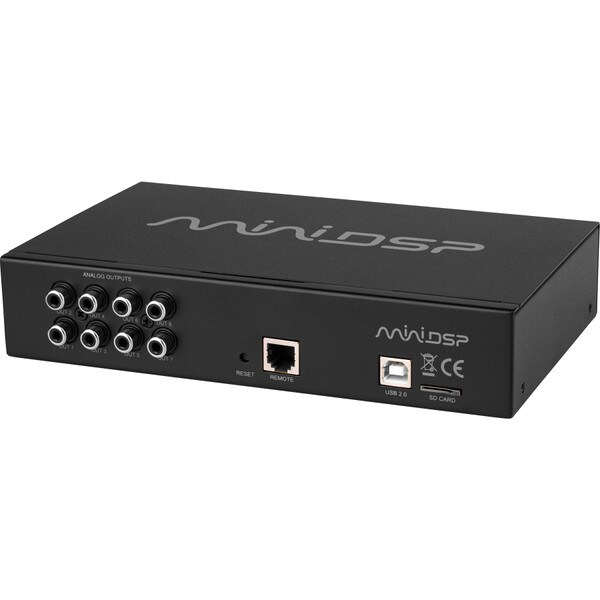

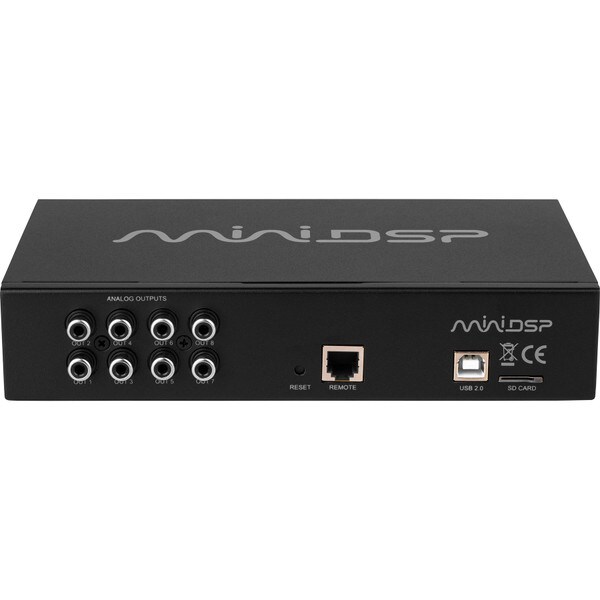

• Output connectors: 8 x RCA
• Max input level: 8 Vrms high level / 4 Vrms low level
• Max output level: 2 Vrms
• Input impedance: 20 kohms high level, 10 kohms low level
• Output impedance: 560 ohms
• Calibration software: C-DSP plugin
• Filtering technology: IIR
• DSP presets: Up to 4
• Features: Impulse response correction, infrared remote learning, Win/Mac compatible, room EQ wizard
• Power requirements: Isolated DC-DC conversion for car audio
• Dimensions: 1.6" x 8.1" x 4.8"
