CLEARANCE miniDSP 2x4 Digital Signal Processor

miniDSP
Part #230-320

CLEARANCE miniDSP 2x4 Digital Signal Processor

miniDSP
Part #230-320
Model: miniDSP 2x4
The miniDSP 2x4 is a flexible, pocket size DSP processor with 2 x analog IN and 4 x analog OUT. Combined with plug-in software for programming, you can configure the on board audio processing filters in real time from a PC or Mac computer.
Key Features
  • Plug and play USB driver and real time software configuration using miniDSP plug-ins
  • Customizable for use as a 2-way electronic crossover, parametric EQ, time delay, and more
  • 48 kHz sampling rate delivers CD/DVD quality audio
  • Can be powered by USB or 5-24 VDC for stand alone and car audio use
  • Nichicon Muse audiophile capacitors for minimal noise and distortion
Similar items that may interest you:
See all items in Digital Signal Processing
60 Day No Hassle Return Policy

Overview

miniDSP 2x4 Digital Signal Processor

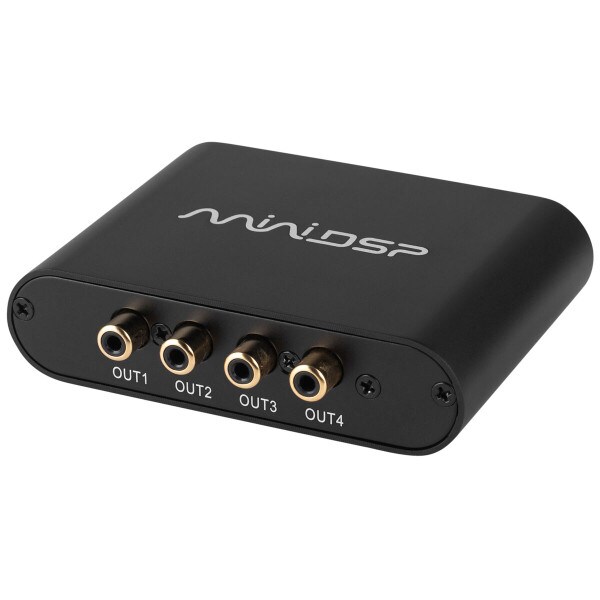

The miniDSP 2x4 is a pocket size Digital Signal Processor (DSP) with two analog inputs and four analog outputs. Typically connected between your analog source and a multi-channel amplifier, the embedded DSP algorithms allow for a wide range of tuning applications.

Whether its subwoofer tuning, multi-way crossover or even equalization of your stereo system, the 2x4 strength lies in its ease of use and flexibility. Based on a hardware plus software combination, you tune the system from user-friendly software on PC/Mac machine. The configuration from the driverless USB connection is live, real time and a onetime requirement. All settings are automatically stored and reloaded at boot up.

Software plug-in (sold separately): miniDSP 2x4 plug-ins

Thanks to 3rd-party tuning software like Room EQ Wizard and the miniDSP UMIK-1 USB measurement microphone, the miniDSP 2x4 makes audio tuning easy.

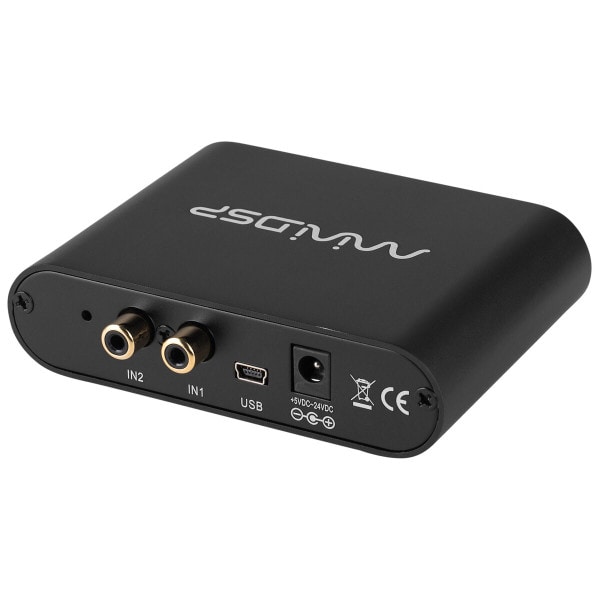

Specifications: • Digital signal processor engine: 28/56 bit • Host processor: 48 MHz microcontroller • Sample rate: 48 kHz • ADC/DAC data resolution: 24 bits • Analog audio input/output: Unbalanced RCA • Maximum input level: 0.9Vrms (RevA), 2Vrms (RevB) • Dynamic range ADC/DAC un-weighted: >98 dB • Input impedance: 6 K ohms • Maximum level, unbalanced, <1% THD: 0.9Vrms (2.5Vpp) • Output impedance: 560 ohms • Certification: CE, FCC, ROHS compliant • Power supply: Powered from USB cable, 5-24 VDC input via DC 2.1mm round connector • Current requirement: 5 VCD, 150mA • Dimensions: 1.02" H x 4.21" W x 3.7" D.

Product Details

BrandminiDSP
ModelminiDSP 2x4
Part Number230-320
UPC848864032887
Unit of MeasureEach
Weight0.65
