Yung SD100-6 100W Class D Subwoofer Plate Amplifier Module with 6 dB at 45 HzYung International's SD Series Class D subwoofer power amplifiers are equipped with the unique ability to operate continuously at full rated output—a performance attribute not shared by most home audio amp designs. The benefits of this remarkable reserve capacity include solid, punchy dynamic range and fewer "nuisance" shutdowns when operated at sustained high levels. A bass boost option enables the addition of 6dB of EQ centered at 45 Hz, perfect for sealed enclosures and even certain vented box alignments.
The amplifiers are also extremely compact, lightweight, and cool-running, allowing users to enjoy the advantages of compact system form factors and flexibility of placement. An internal peak limiting circuit prevents amplifier overload, and protection against internal and external faults is also provided. Input power requirements are user configurable to either 115 VAC or 230 VAC line voltage.

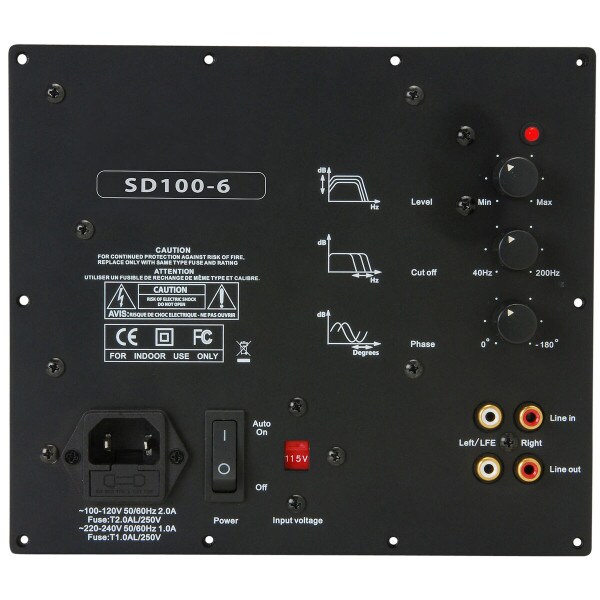

Room optimization and system integration are accomplished easily, thanks to the SD Series amps' inclusion of fully variable level, crossover frequency, and phase controls. Signal input is connected via dual RCA-type jacks, including the means to accept the output of an A/V receiver's LFE output, and dual RCA jacks are also provided to facilitate line level loop-through. When in standby mode, the amp's full active operation is engaged by signal presence of less than 1/2 watt.
Specifications: • Measured power output: 100 watts RMS into 4 ohms @ < 1.0% THD • Signal to noise ratio (at rated power): >90 dB • Input sensitivity (@ low level): 210 mV/50 Hz • Bass boost: 6 dB @ 45 Hz • Low pass adjustment: 40 Hz to 200 Hz • Phase adjustment: Continuously variable from 0º (normal) to 180º (reverse) • Power requirements: Switchable, 115/230 VAC, 50/60 Hz • Dimensions: 8" W x 7" H x 2-1/4" D; Cutout dimensions: 7-1/4" W x 6-1/4" H.
Yung SD100-6 Specifications
