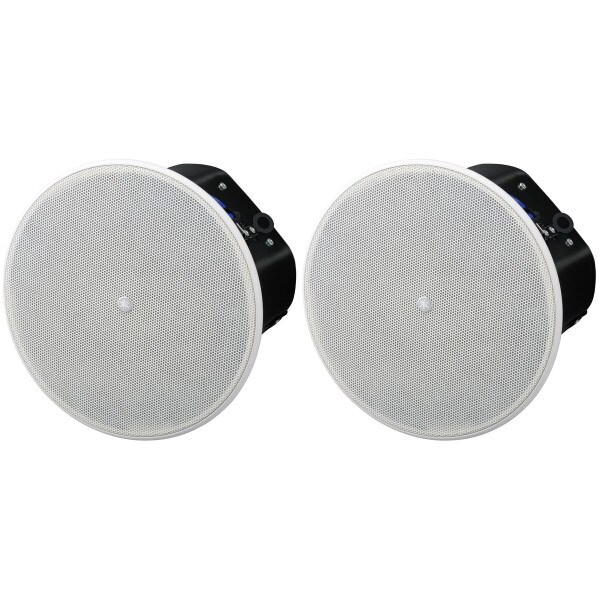

Yamaha VXC6W 6-1/2" 2-Way 70V / 100V Ceiling Speaker Pair - WhiteCommercial durability with Yamaha sound quality

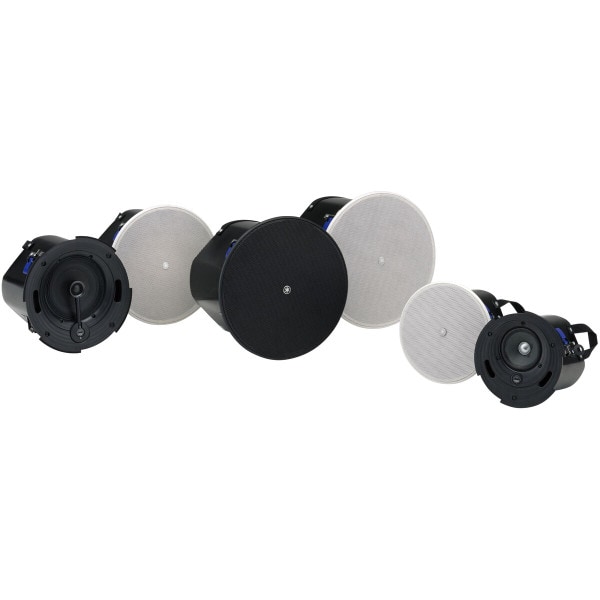

Yamaha developed the VXC Series speakers to address a demand in the installation market for speakers capable of providing superb music reproduction as well as crystal clear announcements for public address applications. They feature newly customized transducers with large, powerful magnetic circuits that increase driving and braking force substantially, as well as dedicated tweeter diaphragms and speaker cone paper made from a carefully-created blend of materials that help optimize sound reproduction. Enclosures are built tough to meet the demands of a wide variety of commercial environments, constructed from a carefully selected materials with just the right tensile strength, and designed with optimized tuning to offer a firm, tight low-end. From the networking components and the materials used for wiring and soldering, right down to the optimal placement of acoustic absorption material, a great deal of attention has been paid to even the smallest details of the series' design.

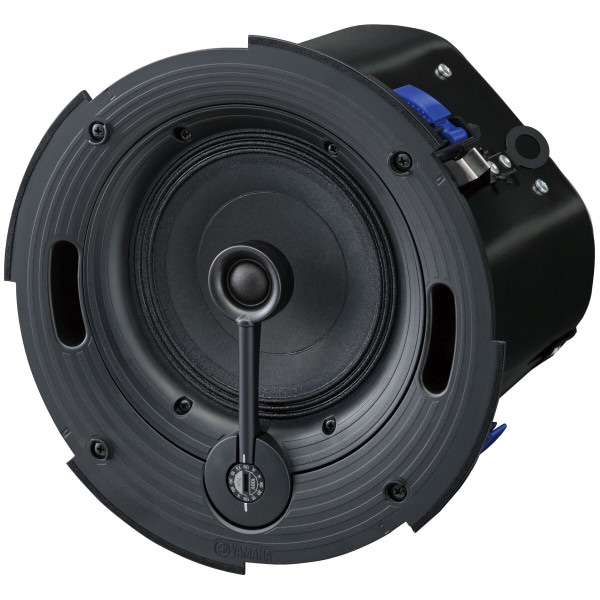

Several aspects of these speakers' design reflect a strong emphasis on functionality as well as the aesthetic features of their construction - effectively enhancing sound quality and speaker performance without disturbing the interior decor of the installation. This concept is evident in the hexagonal design featured on the grill that actually improves sound clarity by raising the aperture ratio. Even the innovative design of the VXC's tweeter improves sound clarity by providing unrestricted woofer movement.
Ready to install - quickly, safely, and hassle-free

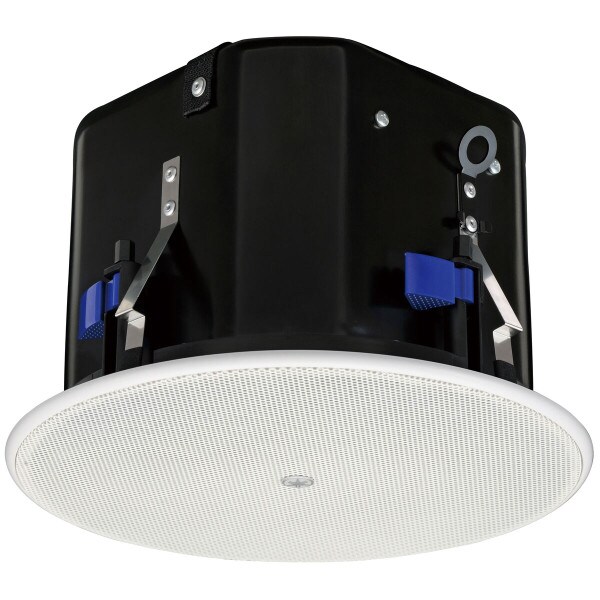

The VXC Series speakers' anti-drop tab allows them to be mounted temporarily in the ceiling, freeing your hands for better safety and ease of installation. An attached, flexible carrying band also makes the speakers very portable, allowing you to safely carry multiple speakers at once. Additionally, VXC Series speakers also come complete with O-rings and tile rails for a safer, smoother installation.
Specifications: • Speaker type: two-way coaxial, 6-1/2" woofer and 0.75" dome tweeter • Power rating: 75 watts noise/150 watts program/300 watts max • Coverage angle: 110° conical • 70V tap settings: 60W, 30W, 15W, 7.5W, 8 ohm bypass • 100V tap settings: 60W, 30W, 15W, 8 ohm bypass • Frequency response: 56 - 20,000 Hz • Sensitivity: 86 dB (1W/1m) • Max SPL: 111 dB (calculated) • Connector: Euroblock x 1 (4P, input+loop, 12 AWG max wire size) • Dimensions: 11.3" dia. x 8.1" H (286 x 205 mm)• Cutout size: 9.5" dia. (241 mm) • Sold in pairs.
