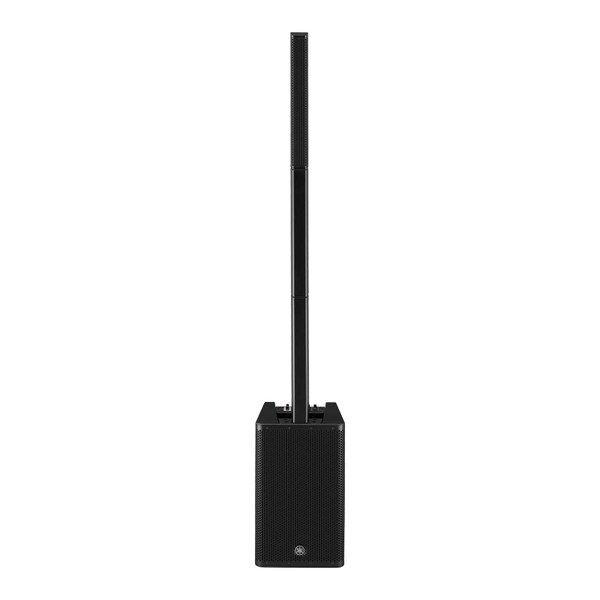

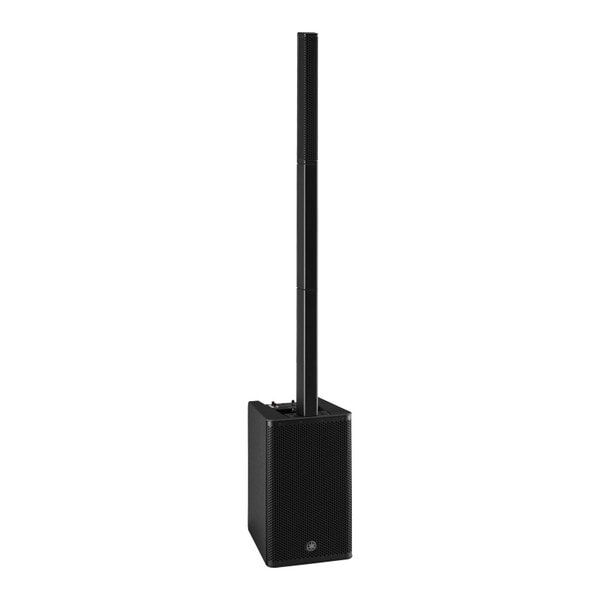

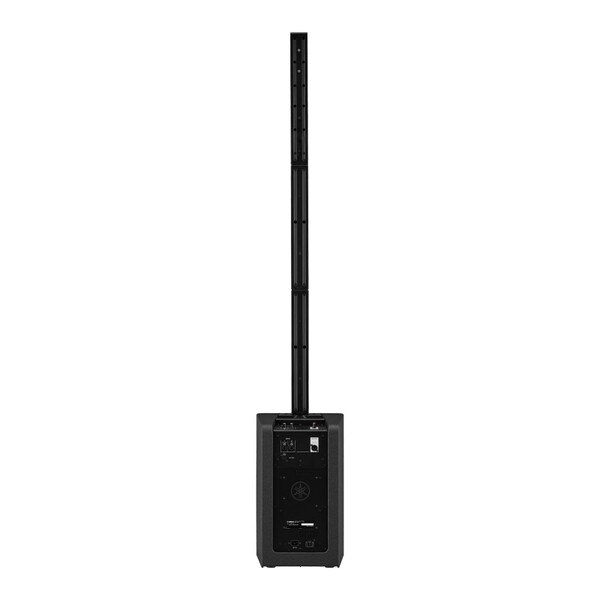

The Yamaha DXL1K is a column-type powered speaker that delivers an impressive 125dB SPL peak@1m sound output from its sleek, portable design. Ideal for a variety of applications, this system combines ease of setup and exceptional sound quality in a slim, lightweight body. Whether you're setting up for a live performance, a conference, or any event requiring high-quality audio, the DXL1K ensures powerful and clear sound.
Key Features
1100 Watt powered speaker system with 125dB SPL peak@1m
Slim, portable design for easy transport and setup
Quick assembly: attach the line-array speaker to the subwoofer cabinet
Link function for system expandability with compact mixers or STAGEPAS 1K mkII
High-quality PA system for live performances, conferences, and events

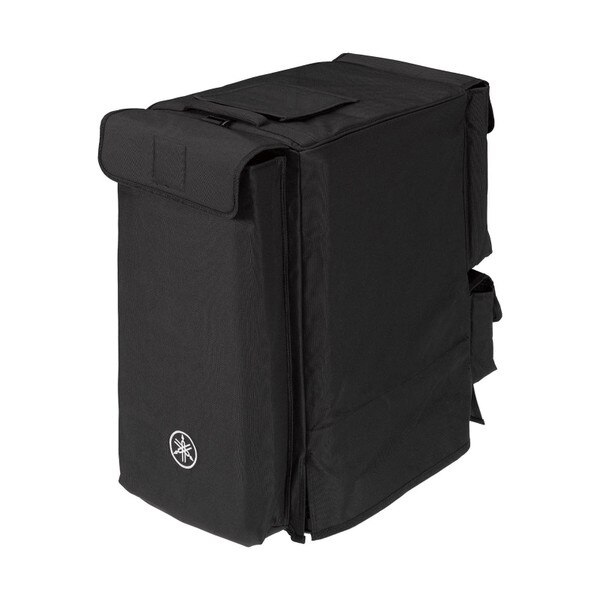

Dedicated carrying cart available separately for enhanced portability
Setting up the DXL1K is a breeze: simply attach the line-array speaker to the top of the subwoofer cabinet, and you’re ready to go. This ease of use, combined with the system’s powerful output, makes it perfect for users of all levels. Additionally, the Link function offers seamless expandability, allowing you to pair the DXL1K with a compact mixer or the fully compatible STAGEPAS 1K mkII for a comprehensive PA system.
Designed for ultimate portability and convenience, the DXL1K's slim body can be transported effortlessly, especially when paired with the dedicated carrying cart (sold separately). Despite its compact size, the system delivers robust, high-quality sound that fills any venue, making it ideal for musicians, presenters, and event organizers.
Experience the perfect blend of power, portability, and performance with the Yamaha DXL1K 1100 Watt Powered Speaker System. Whether you’re performing on stage or delivering a keynote, this versatile speaker system ensures your audio is always top-notch.
General Specifications
Speaker type: Powered subwoofer with a line array speaker
Frequency range: 37 Hz - 20 kHz (-10dB)
Coverage area: H170゚ x V30゚
Crossover: 240 Hz
LF Powered subwoofer: 12” (30 cm) Cone
HF Line array speaker: 1.5” (3.8 cm) Cone x 10
Amplifier: Class-D
Power rating: Dynamic 1100 W
Power consumption: 25 W (Idle), 91 W (1/8 power)
Power requirements: 110-120 V 60 Hz
Processors: MODE (SPEECH/MUSIC/CLUB)

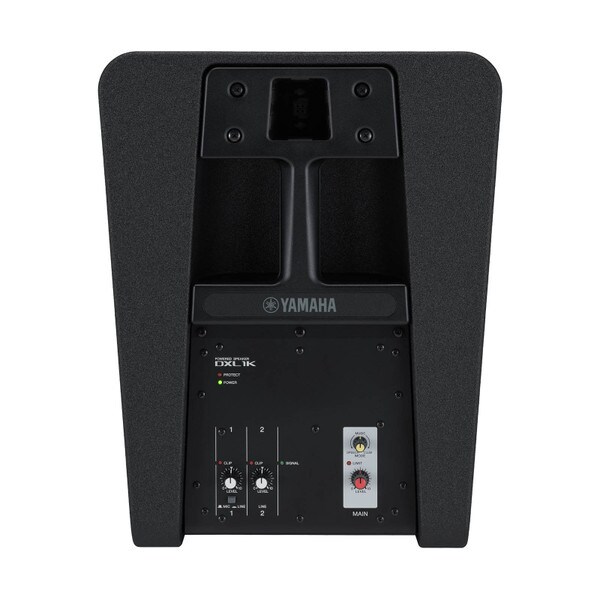

I/O connectors: INPUT1: Combo x1 (mic/line), INPUT2: Combo x1 (line), LINK IN: XLR x1, LINK OUT: XLR x1
Handle: Top of powered subwoofer x1
Dimensions (WxHxD): System: 334 x 2,000 x 418 mm (maximum), Line array speaker: 67 x 582 x 86 mm, Powered subwoofer: 334 x 550 x 418 mm
Weight: 23.0 kg (maximum), Line array speaker: 1.8 kg, Powered subwoofer: 20.0 kg
