BUYOUT YDT5090-158 1-7/8" x 3-7/16" Paper Cone Full-Range Speaker 8 Ohm

1 Question, 10 Answers or
Factory Buyouts
Part #289-2284

BUYOUT YDT5090-158 1-7/8" x 3-7/16" Paper Cone Full-Range Speaker 8 Ohm

Factory Buyouts
Part #289-2284
Model: YDT5090-158
1 Question, 10 Answers or

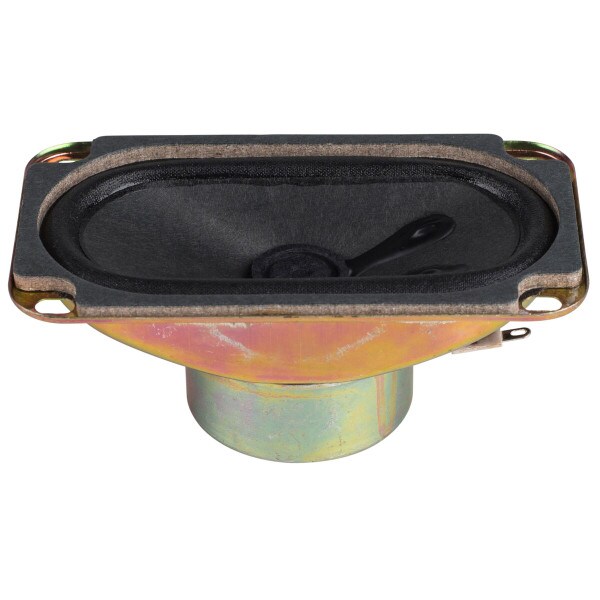

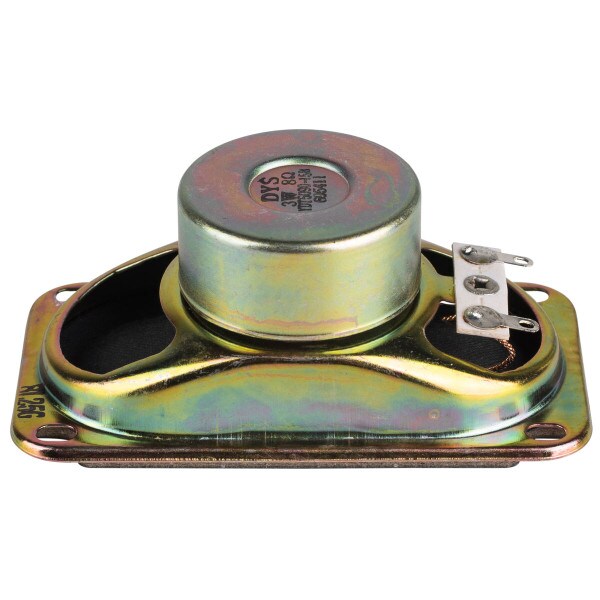

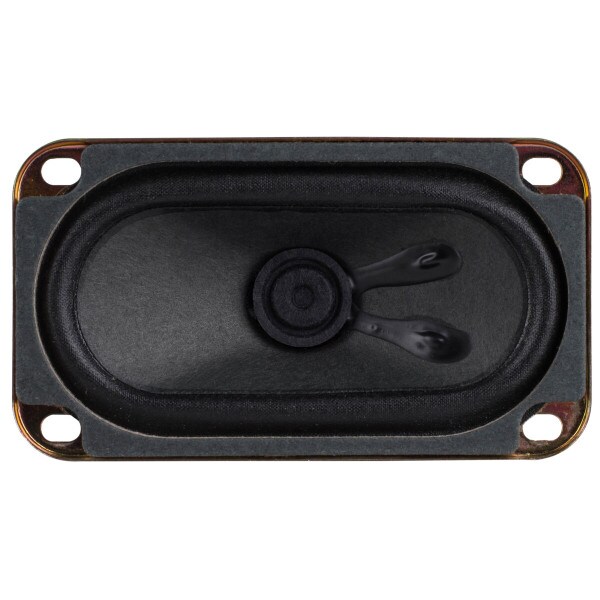

This 8 ohm 1-7/8" x 3-7/16" full range driver is a replacement speaker with a paper cone and a fabric surround. This driver will produce a natural frequency response with minimal resonance.
Key Features
  • Gasket on the face for improved rear-mount applications
  • 4 holes on the frame allows for easy mounting
  • Experiment with wild speaker projects thanks to the low cost
BUYOUT $0.97
Bulk Pricing
Quantity:Qty: 1-9 $0.97/ea
Quantity:Qty: 10-99 $0.78/ea
Quantity:Qty: 100-499 $0.59/ea
Quantity:Qty: 500+$0.39/ea
Order in the next 0 hr 54 min to ship today. Details

6551In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

YDT5090-158 1-7/8" x 3-7/16" Paper Cone Full-Range Speaker 8 Ohm

We at Parts Express constantly hunt the globe for unique buyout opportunities so that we can provide our customers with the best products at the lowest cost. We are excited to offer this 1-7/8" x 3-7/16" speaker, which is part of a massive speaker factory buyout from Brazil. Use this speaker in any low-cost audio project whether it be a portable speaker, adding music to toys and models, or building an enormous line array for pennies. At such an economical price, these drivers won't last forever, quantities are limited.

Product Details

BrandFactory Buyouts
ModelYDT5090-158
Part Number289-2284
UPC848864048642
Unit of MeasureEach
Weight0.2

Product Specifications

Nominal Diameter2 x 3"
Power Handling (RMS)3 Watts
Power Handling (MAX)6 Watts
Impedance8Ω
Frequency Response250 to 12,000Hz
Sensitivity75.6dB 2.83V/1m

Thiele-Small Parameters

Resonant Frequency (Fs)248.3Hz
DC Resistance (Re)7.578Ω
Voice Coil Inductance (Le)0.1616mH
Mechanical Q (Qms)4.359
Electromagnetic Q (Qes)7.83
Total Q (Qts)2.8
Compliance Equivalent Volume (Vas)0.04238ft³

Materials of Construction

Cone MaterialPaper
Surround MaterialCloth
Voice Coil Wire MaterialCopper
Voice Coil FormerPaper
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter3.54" x 1.975"
Baffle Cutout Diameter3.25" x 1.69"
Depth1.26"
# Mounting Holes4
