BUYOUT YDT0415-37BP 1-5/8" x 5" Paper Cone Full-Range Speaker 16 Ohm

Factory BuyoutsPart # 289-2266
Model: YDT0415-37BP
The YDT0415-37BP 16 ohm full-range replacement driver is an OEM replacement speaker for various Philips CRT televisions released in the late 1990's. The paper cone and voice coil former with foam surround ensure that this driver will produce smooth frequency response with minimal resonances.

Key Features

  • Paper cone and voice coil former with foam surround for minimal resonance
  • Foam front gasket ensures good seal when rear mounted
  • Shielded magnet for use near sensitive electronic devices
  • Ideal for small line array designs thanks to its low cost
BUYOUT $0.29
Bulk Pricing
17530 In Stock
Get Notified When Available

We'll send you an email when YDT0415-37BP 1-5/8" x 5" Paper Cone Full-Range Speaker 16 Ohm is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

YDT0415-37BP 1-5/8" x 5" Paper Cone Full-Range Speaker 16 Ohm

We at Parts Express constantly hunt the globe for unique buyout opportunities so that we can provide our customers with the best products at the lowest cost. We are excited to offer this 1-5/8" x 5" speaker, which is part of a massive TV speaker factory buyout from Brazil.

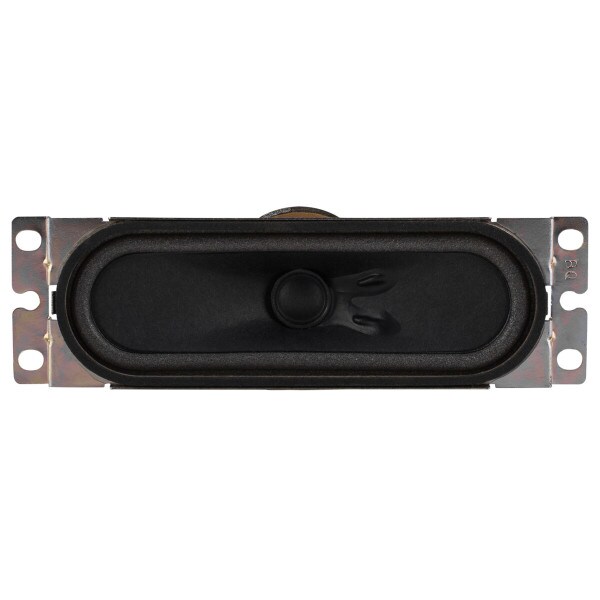

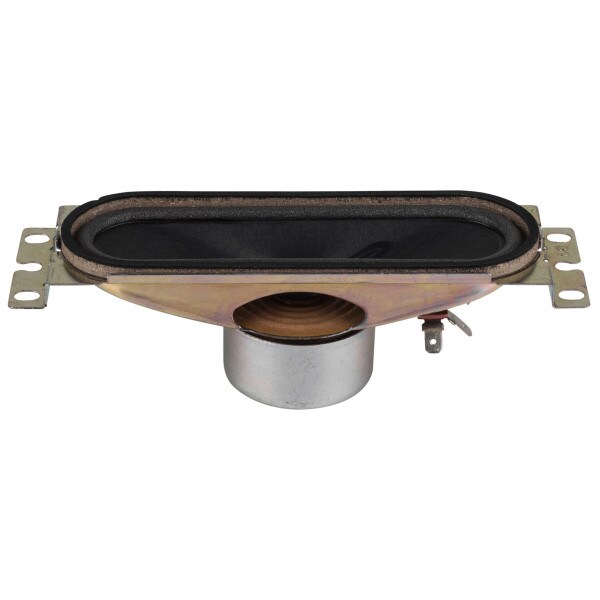

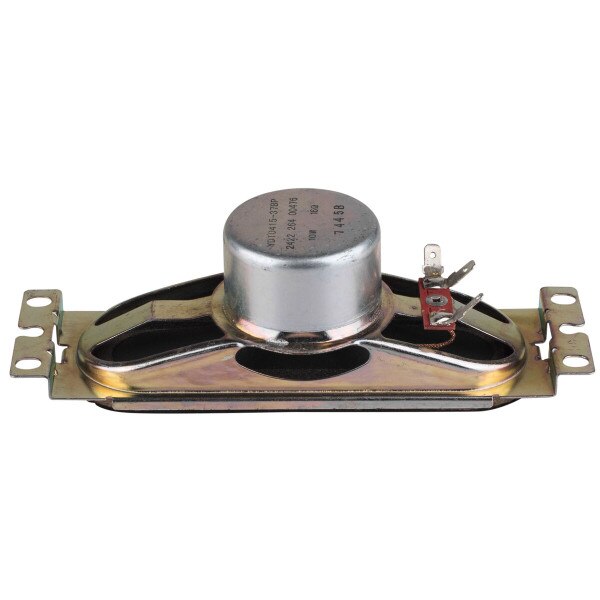

Originally found in a various Philips CRT TV's, this speaker features a rectangular design with a rigid stamped steel basket. On this driver, the mounting tabs sit 1/4" behind the mounting flange, but thanks to the front mounted foam gasket this driver could easily be installed on the back of your baffle. Thanks to the large spider, this driver remains linear up to the limits of its excursion to minimize distortion at high output. In addition, the magnet is fully shielded allowing you to use this driver near any electronics that are sensitive to stray magnet fields.

Use these speakers in any low cost audio project whether it be a portable speaker, adding music to toys and models, or building an enormous line array for pennies. At such an economical price, these drivers won't last forever, quantities are limited.

Product Details

BrandFactory Buyouts
ModelYDT0415-37BP
Part Number289-2266
UPC848864048550
Unit of MeasureEach
Weight0.35

Product Specifications

Nominal Diameter1 x 5"
Power Handling (RMS)10 Watts
Power Handling (MAX)15 Watts
Impedance16Ω
Frequency Response150 to 13,000Hz
Sensitivity82.1dB 2.83V/1m
Voice Coil Diameter0.6"

Thiele-Small Parameters

Resonant Frequency (Fs)133Hz
DC Resistance (Re)15.76Ω
Voice Coil Inductance (Le)1.272mH
Mechanical Q (Qms)4.42
Electromagnetic Q (Qes)3.95
Total Q (Qts)2.08
Compliance Equivalent Volume (Vas)0.061ft³
Mechanical Compliance of Suspension (Cms)0.832mm/N
BL Product (BL)2.387T·m
Diaphragm Mass Inc. Airload (Mms)1.71g
Surface Area of Cone (Sd)38.48cm²

Materials of Construction

Cone MaterialPaper
Surround MaterialFoam
Voice Coil Wire MaterialCopper
Voice Coil FormerPaper
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter(with mounting tabs: 6") 5.25" x 1.75"
Baffle Cutout Diameter4.875" x 1.5"
Depth1.875"
# Mounting Holes4
