BUYOUT YDP512-12 2" x 4-3/8" Paper Cone Shielded Full-Range Speaker 8 Ohm

Factory Buyouts
Part #289-2346
Model: YDP512-12

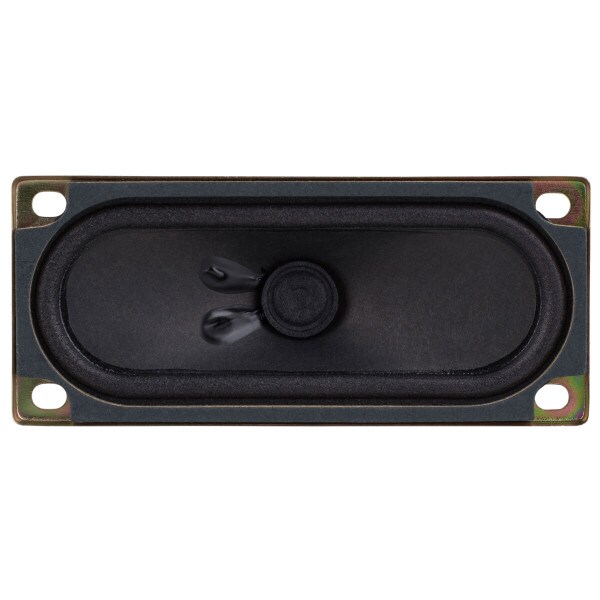

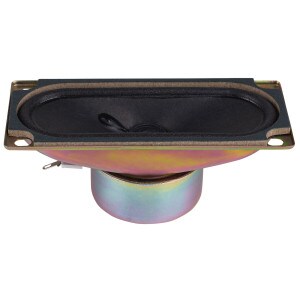

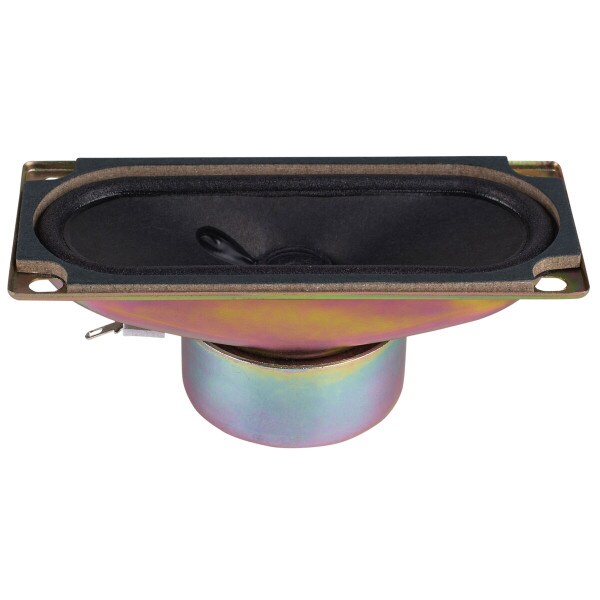

The 4-3/4" x 2" YDP512-12 8 ohm driver uses a paper cone and foam surround to produce natural full-range response from 150 to 15,000 Hz. Thanks to the powerful shielded motor this driver has excellent efficiency for its size.
Key Features
  • Shielded magnet assembly is suitable for use near sensitive electronics
  • High efficiency to deliver high output with little input power
  • Flat mounting flange for simple front or rear mount installation
  • Perfect for use in slim designs such as sound bars and portable speakers
BUYOUT $0.97
Bulk Pricing
Quantity:Qty: 1-9 $0.97/ea
Quantity:Qty: 10-99 $0.78/ea
Quantity:Qty: 100-499 $0.58/ea
Quantity:Qty: 500+$0.39/ea
Order in the next 0 hr 58 min to ship today. Details

5755In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

YDP512-12 2" x 4-3/8" Paper Cone Shielded Full-Range Speaker 8 Ohm

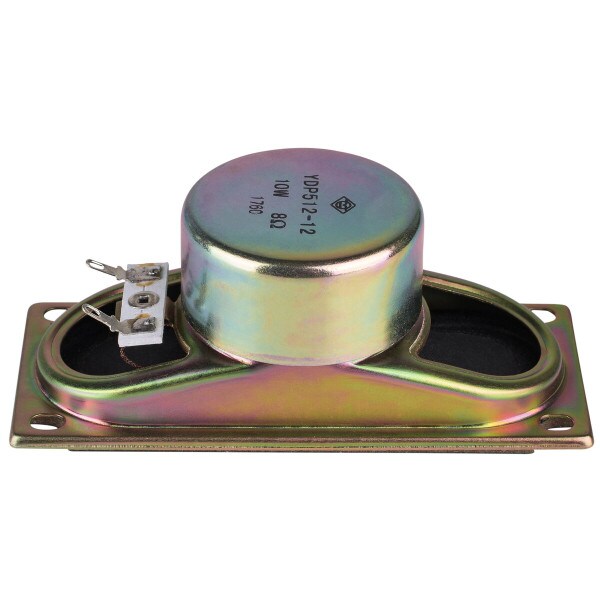

The YDP512-12 full-range driver has a 4-3/4" x 2" mounting flange allowing it to easily fit in slim speaker designs. This driver uses a fully shielded motor for use near devices that are sensitive to stray magnetic fields. With 87 dB efficiency, this driver can produce an impressive amount of output for its size making it perfect for designs such as speaker bars, TV speakers, and portable Bluetooth enabled projects.

Product Details

BrandFactory Buyouts
ModelYDP512-12
Part Number289-2346
UPC848864048956
Unit of MeasureEach
Weight0.5

Product Specifications

Nominal Diameter2 x 3"
Power Handling (RMS)10 Watts
Power Handling (MAX)15 Watts
Impedance8Ω
Frequency Response150 to 15,000Hz
Sensitivity87dB 2.83V/1m
Voice Coil Diameter0.5"

Thiele-Small Parameters

Resonant Frequency (Fs)150Hz
DC Resistance (Re)7.1Ω
Voice Coil Inductance (Le)0.63mH
Mechanical Q (Qms)7.43
Electromagnetic Q (Qes)2.02
Total Q (Qts)1.56
Compliance Equivalent Volume (Vas)0.061ft³
Mechanical Compliance of Suspension (Cms)0.164mm/N
BL Product (BL)4.76T·m
Diaphragm Mass Inc. Airload (Mms)6.84g
Surface Area of Cone (Sd)13.33cm²

Materials of Construction

Cone MaterialPaper
Surround MaterialFoam
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter4.75" x 2"
Baffle Cutout Diameter4.375" x 1.75"
Depth1.75"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.1ft³
Sealed F3135Hz
Vented Volume0.89ft³
Vented F378Hz
