CLEARANCE Xantech DL85 LCD/CFL Dinky Link IR Receiver

XantechPart # 182-632
Model: DL85
These small IR receivers have been designed for mounting in very small spaces. They may be mounted under shelf edges, cabinet ledges, in wall speakers, etc.

Key Features

  • Wire channel for clean installation
  • System testing red-talk-back LED

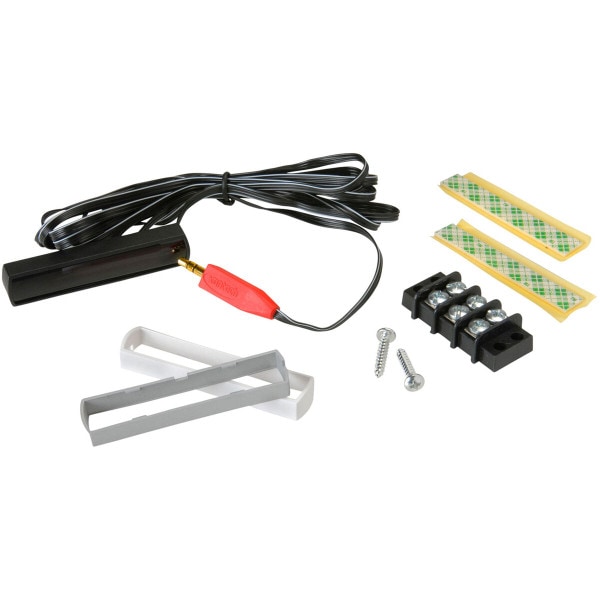

  • Includes 3-terminal block for easy extension to remote room locations
CLEARANCE $223.00
+ FREE SHIPPING
Bulk Pricing
1 In Stock
Get Notified When Available

We'll send you an email when Xantech DL85 LCD/CFL Dinky Link IR Receiver is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

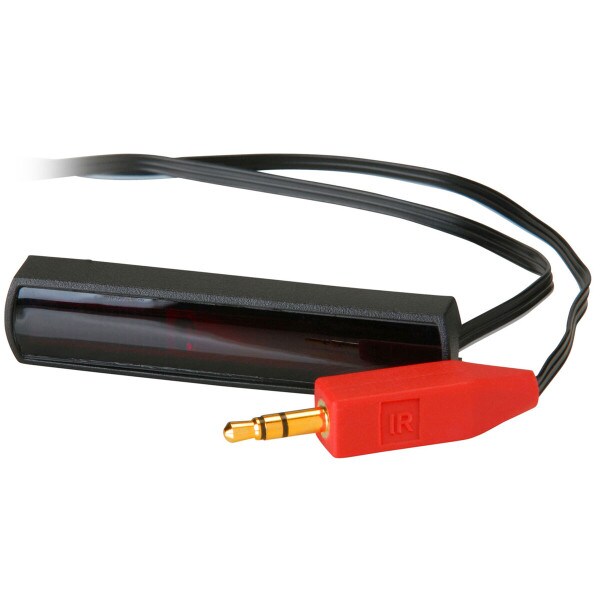

Xantech DL85 LCD/CFL Dinky Link IR Receiver

These small IR receivers have been designed for mounting in very small spaces. They may be mounted under shelf edges, cabinet ledges, in wall speakers, etc. – anywhere an inconspicuous appearance is desired. The high sensitivity of these receivers allows placement behind speaker grilles and still receive IR commands up to 80 ft. away.

Features and Specifications: • Infrared carrier frequency bandwidth: 30 - 60 kHz • Reception range: Up to 80 ft. • Reception angle: +/- 60 degrees • Maximum transmission length: 1 mile using 18 gauge wire • Maximum current output: 100mA • Drives IR emitters through Xantech connecting blocks,  controllers, etc. • Dimensions: 2.55" x 0.55" x 0.35" • Power requirements: +12VDC, 10mA.

Product Details

BrandXantech
ModelDL85
Part Number182-632
UPC042777318247
Unit of MeasureEach
Weight0.15

Product Specifications

Mounting StyleSurface Mount
