  • Wattgate 350i AU HC Black High Current Gold Plated Audio Grade IEC Connector

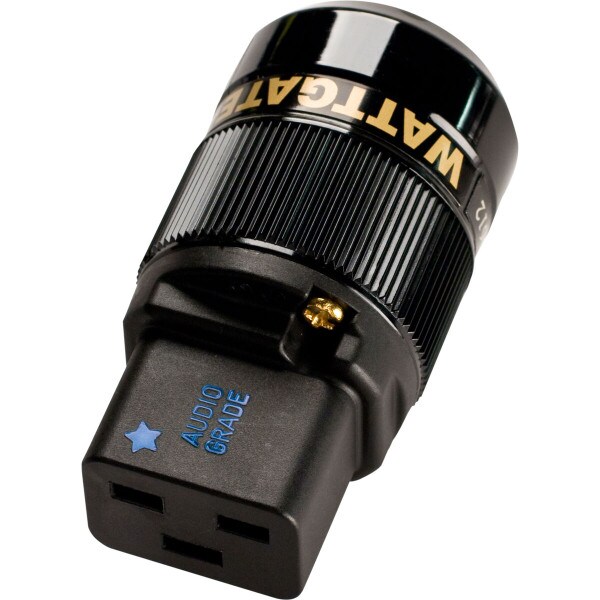

Wattgate 350i AU HC Black High Current Gold Plated Audio Grade IEC Connector

WattgatePart # 110-448
Model: 350i AU HC BLACK
2 Questions, 2 Answers or
Construction of the 350i HC is second to none, and features an elegant polycarbonate rear housing available in either black or clear with a durable hi-temperature rated front housing. Guaranteed for pristine performance.

Key Features

  • 20A rated
  • Cryogenically treated
  • Super thick contact tangs
  • Three-layer 24k gold plating process
  • Instantly provides superior performance over conventional plugs
Your Price: $100.87
+ FREE SHIPPING
MSRP: $151.99
Save $51.12 (34%)
Bulk Pricing
Quantity:Qty: 1-3 $100.87/ea
Quantity:Qty: 4+ $97.40/ea
8 In Stock
Get Notified When Available

We'll send you an email when Wattgate 350i AU HC Black High Current Gold Plated Audio Grade IEC Connector is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Wattgate 350i AU HC Black High Current Gold Plated Audio Grade IEC Connector

WattGate is widely known for producing the best audio grade power connectors in the industry, and the 350i HC continues this legacy. Construction of the 350i HC is second to none, and features an elegant polycarbonate rear housing available in either black or clear with a durable hi-temperature rated front housing. The 350i HC is designed to be adaptable to a wide range of power cables the removable insert can accommodate cable diameters from 0.300" (7.62mm) to 0.655" (16.63mm).

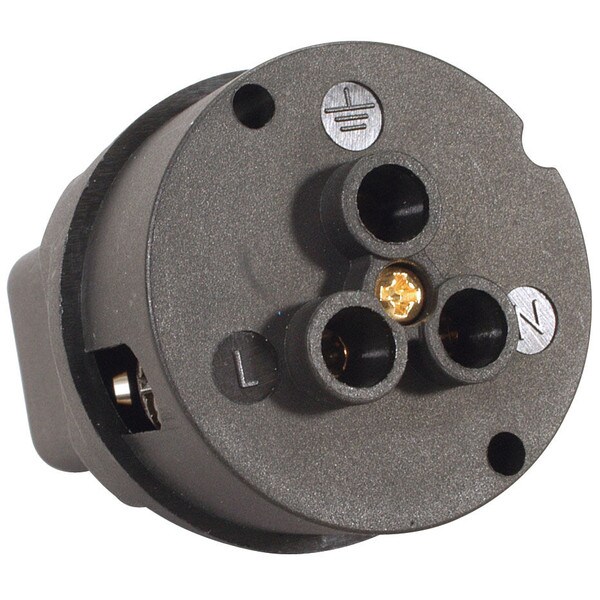

Installation is simplified due to clearly marked, tightly-spaced, funnel shaped holes to guide the conductors into the unique Perma-Lock™ terminals. Perma-Lock™ terminals work in the following way: As the terminal screw tightens down on the contact tang, it compresses the wire underneath the tang, and the screw exerts an upwards lift of the collar overleaf. This lifting action "locks up" the threads screws. Stress on the terminals is virtually eliminated. Heat cycling and vibration cannot loosen the screw.

The real departure the 350i HC takes from conventional IEC connectors lies in the contact elements themselves. Their contacts are engineered to posses a high spring rate to securely grip the connector. In addition, a three-layer plating process is added: Oxygen free copper plating, electrolysis nickel, and finally 24k gold plating dramatically improves conductivity and prevents corrosion. Plug is cryogenically treated, rated at 125 VAC, 20A, and accepts up to 10 gauge wire.

Product Details

BrandWattgate
Model350i AU HC BLACK
Part Number110-448
UPC601431104482
Unit of MeasureEach
Weight0.2

Product Specifications

ConfigurationIEC C19
Current Rating20A
Power Connector TypeCable Mount
