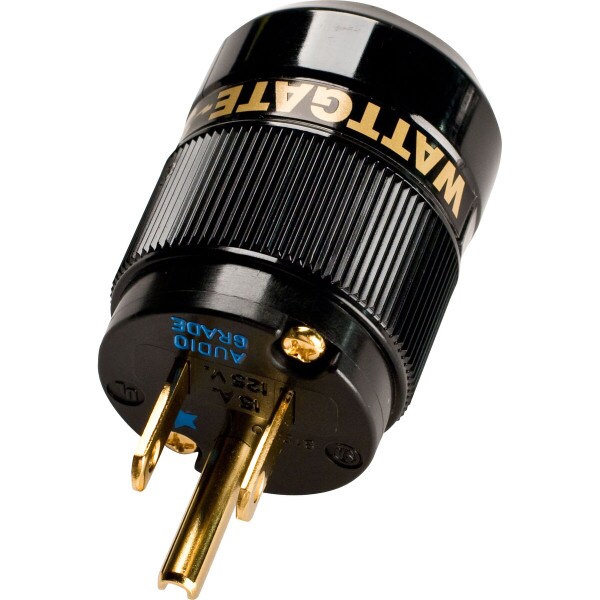

Wattgate 330i AU Black Gold Plated Audio Grade Edison AC Power Connector

WattgatePart # 110-437
Model: 330i AU BLACK
If you are searching for a simple way to make a big improvement in your audio or home theater system, look no further. WattGatte's 330i is designed for fast, simple installation and pristine performance.

Key Features

  • Cryogenically treated
  • Super thick contact tangs
  • Three-layer 24k gold plating process
  • Instantly provides superior performance over conventional plugs
Similar items that may interest you:
Wattgate 330i Ag Blue Silver Plated Audio Grade Edison AC Power Plug Connector
Price: $94.48Part # 110-427
See all items in AC Power Connectors
Your Price: $97.00
MSRP: $145.99
Save $48.99 (34%)
Bulk Pricing
Quantity:Qty: 1-3 $97.00/ea
Quantity:Qty: 4-24 $92.02/ea
Quantity:Qty: 25+ $85.15/ea
5 In Stock
Get Notified When Available

We'll send you an email when Wattgate 330i AU Black Gold Plated Audio Grade Edison AC Power Connector is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Wattgate 330i AU Black Gold Plated Audio Grade Edison AC Power Connector

If you are searching for a simple way to make a big improvement in your audio or home theatre system, look no further. The WattGate™ 330I has been designed for fast, simple installation and worry-free performance. The construction of the 330I is built to last and features an elegant polycarbonate rear housing available in either black or clear with a durable nylon-tough front housing. The 330I has been designed to be adaptable to a wide range of power cables the removable insert can accommodate cable diameters from 0.300" (7.62 mm) to 0.655" (16.63 mm).

Installation has been further simplified due to color coded, tightly-spaced, funnel shaped holes to guide the conductors into the unique Perma-Lock™ terminals. The Perma-Lock™ terminals work in the following way: As the terminal screw tightens down on the contact tang, it compresses the wire underneath the tang, causing the screw to exert an upwards lift of the collar overleaf. This lifting action "locks up" the threads screws. Stress relieving of the terminals is virtually eliminated. Heat cycling and vibration cannot loosen the screw.

The real secret behind the 330I lies with the contact elements themselves. Super thick contact tangs are used along with a three-layer plating process: Oxygen free copper plating, electroless nickel, and finally 24k gold plating dramatically improves conductivity and prevents corrosion. Plugs are 125V, 15 amp and can accept up to10 gauge wire.

Product Details

BrandWattgate
Model330i AU BLACK
Part Number110-437
UPC601431104376
Unit of MeasureEach
Weight0.3

Product Specifications

ConfigurationNEMA 5-15 Edison
Current Rating15A
Power Connector TypeCable Mount
