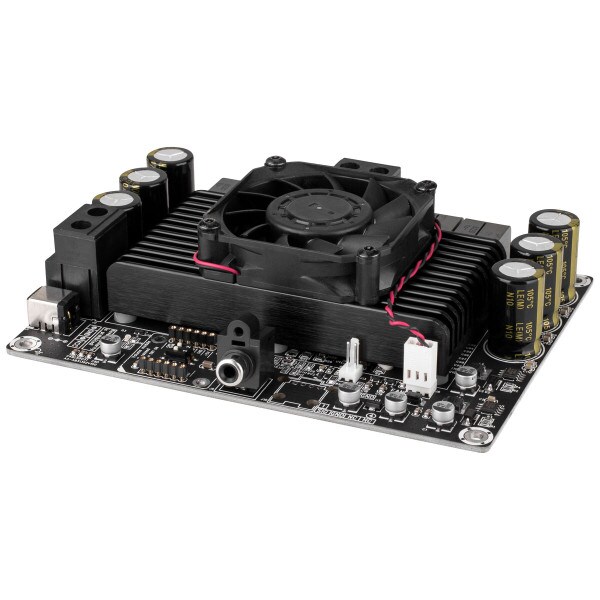

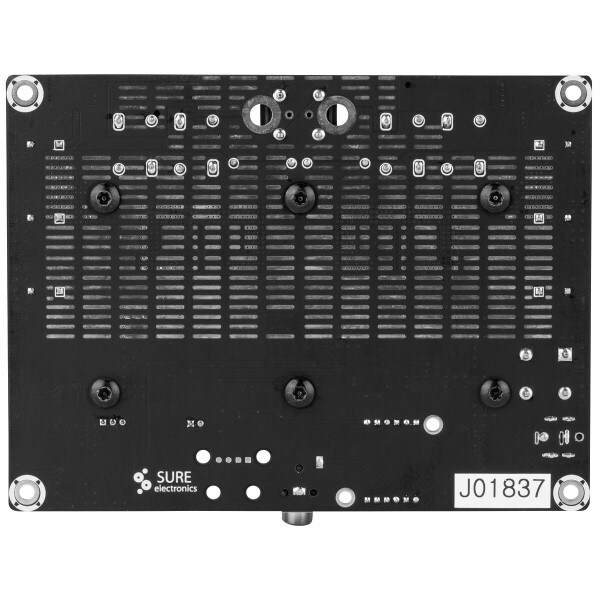

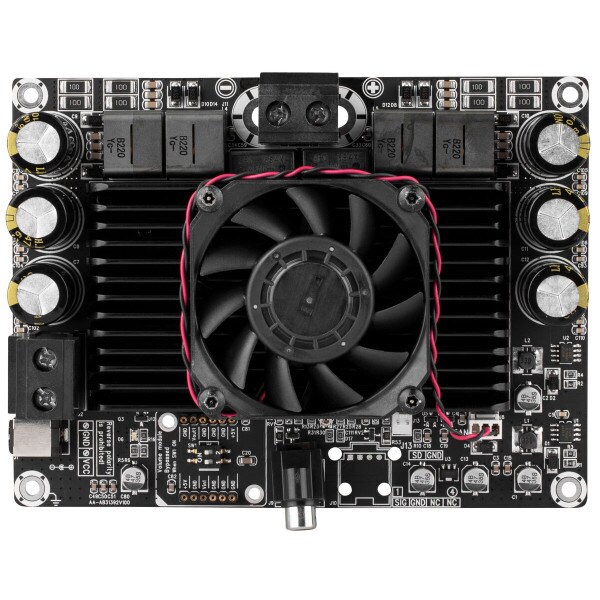

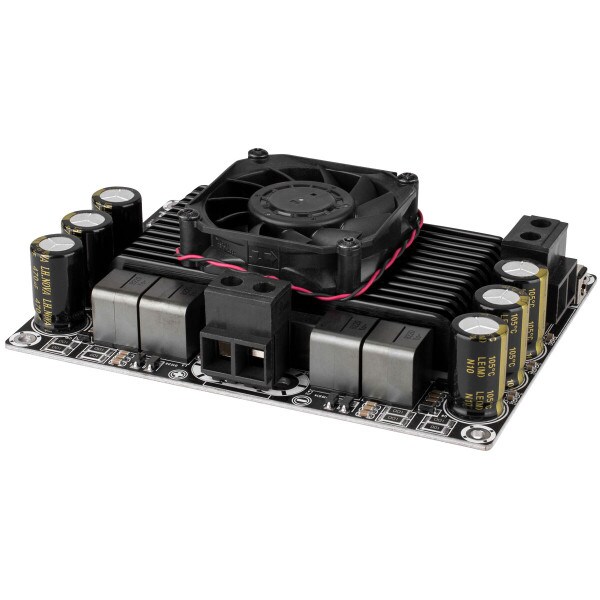

CLEARANCE WONDOM AA-AB31242 1x600W Class D Audio Amplifier Board (T-Amp Technology)

WONDOMPart # 320-3346
Model: AA-AB31242
Design your own powered subwoofer or subwoofer audio amplifier with Sure's 600 watt mono amp board. It's small in size, but ready to handle high power demanding subwoofers.

Key Features

  • Perfect for use as a subwoofer amplifier for home or vehicle
  • Up to 600W of Class-D clean power
  • Versatile 1.5-ohm stability
  • Over-engineered protection circuits
  • Requires 24 to 40 VDC power supply
  • Robust heatsink with two-stage cooling fan
  • Click and pop noise reduction
Get Notified When Available

We'll send you an email when WONDOM AA-AB31242 1x600W Class D Audio Amplifier Board (T-Amp Technology) is back in stock or available for preorder.

60 Day No Hassle Return Policy

Overview

WONDOM AA-AB31242 1x600W Class D Audio Amplifier Board (T-Amp Technology)

This mid power mono amplifier board means serious business! This audio amplifier board cranks out 600 watts of power using WONDOM T-AMP technology, featuring low distortion and low noise level. For do-it-yourselfers, looking for a subwoofer amp for your home or vehicle.

A robust heatsink, two-stage cooling fan, as well as protection circuits to protect against over/under voltage, over current, short circuit, and over temperature conditions are built-in for years of enjoyment. Three fixed gain settings allow you to match the amplifier to your source, and use your source as the volume control or Sure's plug in volume control option. A 24 to 40 VDC power supply is required.

Note: The minimum recommended wire gauge to be used for power is 16 AWG.

Specifications:
• Power output (w/ 36 VDC power supply): 600W x 1 (1.5 ohms, THD 10%), 393W x 1 (1.5 ohms, THD 1%)
• Minimum impedance: 1.5 ohms
• Frequency response: 20 to 20,000 Hz (±3 dB)
• SNR: 93 dB (393W @ 1.5 ohms THD+N 1%)
• Recommended power supply: 24 to 40 VDC, 16.3A regulated
• Fixed gain settings: 28 dB, 30 dB, 32 dB
• Power input jack: 2.5 x 5.5 mm, center-positive
• Dimensions without RCA jack: 6" L x 4.5" W x 1.53" H

Product Details

BrandWONDOM
ModelAA-AB31242
Part Number320-3346
Unit of MeasureEach
Weight1.35

Product Specifications

Board Type1 Channel Mono Amp
Power (RMS/Channel 8 ohms)101 - 250 Watts
