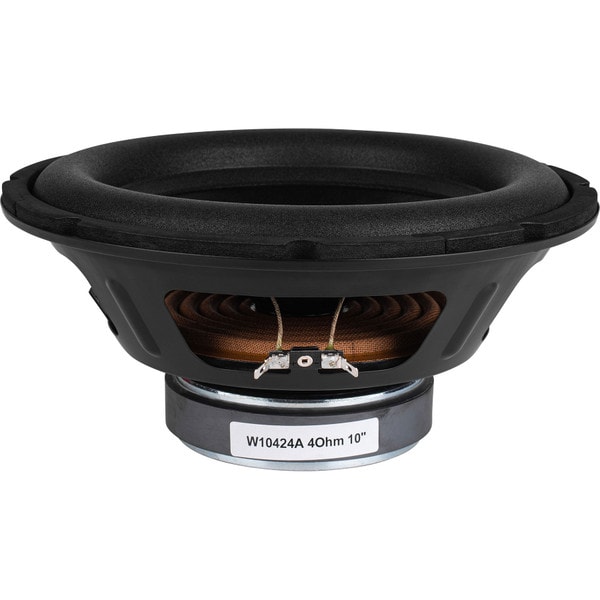

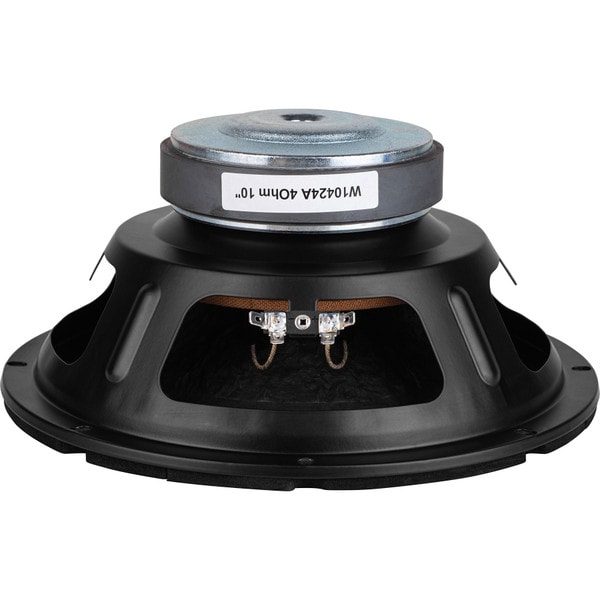

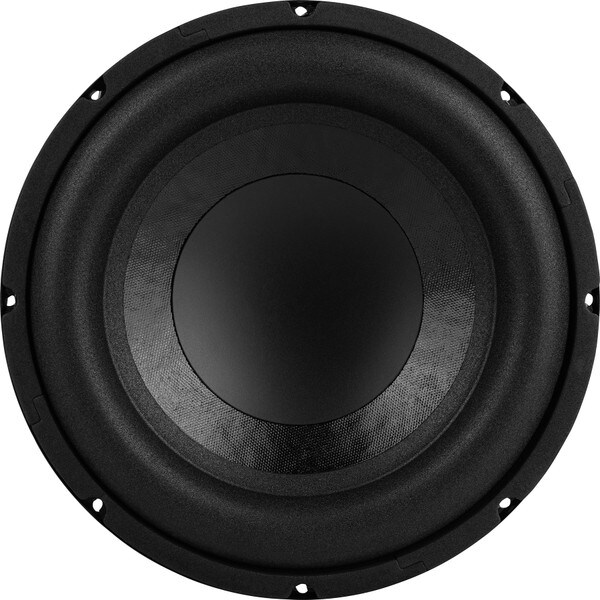

CLEARANCE 10" High Excursion Paper Cone Subwoofer Driver 4 Ohm

Dayton AudioPart # 299-628
Originally used in Dayton Audio's SUB-1000 and SUB-1000L, the W10424A 10" long excursion subwoofer driver is perfect for replacing blown drivers in powered subwoofers. Suitable for a variety of enclosure designs, this versatile driver is a great choice for adding some more low end on a budget.

Key Features

  • Oversized foam surround for high excursion and linear operation
  • Non-pressed paper cone minimizes unwanted resonances
  • Bumped back plate provides ample room for high excursion without damage
  • Pole vent keeps air flowing over the voice coil for improved power handling
Similar items that may interest you:
GRS 10SW-4 10" Poly Cone Subwoofer 4 Ohm
Price: $32.98Part # 292-482
See all items in Subwoofer Drivers
Get Notified When Available

We'll send you an email when 10" High Excursion Paper Cone Subwoofer Driver 4 Ohm is back in stock or available for preorder.

60 Day No Hassle Return Policy

Overview

10" High Excursion Paper Cone Subwoofer Driver 4 Ohm

The W10424A 10" long excursion subwoofer was originally used in the Dayton Audio SUB-1000 and SUB-1000L powered subwoofers, but it is also a great choice for new custom designs. The oversized surround and bumped back plate allow high excursion without damage to the voice coil or cone. With a rigid non-pressed paper cone the W1042A will produce power low frequency output without unwanted high frequency resonances. The higher Q design makes it perfect for a variety of applications. In sealed enclosures or open baffle designs you can expect a natural sound with extremely accurate response. However, for some serious punch and impact a ported design is a great option.

Product Details

BrandDayton Audio
Part Number299-628
UPC848791007385
Unit of MeasureEach
Weight5.7

Product Specifications

Nominal Diameter10"
Bolt Circle Diameter9.75
Power Handling (RMS)100 Watts
Power Handling (MAX)200 Watts
Impedance4Ω
Frequency Response30 to 800Hz
Sensitivity89.09dB 2.83V/1m
Voice Coil Diameter1.375"

Thiele-Small Parameters

Resonant Frequency (Fs)36.3Hz
DC Resistance (Re)3.77Ω
Voice Coil Inductance (Le)1.91mH
Mechanical Q (Qms)7.27
Electromagnetic Q (Qes)0.7
Total Q (Qts)0.64
Compliance Equivalent Volume (Vas)1.28ft³
Mechanical Compliance of Suspension (Cms)0.26mm/N
BL Product (BL)9.52T·m
Diaphragm Mass Inc. Airload (Mms)73.7g
Maximum Linear Excursion (Xmax)7mm
Surface Area of Cone (Sd)314cm²

Materials of Construction

Cone MaterialPaper
Surround MaterialFoam
Voice Coil Wire MaterialCopper
Voice Coil FormerAluminum
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter10.125"
Baffle Cutout Diameter9.125"
Depth4.75"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume1.49ft³
Sealed F348Hz
Vented Volume3.19ft³
Vented F323Hz
