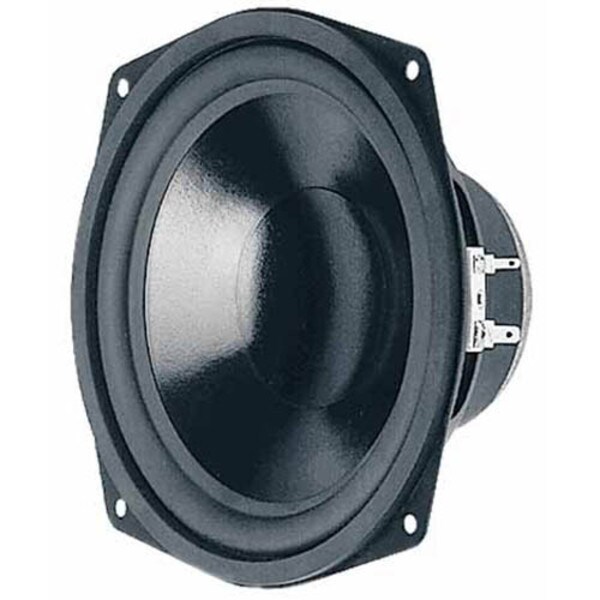

Visaton WS17E-4 6-1/2" Treated Paper Cone Woofer 4 Ohm

2 Questions, 2 Answers or
Visaton
Part #292-680

Visaton WS17E-4 6-1/2" Treated Paper Cone Woofer 4 Ohm

Visaton
Part #292-680
Model: WS17E-4
2 Questions, 2 Answers or

The Visaton WS17E-4 is a 4 ohm speaker with a coated paper cone, elastic rubber surround and inverse dust-cap. Due to the balanced frequency response this driver is suitable as low-midrange driver for 4-way speaker systems and sealed cabinets.

Key Features
  • Designed to deliver powerful sound output, perfect for applications requiring a more robust audio performance.
  • Smooth response from 45Hz to 7000Hz
  • 88dB Sensitivity
  • Perfect for use in sealed cabinets
  • Suitable as a low-mid driver for 4-way speakers
  • For a quote on a large qty order, please press "Request Large Qty Quote"
Similar items that may interest you:
Your Price: $30.23
MSRP: $33.74
Save $3.51 (10%)
Bulk Pricing
Quantity:Qty: 1-9 $30.23/ea
Quantity:Qty: 10+$27.81/ea

Back-Ordered

Advertised price subject to change due to tariff uncertainty
Alert Me When Available
Free Shipping available on orders over $99.00 in the US. Details

Overview

Visaton WS17E-4 6-1/2" Treated Paper Cone Woofer 4 Ohm

The Visaton WS17E-4, a 6.5" variant in the Visaton WS series, is a powerful speaker designed to deliver superior audio quality. This robust model offers a wide frequency range, ensuring balanced and detailed sound reproduction. Its larger size allows it to produce deeper bass and greater output, making it ideal for applications that require powerful sound performance.

Product Details

BrandVisaton
ModelWS17E-4
Part Number292-680
Unit of MeasureEach
Weight2.15

Product Specifications

Nominal Diameter6-1/2"
Power Handling (RMS)60 Watts
Power Handling (MAX)90 Watts
Impedance
Frequency Response45 to 7,000Hz
Voice Coil Diameter0.98"

Thiele-Small Parameters

Resonant Frequency (Fs)45Hz

Materials of Construction

Cone MaterialTreated Paper
Surround MaterialRubber

Mounting Information

Overall Outside Diameter7.40"
Baffle Cutout Diameter5.90"
Depth3.11"
# Mounting Holes4
