NEW Visaton W150X4 5.9" Woofer 4 Ohm

VisatonPart # 292-7843
Model: W 150 X
2 Questions, 2 Answers or

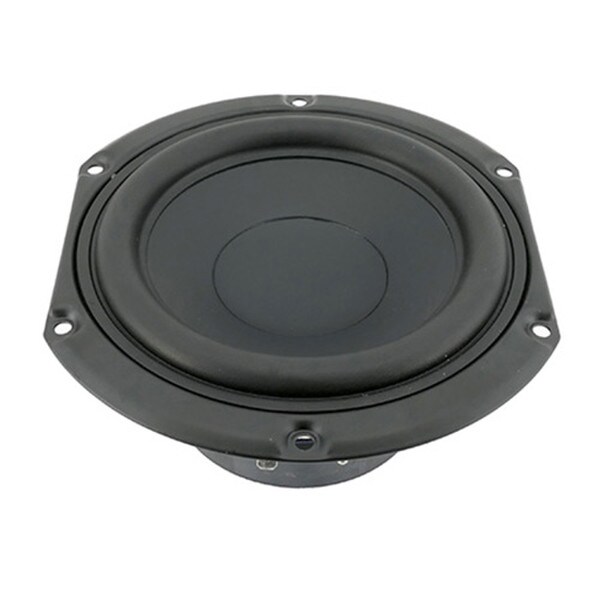

The Visaton W150X4 is a 15 cm (5.9") woofer featuring a robust polypropylene membrane, designed to deliver powerful bass performance even in compact subwoofer applications.

Key Features

  • Rated power handling of 50 W suitable for various audio applications
  • Resonance frequency at 50 Hz enhancing low-frequency performance
  • Mean sound pressure level of 80 dB (1 W/1 m) for efficient audio output
  • Frequency response from 32 Hz to 1,400 Hz for deep bass reproduction
  • Temperature range from -20 to 70 °C ensuring reliability in diverse environments
  • For a quote on a large qty order, please press "Request Large Qty Quote"
NEW $43.98
Bulk Pricing
Quantity:Qty: 1-9 $43.98/ea
Quantity:Qty: 10+ $42.33/ea
In Stock
Get Notified When Available

We'll send you an email when Visaton W150X4 5.9" Woofer 4 Ohm is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Visaton W150X4 5.9" Woofer 4 Ohm

The W150X4's combination of a sturdy polypropylene cone, wide frequency response, and compact size makes it an excellent choice for high-quality bass reproduction in both home and automotive audio systems.

Technical Data

  • Rated power: 50 W
  • Nominal impedance Z: 4 Ohm
  • Frequency response: 32-1400 Hz
  • Mean sound pressure level: 80 dB (1 W/1 m)
  • Resonance frequency fs: 50 Hz
  • Net weight: 0.92 kg
  • Connections: 5.2 x 0.5 mm (+)/2.8 x 0.5 mm (–)
  • Temperature range: -20 ... 70 °C

Product Details

BrandVisaton
ModelW 150 X
Part Number292-7843
Unit of MeasureEach
Weight4.5

Product Specifications

Nominal Diameter6"
Power Handling (RMS)50 Watts
Impedance
Frequency Response32 to 1400Hz
Sensitivity80dB 2.83V/1m

Thiele-Small Parameters

Resonant Frequency (Fs)47.24Hz
DC Resistance (Re)3.05Ω
Mechanical Q (Qms)3.87
Electromagnetic Q (Qes)0.41
Diaphragm Mass Inc. Airload (Mms)17.41g
Surface Area of Cone (Sd)83.32cm²

Mounting Information

# Mounting Holes6
