NEW Visaton TIW250XS8 10" High-End Woofer 8 Ohm

VisatonPart # 292-7810
Model: TIW 250 XS
1 Question, 1 Answer or

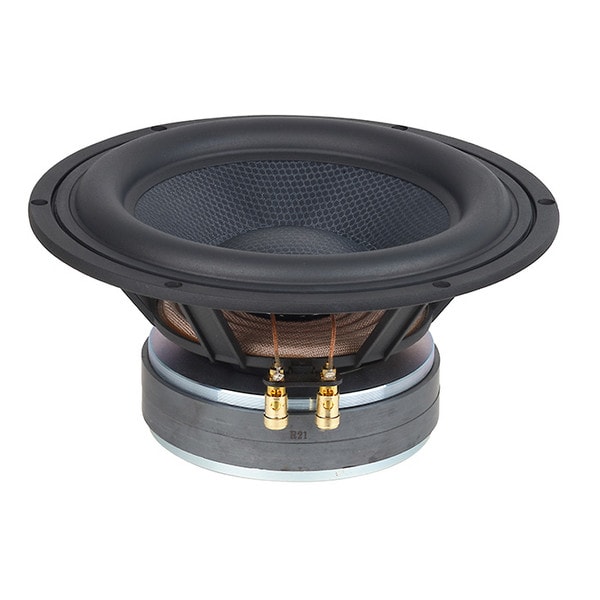

The Visaton TIW 250 XS is a high-end 25 cm (10") woofer engineered for exceptional low-frequency performance, making it ideal for high-fidelity audio systems and subwoofer applications. Its advanced design features, including an extra-wide elastic surround, long voice coil, and substantial magnet system, enable extremely long excursion, resulting in deep and accurate bass reproduction.

Key Features

  • Frequency response up to 3,000 Hz for wide-range sound reproduction
  • Mean sound pressure level of 89 dB (1 W/1 m) for efficient output
  • Resonance frequency at 33 Hz for deep bass performance
  • Excursion limit of ±14 mm allowing significant diaphragm movement
  • Effective piston area of 314 cm² contributing to substantial sound pressure
  • For a quote on a large qty order, please press "Request Large Qty Quote"
NEW $296.98
+ FREE SHIPPING
Bulk Pricing
Quantity:Qty: 1-9 $296.98/ea
Quantity:Qty: 10+ $291.04/ea
In Stock
Get Notified When Available

We'll send you an email when Visaton TIW250XS8 10" High-End Woofer 8 Ohm is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Visaton TIW250XS8 10" High-End Woofer 8 Ohm

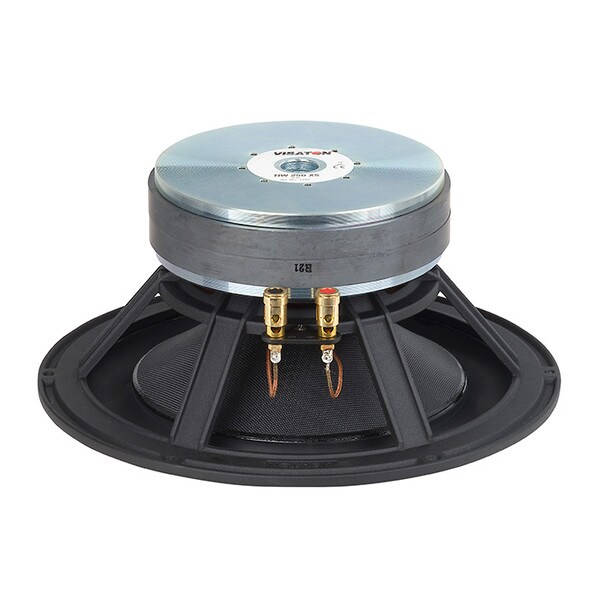

The TIW 250 XS incorporates multiple venting mechanisms, including a pole piece hole, holes in the pole piece plate, and cutouts in the aluminum die-cast basket, minimizing losses and flow noise for enhanced efficiency. Its diaphragm features a sandwich construction made of fiberglass and polyester fabric layers, providing rigidity and low resonance for accurate sound reproduction. The driver is suitable for various cabinet designs, with manufacturer recommended volumes ranging from 30 liters to 70 liters in both closed and bass reflex configurations, achieving tuning frequencies between 32 Hz and 42 Hz. This versatility makes the TIW 250 XS an excellent choice for audiophiles and speaker builders seeking superior low-frequency performance in their custom speaker designs.

Technical Data

  • Rated power: 200 W
  • Maximum power: 300 W
  • Nominal impedance Z: 8 Ohm
  • Frequency response: fu–3000 Hz
    (fu: Lower cut-off frequency depending on cabinet)
  • Mean sound pressure level: 89 dB (1 W/1 m)
  • Opening angle (-6 dB): 48°/4000 Hz
  • Excursion limit: ±14 mm
  • Resonance frequency fs: 33 Hz
  • Magnetic induction: 1.3 T
  • Magnetic flux: 1600 µWb
  • Height of front pole-plate: 8 mm
  • Voice coil diameter: 50 mm
  • Height of winding: 25 mm
  • Cutout diameter: 190 mm
  • Net weight: 3.5 kg
  • D.C. resistance Rdc: 6 Ohm
  • Mechanical Q factor Qms: 5.19
  • Electrical Q factor Qes: 0.5
  • Total Q factor Qts: 0.46
  • Equivalent Volume Vas: 51.5 l
  • Effective piston area Sd: 206 cm²
  • Dynamically moved mass Mms: 33 g
  • Force factor Bxl: 8.51 Tm
  • Inductance of the voice coil L: 1.6 mH
  • Connections: 4.8 x 0.8 mm (+)/2.8 x 0.8 mm (-)

Product Details

BrandVisaton
ModelTIW 250 XS
Part Number292-7810
Unit of MeasureEach
Weight14.4

Product Specifications

Nominal Diameter10"
Power Handling (RMS)200 Watts
Power Handling (MAX)300 Watts
Impedance8Ω
Sensitivity89dB 2.83V/1m
Voice Coil Diameter1.97"

Thiele-Small Parameters

Resonant Frequency (Fs)33Hz
DC Resistance (Re)5.6Ω
Voice Coil Inductance (Le)1.7mH
Mechanical Q (Qms)5.21
Electromagnetic Q (Qes)0.35
Total Q (Qts)0.33
Compliance Equivalent Volume (Vas)2.33ft³
BL Product (BL)13T·m
Diaphragm Mass Inc. Airload (Mms)49g
Maximum Linear Excursion (Xmax)14mm
Surface Area of Cone (Sd)314cm²

Materials of Construction

Basket / Frame MaterialCast Aluminum

Mounting Information

# Mounting Holes6
