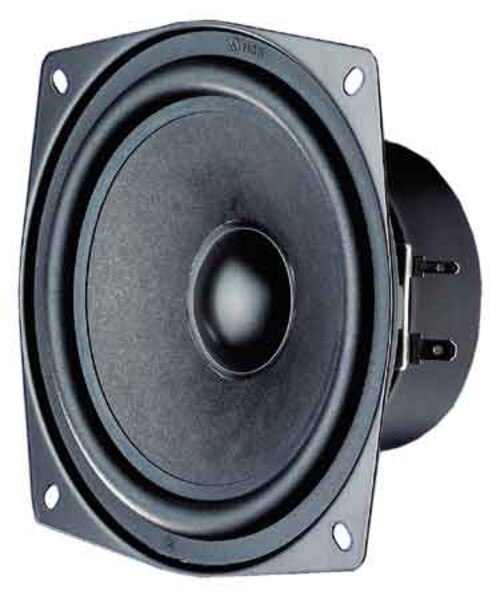

Visaton SC13-8 5" Paper Cone Full-Range Driver Shielded 8 Ohm

2 Questions, 2 Answers or
Visaton
Part #292-764

Visaton SC13-8 5" Paper Cone Full-Range Driver Shielded 8 Ohm

Visaton
Part #292-764
Model: SC13-8
2 Questions, 2 Answers or
The Visaton SC13-8 is a magnetically shielded 13 cm (5") HiFi fullrange driver with a cellulose cone and rubber surround. It can double as a low-midrange driver, offering a balanced frequency response. Especially suitable for 2-way speakers for multimedia and surround systems when used with the shielded tweeter SC 10 N - 8 Ohm.
Key Features
  • Rated power of 40W, with a maximum power of 60W
  • Broad temperature range operation from -25 to 70 °C
  • Magnetic shielding allows usage near electronic equipment without interference
  • For a quote on a large qty order, please press "Request Large Qty Quote"
Your Price: $34.08
MSRP: $38.70
Save $4.62 (12%)
Bulk Pricing
Quantity:Qty: 1-9 $34.08/ea
Quantity:Qty: 10+$31.35/ea
Order in the next 0 hr 56 min to ship today. Details

7In Stock

Free Shipping available on orders over $99.00 in the US. Details

Overview

Visaton SC13-8 5" Paper Cone Full-Range Driver Shielded 8 Ohm

The Visaton SC13-8 is a magnetically shielded 5" HiFi fullrange driver. Designed with a cellulose cone and rubber surround, this driver also doubles as a low-midrange driver, making it a versatile addition to any sound system. The SC13-8 shines when it comes to frequency response. It's balanced and adjustable depending on the cabinet, making it particularly suitable for 2-way speakers in multimedia and surround systems. With a rated power of 40W and a maximum power of 60W, the SC13-8 is capable of delivering potent sound without distortion. It operates within a broad temperature range of -25 to 70 °C, ensuring reliable performance under various conditions. Whether you're setting up a multimedia system, video monitoring screens, TVs, or computer terminals, the Visaton SC13-8 is an excellent choice. Its advanced features and robust performance promise to enhance your audio experience.

Product Details

BrandVisaton
ModelSC13-8
Part Number292-764
Unit of MeasureEach
Weight1.5

Product Specifications

Nominal Diameter5"
Power Handling (RMS)40 Watts
Power Handling (MAX)60 Watts
Impedance
Frequency Response78 to 13,000Hz
Sensitivity90dB 2.83V/1m
Voice Coil Diameter0.79"

Thiele-Small Parameters

Resonant Frequency (Fs)78Hz

Materials of Construction

Surround MaterialRubber

Mounting Information

Overall Outside Diameter5.16"
Baffle Cutout Diameter4.45"
Depth2.44"
# Mounting Holes4
