  • Visaton R10ND8 4" Full-Range Speaker 8 Ohm

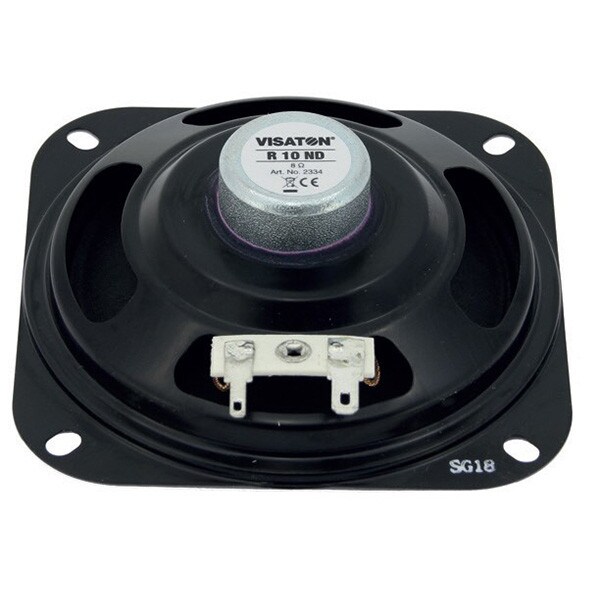

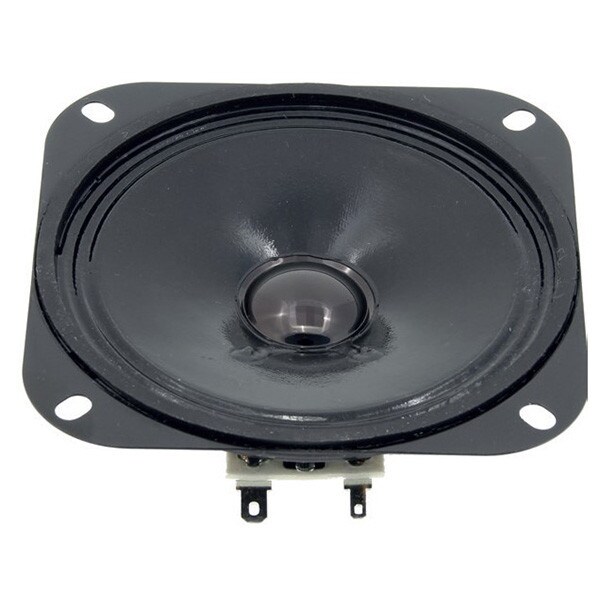

NEW Visaton R10ND8 4" Full-Range Speaker 8 Ohm

VisatonPart # 292-7826
Model: R 10 ND

The Visaton R10ND8 is a compact 10 cm (4") full-range speaker designed for high efficiency and balanced sound reproduction. Its lightweight neodymium magnet and water-repellent cone make it a versatile solution for applications such as public address systems, public transport installations, and electronic devices requiring reliable audio performance. With durable construction and excellent sound clarity, it performs well in demanding environments.

Key Features

  • Lightweight neodymium magnet for reduced weight and easy installation
  • High efficiency with a mean sound pressure level of 92 dB for robust audio output
  • Water-repellent cone and rubber gasket for durability in moisture-prone environments
  • IP54 protection rating for resistance to dust and splashing water in sealed enclosures
  • Operating temperature range from −40 to 70 °C for reliable performance in diverse climates
  • Balanced frequency response from 120 Hz to 16,000 Hz for clear and detailed sound
  • For a quote on a large qty order, please press "Request Large Qty Quote"
NEW $32.44
Bulk Pricing
Quantity:Qty: 1-9 $32.44/ea
Quantity:Qty: 10+ $31.88/ea
In Stock
Get Notified When Available

We'll send you an email when Visaton R10ND8 4" Full-Range Speaker 8 Ohm is back in stock or available for preorder.

Order in the next 11 hr 12 min to ship today. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Visaton R10ND8 4" Full-Range Speaker 8 Ohm

The R10ND8 Ohm is engineered for applications where compact, lightweight drivers are essential without compromising sound quality. Its high efficiency ensures strong output even in low-power systems, while the magnetically shielded design prevents interference with sensitive devices nearby. Suitable for public transportation systems, outdoor installations, or as a control speaker, it delivers clear and consistent audio performance in challenging conditions.

Technical Data

  • Rated power: 20 W
  • Nominal impedance Z: 8 Ohm
  • Frequency response: 120–16000 Hz
  • Mean sound pressure level: 92 dB (1 W/1 m)
  • Resonance frequency fs: 165 Hz
  • Net weight: 0.113 kg
  • Connections: 4.8 x 0.8 mm (+)/2.8 x 0.8 mm (-)
  • Protective system: IP 54
  • Temperature range: −40 - 70 °C

Product Details

BrandVisaton
ModelR 10 ND
Part Number292-7826
Unit of MeasureEach
Weight0.13

Product Specifications

Nominal Diameter4"
Power Handling (RMS)20 Watts
Power Handling (MAX)40 Watts
Impedance
Frequency Response120 to 16000Hz
Sensitivity92dB 2.83V/1m

Thiele-Small Parameters

Resonant Frequency (Fs)165Hz

Mounting Information

# Mounting Holes4
