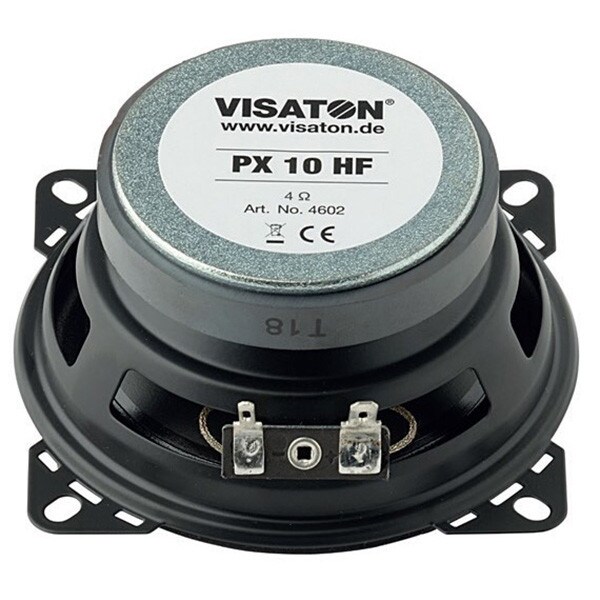

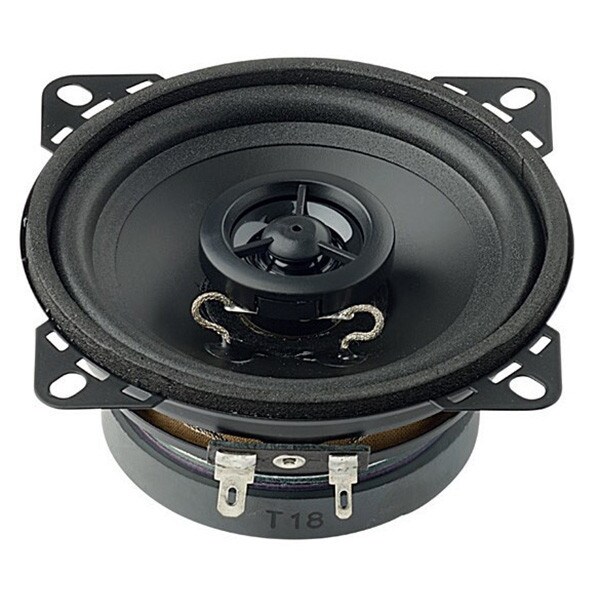

  • Visaton PX10HF4 4" 2-Way Coaxial Speaker 4 Ohm

NEW Visaton PX10HF4 4" 2-Way Coaxial Speaker 4 Ohm

VisatonPart # 292-7835
Model: PX 10 HF
Read 1 Review or

The Visaton PX10HF4 is a 10 cm (4") 2-way coaxial loudspeaker designed for straightforward installation in vehicles and mobile homes.

Key Features

  • Rated power handling of 20 W (maximum 30 W) suitable for various audio applications
  • Mean sound pressure level of 85 dB (1 W/1 m) for efficient audio output
  • Frequency response from 70 Hz to 13,000 Hz for balanced sound reproduction
  • Waterproof polypropylene (PP) cone for durability in moist environments
  • For a quote on a large qty order, please press "Request Large Qty Quote"
NEW $21.98
Bulk Pricing
Quantity:Qty: 1-9 $21.98/ea
Quantity:Qty: 10+ $19.78/ea
In Stock
Get Notified When Available

We'll send you an email when Visaton PX10HF4 4" 2-Way Coaxial Speaker 4 Ohm is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Visaton PX10HF4 4" 2-Way Coaxial Speaker 4 Ohm

The PX10HF4's combination of waterproof construction, integrated tweeter, and standard sizing makes it an excellent choice for enhancing audio systems in vehicles and mobile homes.

Technical Data

  • Rated power: 20 W
  • Maximum power: 30 W
  • Nominal impedance Z: 4 Ohm
  • Frequency response: 70–13000 Hz
  • Mean sound pressure level: 85 dB (2.83 V/1 m)
  • Opening angle (-6 dB): 93°/4000 Hz
  • Resonance frequency fs: 136 Hz
  • Height of front pole-plate: 3 mm
  • Voice coil diameter: 20 mm
  • Height of winding: 5.2 mm
  • Cutout diameter: 92 mm
  • Net weight: 0.385 kg
  • Connections: 4.8 x 0.8 mm (+)/2.8 x 0.8 mm (-)
  • Temperature range: –25 - 70 °C

Product Details

BrandVisaton
ModelPX 10 HF
Part Number292-7835
Unit of MeasureEach
Weight0.85

Product Specifications

Nominal Diameter4"
Speaker Size4"
Speaker Type2-Way
Power Handling (RMS)20 Watts
Power Handling (MAX)30 Watts
Impedance
Frequency Response70 to 13000Hz
Sensitivity85dB 2.83V/1m
Voice Coil Diameter0.79"

Thiele-Small Parameters

Resonant Frequency (Fs)136Hz

Mounting Information

# Mounting Holes4
