  • Visaton PL 5 RV 1-5/8" Full Range Speaker 4 Ohm

Visaton PL 5 RV 1-5/8" Full Range Speaker 4 Ohm

VisatonPart # 292-636
Model: PL 5 RV - 4
The PL 5 RV 1-5/8" self-contained full-range speaker includes a small housing and threaded mounting ring for simple and clean installation in surfaces up to 1/2" thick.

Key Features

  • Ultra-clean installation requires no screws
  • Integrated grill protects the cone from damage
  • 3 foot long speaker leads included
  • Includes passive crossover, limiting response to 460 to 20,000 Hz
  • For a quote on a large qty order, please press "Request Large Qty Quote"
Your Price: $31.36
MSRP: $37.99
Save $6.63 (17%)
Bulk Pricing
Quantity:Qty: 1-9 $31.36/ea
Quantity:Qty: 10-24 $30.43/ea
Quantity:Qty: 25+ $29.12/ea
Only 1 In Stock More due any day
Get Notified When Available

We'll send you an email when Visaton PL 5 RV 1-5/8" Full Range Speaker 4 Ohm is back in stock or available for preorder.

Order in the next 6 hr 47 min to ship today. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Visaton PL 5 RV 1-5/8" Full Range Speaker 4 Ohm

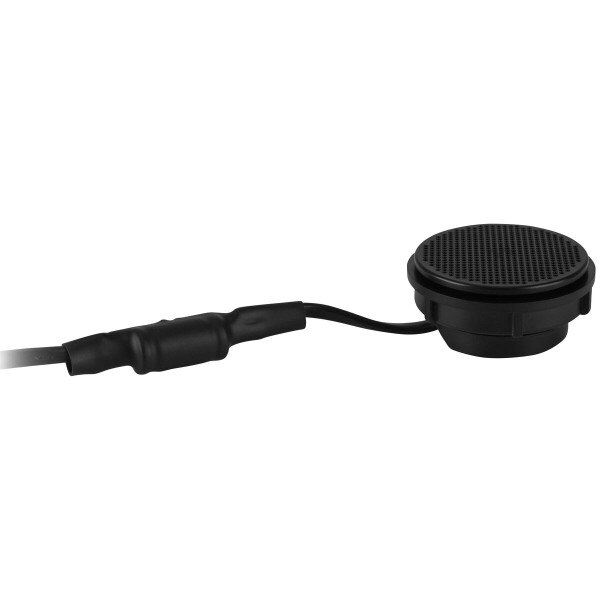

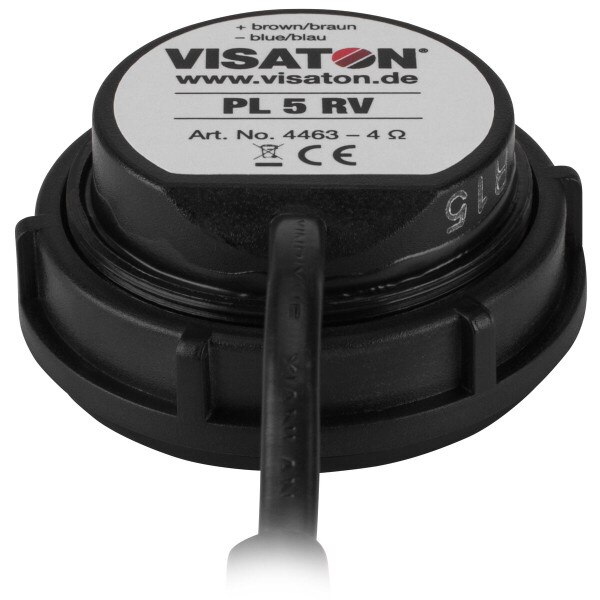

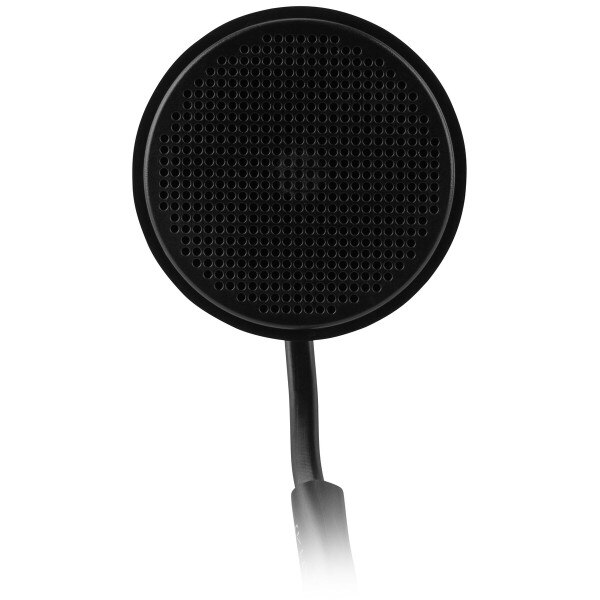

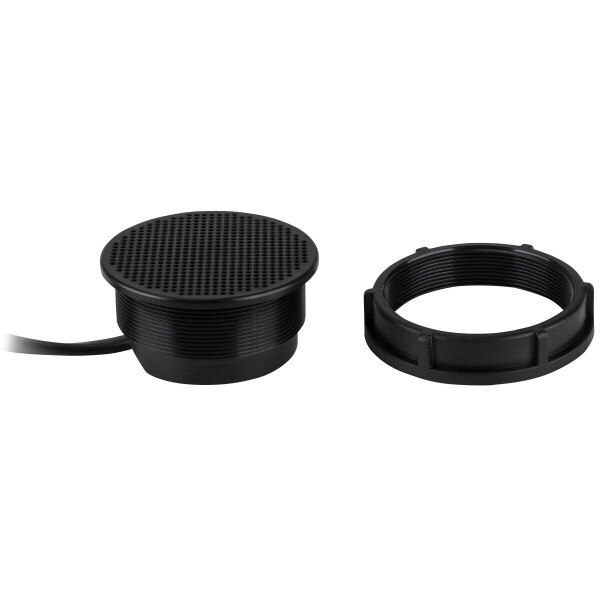

Viaston's PL 5 RV 4 ohm 1-5/8" full-range driver uses a unique housing and mounting ring that allows it to be securely installed in panels up to 1/2" thick without screws or other fasteners for an extremely clean look. Simply set this driver in a 1.75" diameter hole and attach the mounting ring to the back. This driver includes 3 ft speaker wire for easy connection and an integrated high pass crossover (40 uF capacitor) for protection and increased power handling.

Product Details

BrandVisaton
ModelPL 5 RV - 4
Part Number292-636
Unit of MeasureEach
Weight0.19

Product Specifications

Nominal Diameter1-9/16"
Power Handling (RMS)10 Watts
Power Handling (MAX)20 Watts
Impedance
Frequency Response460 to 20,000Hz
Sensitivity79dB 2.83V/1m

Thiele-Small Parameters

Resonant Frequency (Fs)620Hz

Materials of Construction

Basket / Frame MaterialPolymer

Mounting Information

Overall Outside Diameter1.96"
Baffle Cutout Diameter1.71"
Depth0.95"
