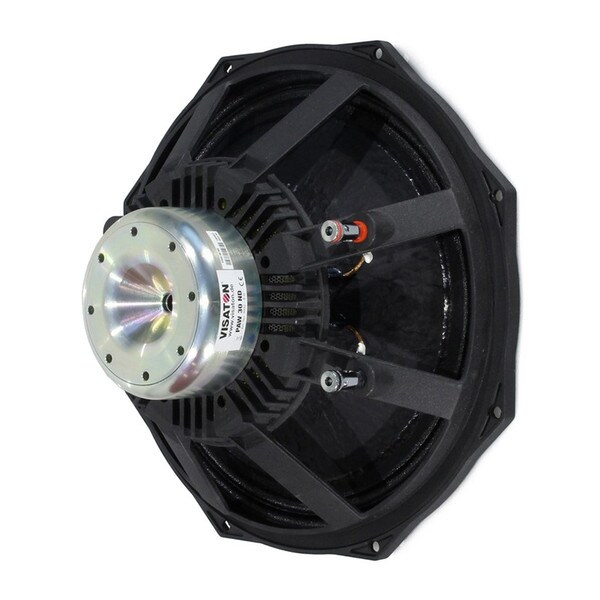

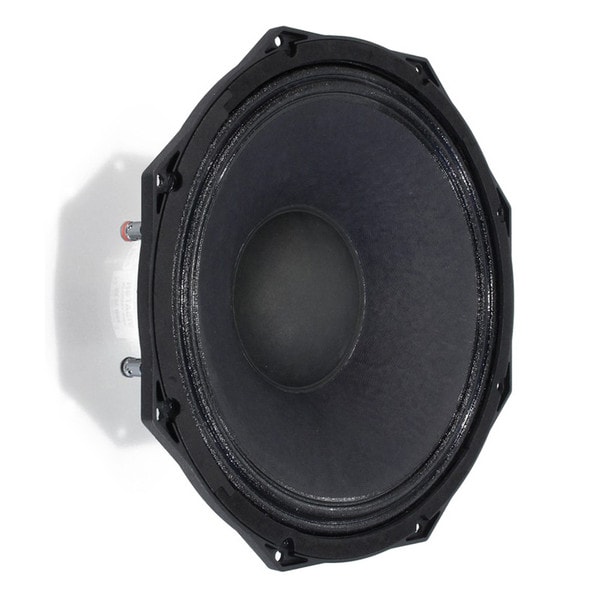

NEW Visaton PAW30ND8 12" Bass Midrange Driver 8 Ohm

Visaton
Part #292-7832

NEW Visaton PAW30ND8 12" Bass Midrange Driver 8 Ohm

Visaton
Part #292-7832
Model: PAW 30 ND

The Visaton PAW30ND8 is a 30 cm (12") bass-midrange driver engineered for high-power public address (PA) applications, delivering robust and dynamic sound reproduction. Its advanced design and high-efficiency construction make it a reliable choice for demanding professional audio setups.

Key Features
  • Octagonal die-cast basket for enhanced structural rigidity
  • Paper membrane for natural and detailed sound characteristics
  • Rated power handling of 400 W for consistent performance in professional applications
  • Neodymium magnet for strong magnetic flux in a lightweight design
  • Vented spider and air gap for efficient cooling during high-power use
  • 75 mm voice coil for exceptional power handling
  • For a quote on a large qty order, please press "Request Large Qty Quote"
NEW $314.58
+ FREE SHIPPING
Bulk Pricing
Quantity:Qty: 1-9 $314.58/ea
Quantity:Qty: 10+$307.98/ea
Ships next business day. Details

In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Visaton PAW30ND8 12" Bass Midrange Driver 8 Ohm

The PAW30ND8 combines high power handling, advanced cooling mechanisms, and robust construction to meet the rigorous demands of professional PA systems. Its wide frequency response and durable materials ensure reliable and high-quality bass-midrange reproduction, making it an excellent choice for large-scale audio installations.

Technical Data

  • Cm: 0.19 mm/N
  • Rated power: 400 W
  • Maximum power: 600 W
  • Nominal impedance Z: 8 Ohm
  • Frequency response: fu–5500 Hz
    (fu: Lower cut-off frequency depending on cabinet)
  • Mean sound pressure level: 99 dB (2.83 V/1 m)
  • Maximum linear displacement: ±4 mm
  • Excursion limit: ±8 mm
  • Resonance frequency fs: 45 Hz
  • Height of front pole-plate: 8 mm
  • Voice coil diameter: 75 mm
  • Height of winding: 16 mm
  • Cutout diameter: 286 mm
  • Net weight: 3.05 kg
  • D.C. resistance Rdc: 6.1 Ohm
  • Mechanical Q factor Qms: 7.63
  • Electrical Q factor Qes: 0.37
  • Total Q factor Qts: 0.36
  • Equivalent volume Vas: 78 l
  • Effective piston area Sd: 539 cm²
  • Dynamically moved mass Mms: 69 g
  • Force factor Bxl: 17.6 Tm
  • Inductance of the voice coil L: 0.55 mH
  • Connections: Spring terminals

Product Details

BrandVisaton
ModelPAW 30 ND
Part Number292-7832
Unit of MeasureEach
Weight10

Product Specifications

Nominal Diameter12"
Power Handling (RMS)400 Watts
Power Handling (MAX)600 Watts
Impedance8Ω
Sensitivity93dB 2.83V/1m
Voice Coil Diameter2.95"

Thiele-Small Parameters

Resonant Frequency (Fs)45Hz
DC Resistance (Re)6.1Ω
Voice Coil Inductance (Le)0.55mH
Mechanical Q (Qms)7.63
Electromagnetic Q (Qes)0.37
Total Q (Qts)0.36
Compliance Equivalent Volume (Vas)2.75ft³
BL Product (BL)17.6T·m
Diaphragm Mass Inc. Airload (Mms)69g
Maximum Linear Excursion (Xmax)8mm
Surface Area of Cone (Sd)539cm²

Mounting Information

# Mounting Holes8
