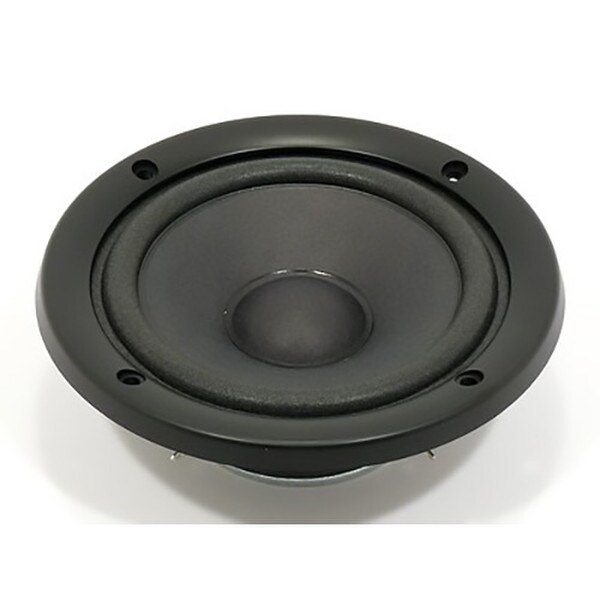

NEW Visaton MR130-8 5" Midrange Driver 8 Ohm

Read 1 Review or
Visaton
Part #292-7842

NEW Visaton MR130-8 5" Midrange Driver 8 Ohm

Visaton
Part #292-7842
Model: MR 130
Read 1 Review or

The Visaton MR130-8 is a 130 mm (5") cone midrange driver designed for the frequency band between 1,000 and 5,000 Hz. Its enclosed rear eliminates the need for a separate midrange housing, simplifying installation. This driver offers a very good price/performance ratio, making it suitable for various audio applications.

Key Features
  • Rated power handling of 80 W (maximum 100 W) suitable for various audio applications
  • Resonance frequency at 500 Hz enhancing midrange clarity
  • Frequency response from 400 Hz to 13,000 Hz for comprehensive midrange coverage
  • Mean sound pressure level of 89 dB (1 W/1 m) ensuring efficient audio output
  • Enclosed rear design eliminating the need for a separate midrange housing
  • For a quote on a large qty order, please press "Request Large Qty Quote"
NEW $27.83
Bulk Pricing
Quantity:Qty: 1-9 $27.83/ea
Quantity:Qty: 10+$26.93/ea
Order in the next 1 hr 7 min to ship today. Details

In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Visaton MR130-8 5" Midrange Driver 8 Ohm

The MR130-8's combination of an enclosed rear design, balanced frequency response, and efficient performance makes it an excellent choice for audio systems requiring reliable midrange sound reproduction.

Technical Data

  • Nominal impedance Z: 8 Ohm
  • Frequency response: 400-13000 Hz
  • Mean sound pressure level: 89 dB (1 W/1 m)
  • Opening angle (-6 dB): 79°/4000 Hz
  • Excursion limit: ±2 mm
  • Resonance frequency fs: 500 Hz
  • Magnetic induction: 0.9 T
  • Magnetic flux: 260 µWb
  • Height of front pole-plate: 4 mm
  • Voice coil diameter: 25 mm
  • Height of winding: 8 mm
  • Cutout diameter: 110 mm
  • Net weight: 0.55 kg
  • D.C. resistance Rdc: 6.8 Ohm
  • Mechanical Q factor Qms: 8.67
  • Electrical Q factor Qes: 5.85
  • Total Q factor Qts: 3.49
  • Effective piston area Sd: 70 cm²
  • Dynamically moved mass Mms: 5 g
  • Force factor Bxl: 4.3 Tm
  • Inductance of the voice coil L: 0.4 mH
  • Connections: 4.8 x 0.8 mm (+)/2.8 x 0.8 mm (-)
  • Peak power handling with high pass: 100 W (12 dB/Okt.; 800 Hz)
  • Nominal power handling with high pass: 80 W (12 dB/Okt.; 800 Hz)

Product Details

BrandVisaton
ModelMR 130
Part Number292-7842
Unit of MeasureEach
Weight4

Product Specifications

Nominal Diameter5"
Power Handling (RMS)80 Watts
Power Handling (MAX)160 Watts
Impedance8Ω
Frequency Response400 to 13000Hz
Sensitivity89dB 2.83V/1m
Voice Coil Diameter0.98"

Thiele-Small Parameters

Resonant Frequency (Fs)500Hz
DC Resistance (Re)6.8Ω
Voice Coil Inductance (Le)0.4mH
Mechanical Q (Qms)8.67
Electromagnetic Q (Qes)5.85
Total Q (Qts)3.49
Compliance Equivalent Volume (Vas)0.003ft³
BL Product (BL)4.3T·m
Diaphragm Mass Inc. Airload (Mms)5g
Maximum Linear Excursion (Xmax)2mm
Surface Area of Cone (Sd)70cm²

Mounting Information

# Mounting Holes4
