  • Visaton K64WP-50 2-1/2" Waterproof Full-Range Driver with Plastic Diaphragm 50 Ohm

CLEARANCE Visaton K64WP-50 2-1/2" Waterproof Full-Range Driver with Plastic Diaphragm 50 Ohm

VisatonPart # 292-716
Model: K64WP-50

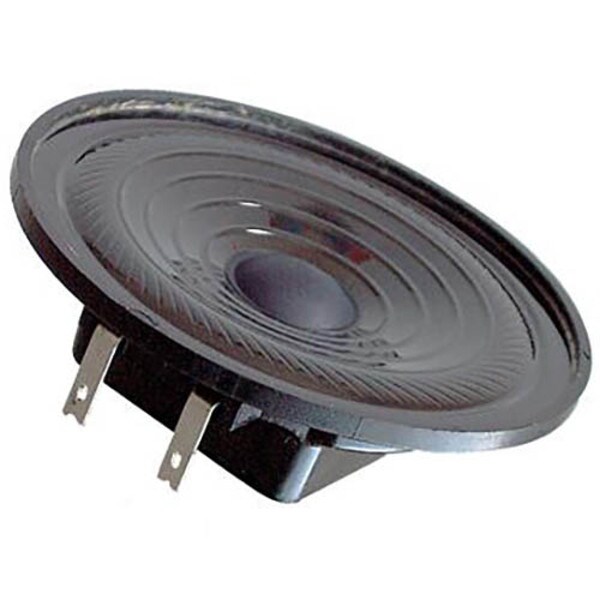

The Visaton K64WP-50 is a 2.5" full-range speaker. Its design incorporates a plastic basket and diaphragm, making it suitable for outdoor applications and high humidity environments.

Key Features

  • Rated power of 2W and maximum power of 3W
  • Frequency response range of 200–15000 Hz
  • Temperature range of -40 to 80 °C
  • IP65 protection class when built into a sealed enclosure
  • Designed for outdoor use and high humidity conditions
  • For a quote on a large qty order, please press "Request Large Qty Quote"
CLEARANCE $5.59
MSRP: $8.50
Save $2.91 (34%)
Bulk Pricing
22 In Stock
Get Notified When Available

We'll send you an email when Visaton K64WP-50 2-1/2" Waterproof Full-Range Driver with Plastic Diaphragm 50 Ohm is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Visaton K64WP-50 2-1/2" Waterproof Full-Range Driver with Plastic Diaphragm 50 Ohm

The Visaton K64WP-50 is a 2.5" full-range speaker that's been designed with a focus on durability and performance. It features a plastic basket and diaphragm that help it withstand various environmental conditions, including high humidity. This speaker provides a broad frequency response of 200–15000 Hz. It's specifically designed to perform well outdoors and in environments with high humidity levels. Its resilience to weather and UV exposure is a distinct characteristic. The K64WP-50 can function in temperatures as low as -40 °C and as high as 80 °C, making it versatile across various climates. When built into a sealed enclosure, it achieves an IP65 protection class on the front side. The Visaton K64WP-50 has a rated power of 2W and a maximum power of 3W. This compact full-range speaker provides dependable performance while handling the challenges of outdoor applications.

Product Details

BrandVisaton
ModelK64WP-50
Part Number292-716
Unit of MeasureEach
Weight0.15

Product Specifications

Nominal Diameter2-1/2"
Power Handling (RMS)2 Watts
Power Handling (MAX)3 Watts
Impedance50Ω
Frequency Response200 to 15,000Hz
Sensitivity86dB 2.83V/1m
Voice Coil Diameter0.39"

Thiele-Small Parameters

Resonant Frequency (Fs)300Hz

Mounting Information

Overall Outside Diameter2.52"
Baffle Cutout Diameter2.36"
Depth0.76"
