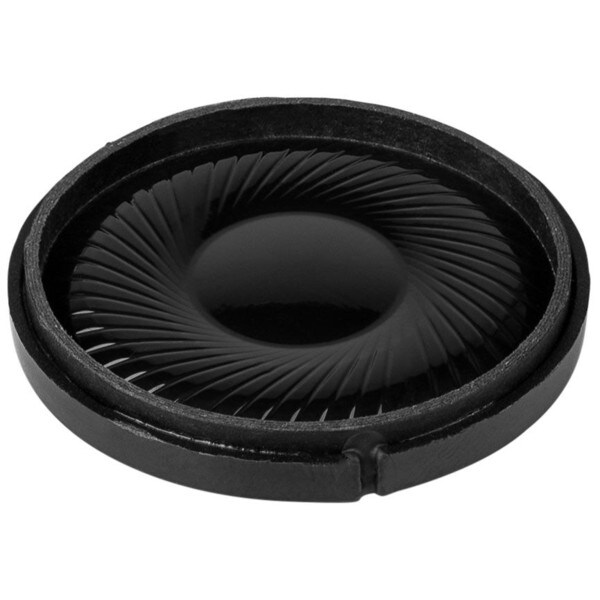

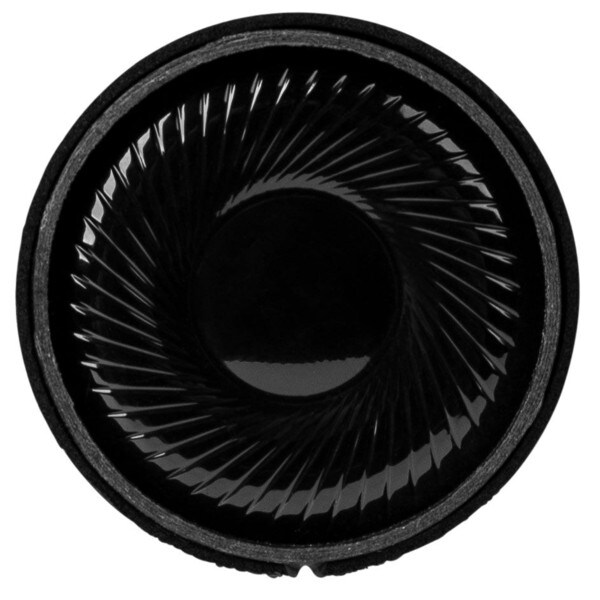

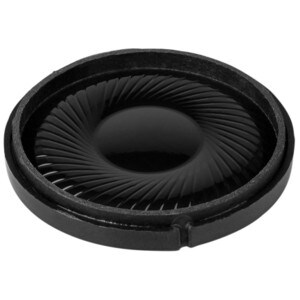

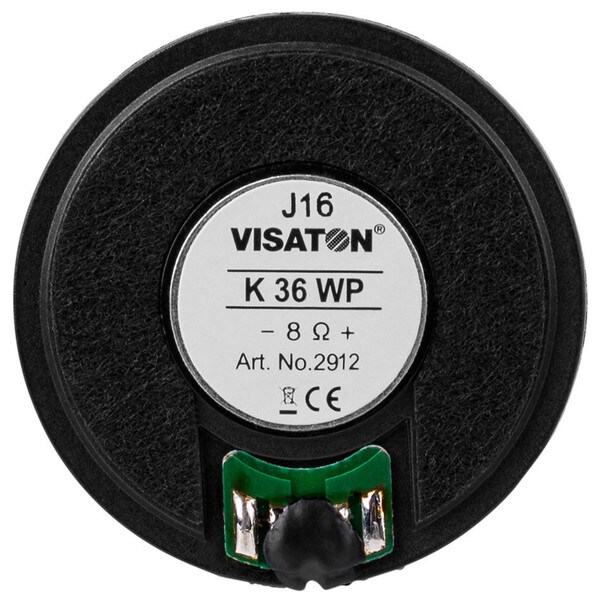

Visaton K36WP 1.4" Miniature Speaker 8 Ohm

Visaton
Part #292-623

Visaton K36WP 1.4" Miniature Speaker 8 Ohm

Visaton
Part #292-623
Model: K36WP
The Visaton K 36 WP is a versatile, IP65-rated 1.4" mini speaker with a black Mylar diaphragm and an 8 ohm impedance. Great for small device applications where vocal reproduction is needed or as a replacement speaker in headphones.
Key Features
  • Particularly well suited for outdoor applications
  • 1.25" mylar diaphragm produces wide frequency response
  • Excellent off axis response throughout the usable bandwidth
  • IP-65 rated for use in harsh conditions
  • For a quote on a large qty order, please press "Request Large Qty Quote"
Your Price: $5.30
MSRP: $6.99
Save $1.69 (24%)
Bulk Pricing
Quantity:Qty: 1-9 $5.30/ea
Quantity:Qty: 10-24 $5.14/ea
Quantity:Qty: 25+$4.92/ea
Ships next business day. Details

9In Stock

Free Shipping available on orders over $99.00 in the US. Details

Overview

Visaton K36WP 1.4" Miniature Speaker 8 Ohm

Featuring a smooth-sounding 1-1/4" Mylar diaphragm and 8 ohm impedance, Visaton's K 36 WP weatherproof driver is the perfect for low-power mini speaker applications, such as electronic toys, speakerphones, and intercoms, where risk of contact with moisture is high.

Note: The Mylar diaphragm is very fragile. To prevent damage, avoid contact with the diaphragm when handling. This driver should be installed behind a grille.

Product Details

BrandVisaton
ModelK36WP
Part Number292-623
Unit of MeasureEach
Weight0.05

Product Specifications

Nominal Diameter1"
Power Handling (RMS)1 Watts
Power Handling (MAX)2 Watts
Impedance
Frequency Response300 to 20,000Hz
Sensitivity77dB 2.83V/1m
Voice Coil Diameter0.4"

Thiele-Small Parameters

Resonant Frequency (Fs)550Hz
Maximum Linear Excursion (Xmax)0.5mm

Materials of Construction

Cone MaterialPoly / Mylar Dome
Basket / Frame MaterialPolymer
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter1.41"
Baffle Cutout Diameter1.22"
Depth0.23"
