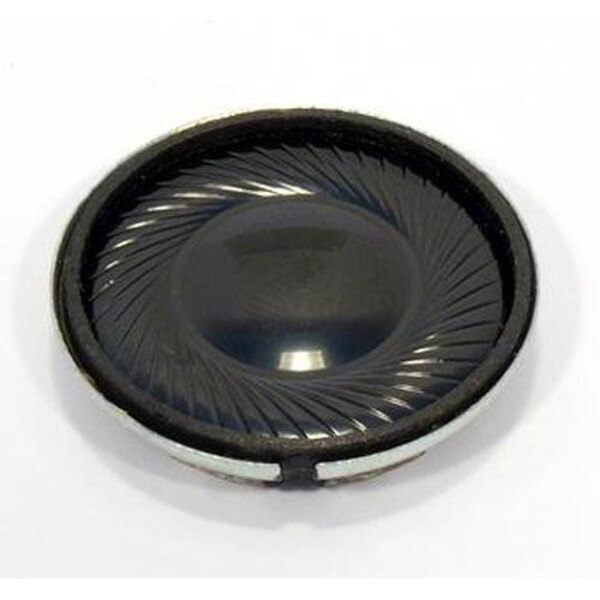

Visaton K 28 WP 1.1" Miniature Speaker 8 Ohm

VisatonPart # 292-618
Model: K 28
The Visaton K 28 WP is a versatile, IP65-rated mini speaker with a black Mylar diaphragm and an 8 ohm impedance. Great for small device applications where vocal reproduction is needed.

Key Features

  • IP65-rated for resistance to moisture
  • 1" mylar diaphragm
  • Great frequency response from 500 to 20,000 Hz
  • For a quote on a large qty order, please press "Request Large Qty Quote"
Your Price: $4.97
MSRP: $5.99
Save $1.02 (17%)
Bulk Pricing
Quantity:Qty: 1-9 $4.97/ea
Quantity:Qty: 10-24 $4.83/ea
Quantity:Qty: 25+ $4.62/ea
780 In Stock
Get Notified When Available

We'll send you an email when Visaton K 28 WP 1.1" Miniature Speaker 8 Ohm is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Visaton K 28 WP 1.1" Miniature Speaker 8 Ohm

Featuring a smooth-sounding 1" Mylar diaphragm and 8 impedance, Visaton's K 28 WP weatherproof driver is the perfect for low-power mini speaker applications, such as electronic toys, speakerphones, and intercoms, where risk of contact with moisture is high.

Note: The Mylar diaphragm is very fragile. To prevent damage, avoid contact with the diaphragm when handling. This driver should be installed behind a grille.

Product Details

BrandVisaton
ModelK 28
Part Number292-618
Unit of MeasureEach
Weight0.02

Product Specifications

Nominal Diameter1"
Power Handling (RMS)1 Watts
Power Handling (MAX)2 Watts
Impedance
Frequency Response300 to 20,000Hz
Sensitivity75dB 2.83V/1m
Voice Coil Diameter0.39"

Thiele-Small Parameters

Resonant Frequency (Fs)700Hz
Maximum Linear Excursion (Xmax)0.5mm

Materials of Construction

Cone MaterialPoly / Mylar Diaphragm

Mounting Information

Overall Outside Diameter1.10"
Baffle Cutout Diameter0.83"
Depth0.22"
