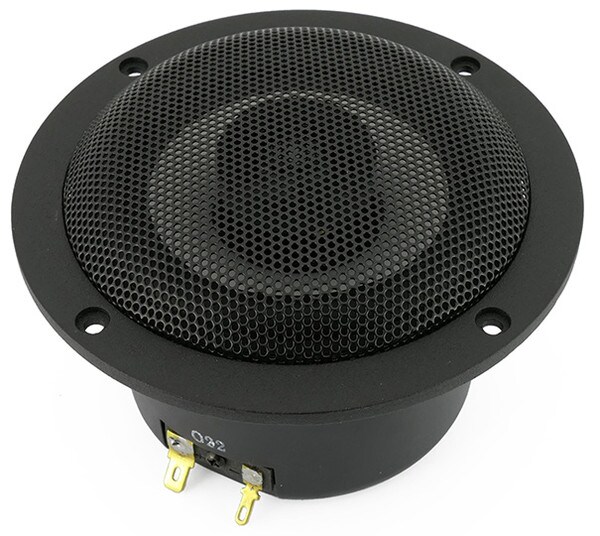

  • Visaton HX10-4 4" 2-way Aluminum Cone Coaxial Driver 4 Ohm

CLEARANCE Visaton HX10-4 4" 2-way Aluminum Cone Coaxial Driver 4 Ohm

VisatonPart # 292-742
Model: HX10-4
1 Question, 1 Answer or
The Visaton HX10-4 is a 4" high-end coaxial loudspeaker with a remarkably wide frequency range and an exceptionally balanced frequency response. Combining high-quality materials and smart design features, it ensures outstanding sound performance.

Key Features

  • 4" high-end coaxial loudspeaker with a broad frequency range of 50–22000 Hz
  • 25mm voice-coil for high power handling, with rated power of 40W and maximum power of 60W
  • Operates effectively within a temperature range of -25 °C to +70 °C
  • Integrated grille and neodymium magnet for enhanced durability

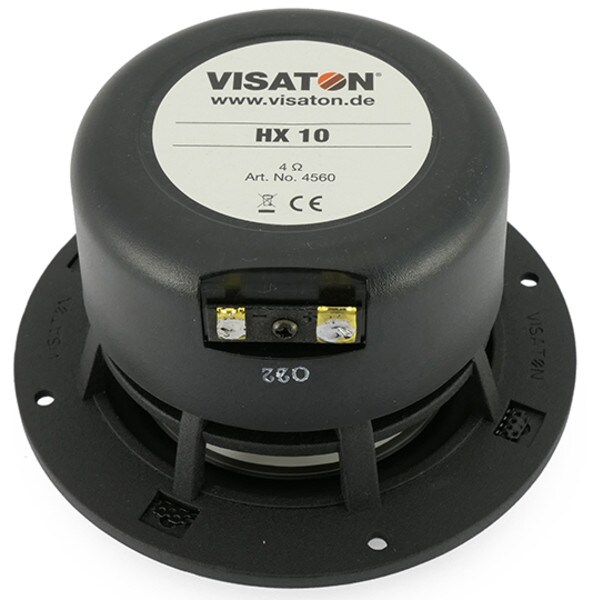

  • Compact design with crossover network mounted under a rear-side plastic cap to save space
  • For a quote on a large qty order, please press "Request Large Qty Quote"
CLEARANCE $75.00
MSRP: $123.85
Save $48.85 (39%)
Bulk Pricing
8 In Stock
Get Notified When Available

We'll send you an email when Visaton HX10-4 4" 2-way Aluminum Cone Coaxial Driver 4 Ohm is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Visaton HX10-4 4" 2-way Aluminum Cone Coaxial Driver 4 Ohm

The Visaton HX10-4 redefines what you can expect from a 4" coaxial loudspeaker. With a very wide frequency range of 50–22000 Hz and a balanced frequency response, it delivers high-quality sound that remains clear and detailed at any volume. This high-end speaker is designed with an extremely lightweight but solid aluminium cone and a high-quality tweeter, resulting in optimal sound reproduction. The integrated grille and the use of a neodymium magnet add to the speaker's robustness and longevity. Despite its compact size, the HX10-4 doesn't compromise on power. With a 25mm voice-coil, it offers a rated power of 40W and a maximum power of 60W. The crossover network is ingeniously mounted under a plastic cap on the rear side, ensuring space efficiency. Operating effectively within a temperature range of -25 °C to +70 °C, the HX10-4 is built to perform reliably under various conditions.

Product Details

BrandVisaton
ModelHX10-4
Part Number292-742
Unit of MeasureEach
Weight1.35

Product Specifications

Nominal Diameter4"
Power Handling (RMS)40 Watts
Power Handling (MAX)60 Watts
Impedance4Ω
Frequency Response50 to 22,000Hz
Sensitivity81dB 2.83V/1m
Voice Coil Diameter0.98"

Thiele-Small Parameters

Resonant Frequency (Fs)80Hz

Materials of Construction

Cone MaterialAluminum
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter4.96"
Baffle Cutout Diameter3.98"
Depth2.56"
# Mounting Holes4
