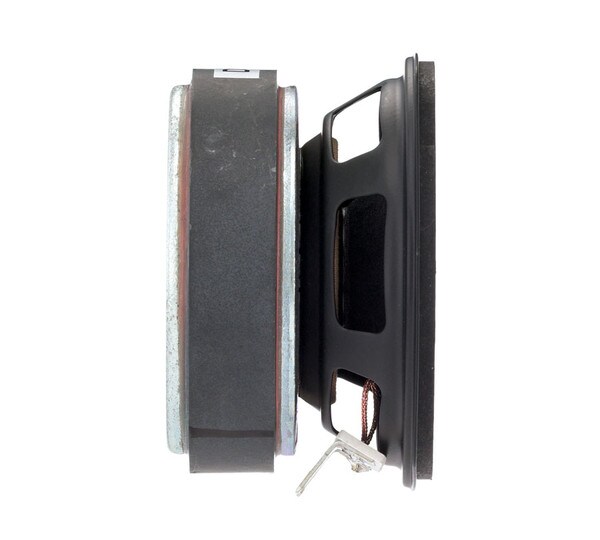

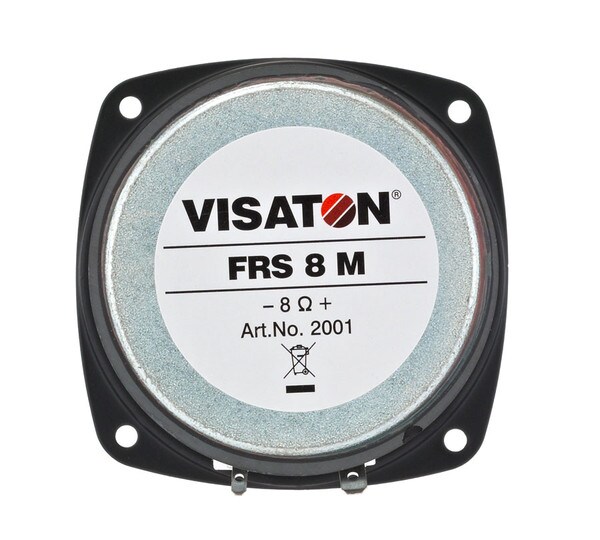

Visaton FRS8M 3.3" Paper Cone Full-Range Driver 8 Ohm

VisatonPart # 292-692
Model: FRS8M

The Visaton FRS8M is an 8 ohm 8 cm (3.3") full-range speaker offering high force factor and excellent sensitivity. It's specially designed for use in column speakers and small bass-reflex cabinets, such as in mini subwoofer/satellite systems.

Key Features

  • Full-range 3.3" speaker with high force factor and good sensitivity
  • Specially developed for use in column speakers and small bass-reflex cabinets
  • Ideal for miniature subwoofer/satellite systems
  • Moisture-resistant membrane for enhanced durability
  • Durable metal design
  • For a quote on a large qty order, please press "Request Large Qty Quote"
Your Price: $17.58
MSRP: $17.72
Save $0.14 (1%)
Bulk Pricing
Quantity:Qty: 1-9 $17.58/ea
Quantity:Qty: 10+ $16.17/ea
2 In Stock
Get Notified When Available

We'll send you an email when Visaton FRS8M 3.3" Paper Cone Full-Range Driver 8 Ohm is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Visaton FRS8M 3.3" Paper Cone Full-Range Driver 8 Ohm

Choose the FRS8M 3.3" full-range speaker from Visaton for a superior audio experience in a variety of applications. This driver is perfect for use in column speakers and mini HiFi systems, and excels in small bass-reflex cabinets, such as in miniature subwoofer/satellite systems. The FRS8M comes with a high force factor and excellent sensitivity, ensuring a powerful and accurate sound experience. It features a moisture-resistant membrane, offering enhanced durability and longevity even in challenging conditions. The durable metal design adds to its robustness, making the FRS8M a reliable choice for your audio needs.

Product Details

BrandVisaton
ModelFRS8M
Part Number292-692
Unit of MeasureEach
Weight1.1

Product Specifications

Nominal Diameter3"
Power Handling (RMS)30 Watts
Power Handling (MAX)50 Watts
Impedance
Frequency Response100 to 20,000Hz
Sensitivity88dB 2.83V/1m
Voice Coil Diameter0.79"

Thiele-Small Parameters

Resonant Frequency (Fs)125Hz
DC Resistance (Re)7.2Ω
Voice Coil Inductance (Le)0.3mH
Mechanical Q (Qms)3.24
Electromagnetic Q (Qes)0.58
Total Q (Qts)0.49
Compliance Equivalent Volume (Vas)0.388ft³
Mechanical Compliance of Suspension (Cms)0.921mm/N
BL Product (BL)4T·m
Diaphragm Mass Inc. Airload (Mms)1.8g
Maximum Linear Excursion (Xmax)2.5mm
Surface Area of Cone (Sd)29cm²

Materials of Construction

Cone MaterialPaper

Mounting Information

Overall Outside Diameter3.07"
Baffle Cutout Diameter2.95"
Depth1.85"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.0224ft³
Sealed F3200Hz
Vented Volume0.05ft³
Vented F3116Hz
