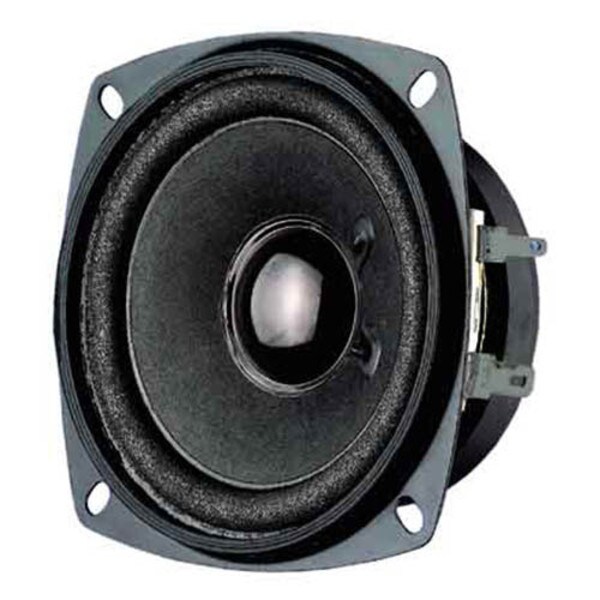

Visaton FR8-8 3.3" Paper Cone Full-Range Driver 8 Ohm

Visaton
Part #292-694

Visaton FR8-8 3.3" Paper Cone Full-Range Driver 8 Ohm

Visaton
Part #292-694
Model: FR8-8

Visaton's FR8-8 is an 8 cm (3.3") full-range speaker, well-equipped for good bass reproduction, balanced frequency response, and high efficiency. This speaker is especially suitable as a built-in speaker for music reproduction and as a driver for column speakers.

Key Features
  • Full-range 3.3" speaker Designed for use in small audio systems
  • Moisture-resistant membrane for enhanced durability
  • Balanced frequency response and high efficiency
  • High-quality performance at an excellent value
  • Features a coated paper cone, a foam surround, and a ferrite magnet for high efficiency and low distortion.
  • For a quote on a large qty order, please press "Request Large Qty Quote"
Your Price: $13.18
Bulk Pricing
Quantity:Qty: 1-9 $13.18/ea
Quantity:Qty: 10+$12.12/ea
Order in the next 0 hr 55 min to ship today. Details

27In Stock

Free Shipping available on orders over $99.00 in the US. Details

Overview

Visaton FR8-8 3.3" Paper Cone Full-Range Driver 8 Ohm

The Visaton FR-8 is a high-quality full-range driver that delivers exceptional sound performance in a compact package. With a frequency response range of 130 Hz to 20 kHz and a sensitivity of 83 dB, this driver is perfect for use in small speakers or as a midrange driver in larger systems. The FR-8 features a coated paper cone with a rubber surround and a neodymium magnet, which provides excellent power handling and durability. Its compact size and easy installation make it a great choice for DIY audio projects.

Product Details

BrandVisaton
ModelFR8-8
Part Number292-694
Unit of MeasureEach
Weight0.55

Product Specifications

Nominal Diameter3"
Power Handling (RMS)10 Watts
Power Handling (MAX)15 Watts
Impedance
Frequency Response130 to 20,000Hz
Sensitivity86dB 2.83V/1m
Voice Coil Diameter0.59"

Thiele-Small Parameters

Resonant Frequency (Fs)150Hz

Materials of Construction

Cone MaterialPaper

Mounting Information

Overall Outside Diameter3.15"
Baffle Cutout Diameter2.95"
Depth1.57"
# Mounting Holes4
